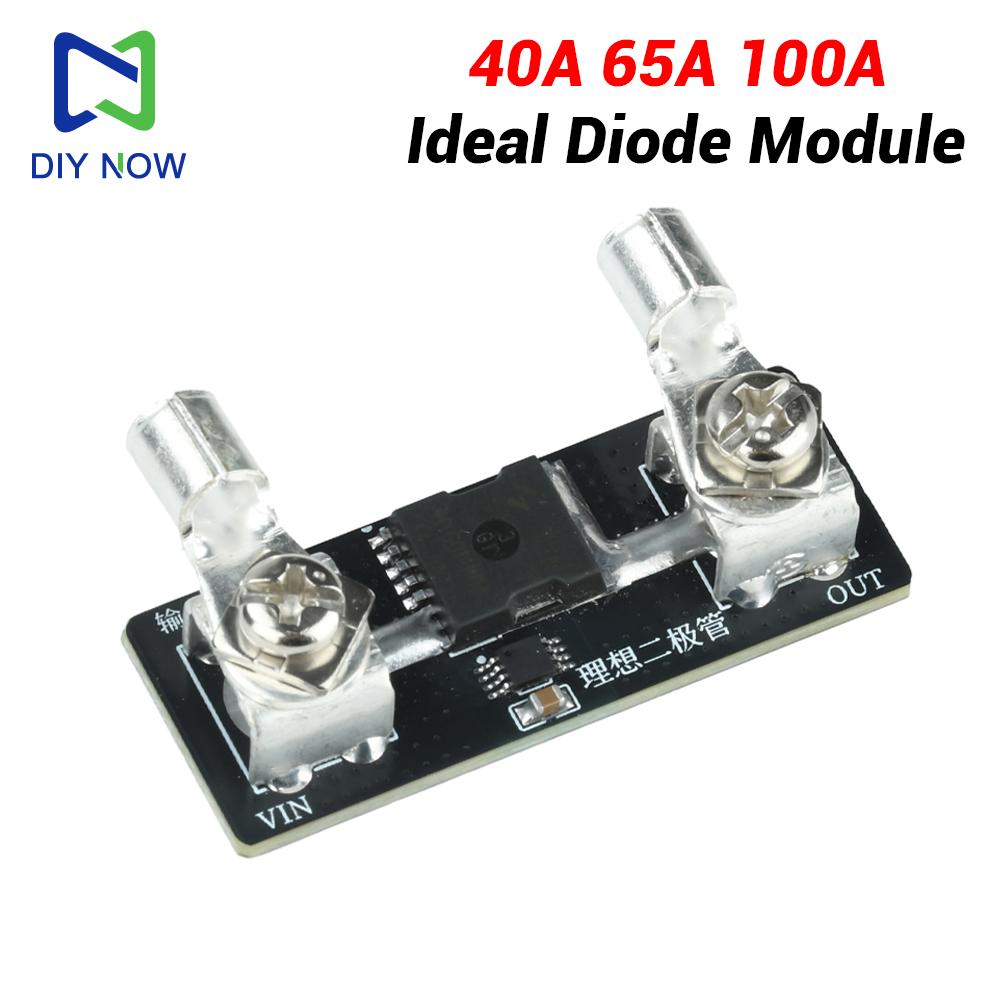

Diode Module40A 65A 100A High Current Reverse Flow Protection Ideal Diode Rectifier Board for Solar Charging Anti-Backflow

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

Product Features: 1. Employs 300A high-current MOSFETs for efficient and low-loss conduction. 2. Multiple specifications available to meet the application needs of different power scenarios, offering high flexibility. 3. No voltage limitations, strong compatibility, widely adaptable to various power systems. 4. Anti-reverse current and anti-backflow protection to prevent circuit damage from reverse current. 5. Fast response speed, millivolt-level detection for precise control. 6. Modular design with optional terminals for convenient installation and strong adaptability.

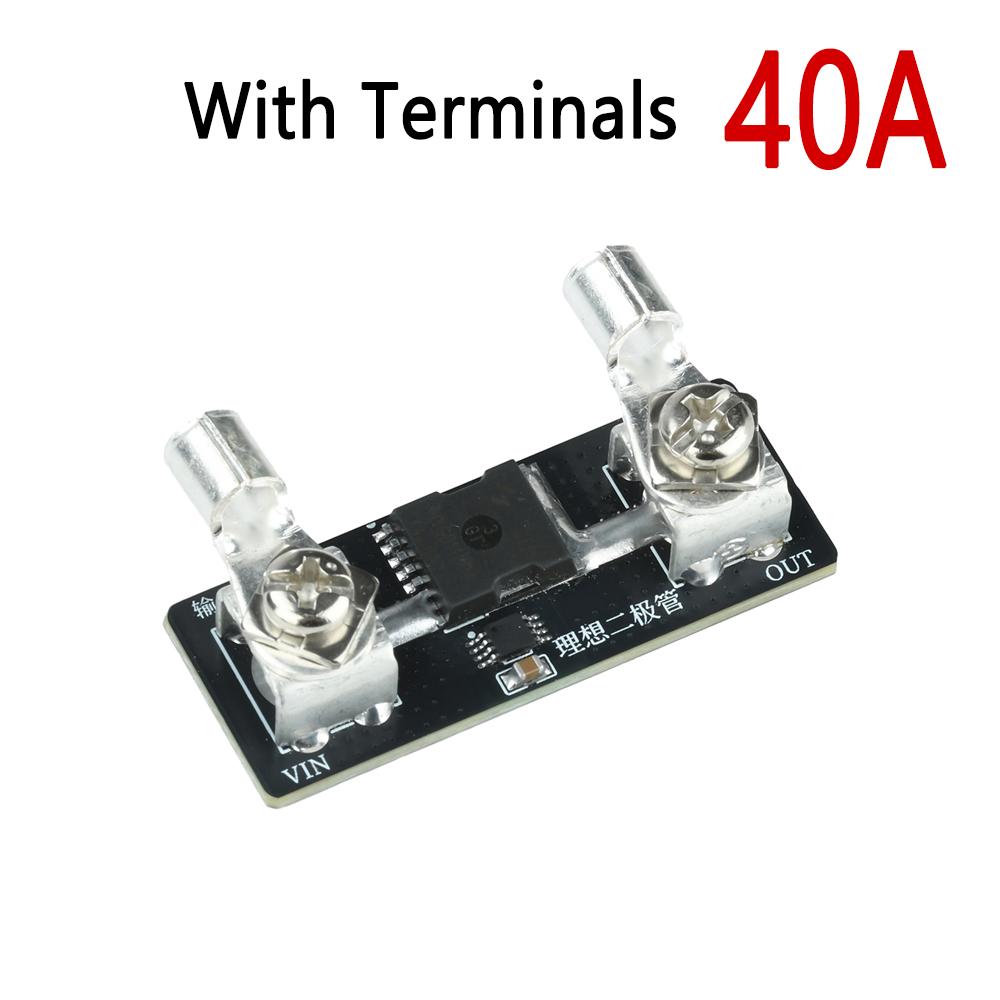

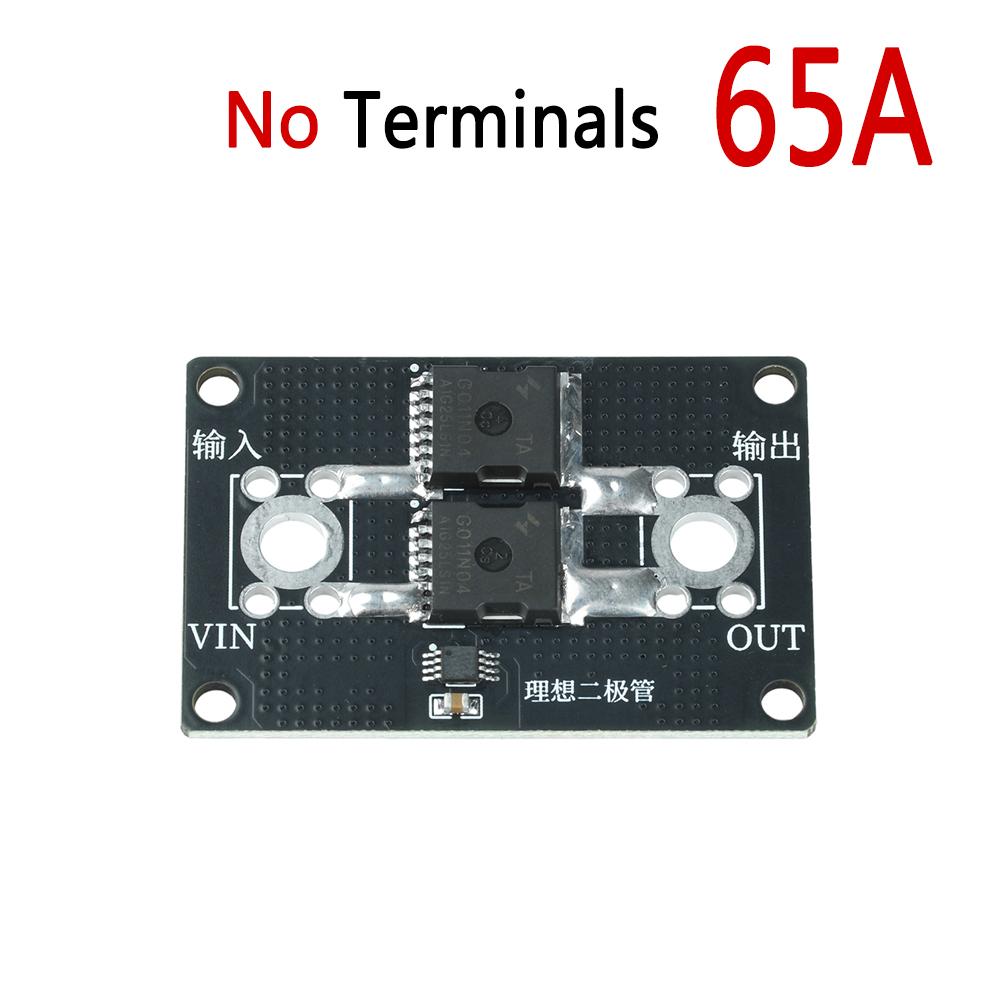

Product Description: Multiple styles available to meet different needs. Simply connect in series with the positive terminal of the circuit; no need to connect to the negative terminal. No input voltage limitations (guaranteeing reverse voltage below 40V). 300A high-current MOSFETs; one MOSFET can handle 40A current, two MOSFETs 65A current, and four MOSFETs 100A current. Fast response to reverse polarity within 2µs; input and output are equivalent to diodes. The output is immediately shut off when the detected output voltage exceeds the input voltage. The detected value is in the millivolt range.

Product Applications: 1. Replace ordinary high-current diodes, batteries, and solar panels for reverse current and reverse feed protection. 2. Ideal for reverse connection protection when connected in series at the power input.

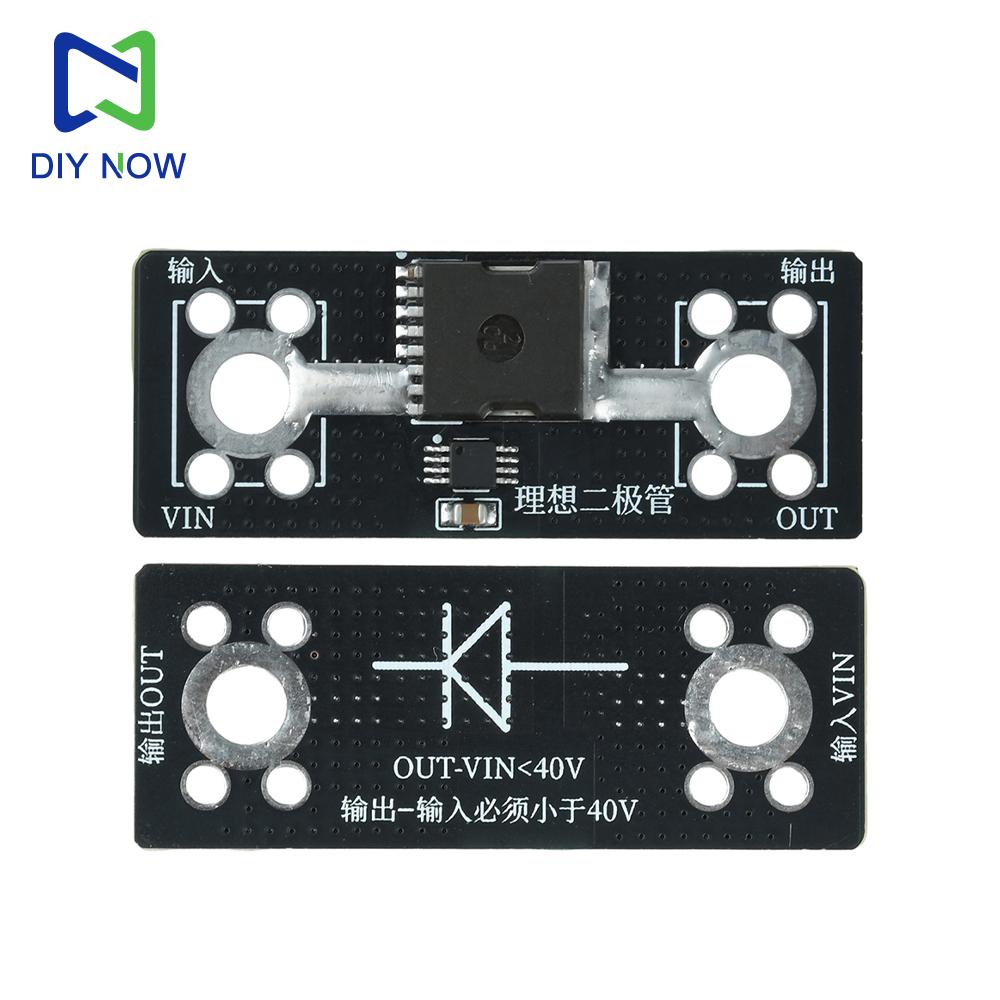

Precautions: Input voltage is unlimited, but there is a reverse voltage requirement. The reverse voltage must be below 40V (the difference between the output voltage and the input voltage cannot exceed 40V). For example, if the input is a 24V power supply, the output can be connected to 12V, 24V, 36V, 48V, or 60V batteries. It cannot be connected to batteries higher than 72V because 72V - 24V input = 48V, resulting in a reverse voltage exceeding 40V.

Product List: Module *1 (style optional) label:yes
