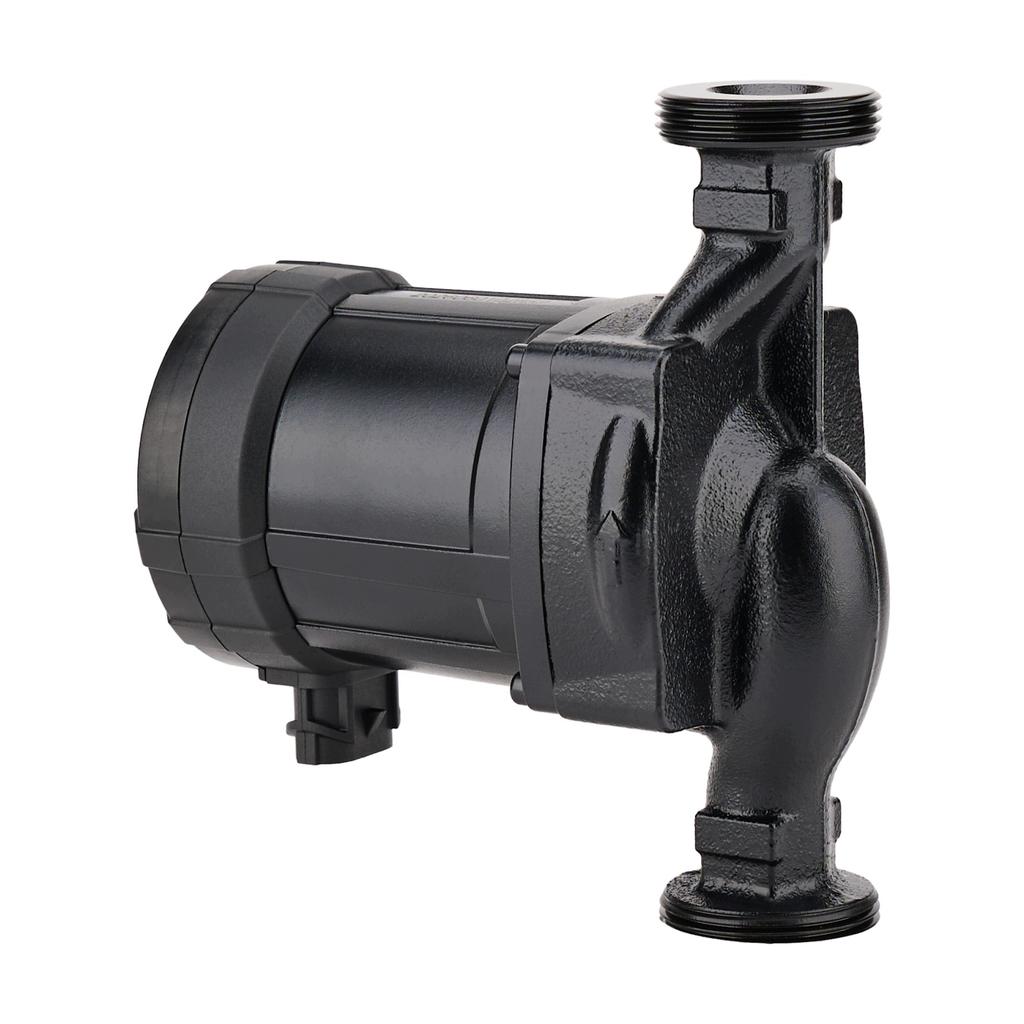

Electronic Water Circulation Pump For Beta 2 25-40/180 Ibo Central Heating Furnace 1 Pc

ELECTRONIC CIRCULATION PUMP FOR CENTRAL HEATING FURNACE BETA 2 25-40/180 IBO

⭐ SET! ⭐

⚡ CIRCULATION PUMP

⚡ SCREW FITTINGS SET

⚡ POWER CABLE

BETA 2 25-40/180

⭐ The BETA 2 circulation pump series has been designed for efficient and reliable water circulation in central heating boiler systems in domestic installations. This is a modern and energy-saving solution that combines high efficiency with quiet operation and easy operation.

⭐Thanks to the use of advanced technology, the BETA 2 pump ensures optimal water circulation, which translates into even heat distribution throughout the building, lower electricity consumption and greater comfort of use.

The universal purpose of the BETA 2 circulation pump makes it is an excellent choice for both home and industrial use. It is perfect for various types of installations, such as:

✅ domestic central heating systems (C.H.),

✅ constant temperature heating systems with variable flow,

✅ installations with variable pipeline temperature,

✅ industrial circuits,

✅ heating systems with night mode,

✅ air conditioning systems.

⚙️ TECHNICAL SPECIFICATIONS ⚙️

✔️ Model: BETA 2 25-40/180 IBO

✔️ Number of operating modes: 8

✔️ Connector spacing: 180 mm

✔️ Connector / union diameter: 1½ / 1"

✔️ Lifting capacity: 4 m

✔️ Capacity: 48 l / min

✔️ Motor power: 22 W

✔️ EEI: 0.18

✔️ Power supply: 1~230 V

✔️ Insulation class: F

✔️ Degree Protection: IP44

✔️ Water temperature range: from 2°C to 95°C

✔️ Maximum system pressure: 1MPa (10 bar)

WHY CHOOSE THE BETA 2 25-40/180 CIRCULATION PUMP?

✅ Energy saving = Lower electricity bills

• Thanks to the modern, energy-saving The BETA 2 pump optimizes energy consumption. It is equipped with an electronic processor that automatically controls the pump operation, which, in combination with a frequency converter, allows for significant savings in electricity consumption.

• The BETA 2 circulation pump meets the requirements for energy class A devices; the pump's energy efficiency index is: EEI ≤ 0.18, which means high efficiency with low consumption.

• The BETA 2 series pump's power consumption is from 1/10 to even 1/3 lower than traditional circulation pumps and can reach, depending on the installation, only 5W.

✅ Even heat distribution

• The BETA 2 pump ensures stable water circulation in the heating system, which translates into thermal comfort throughout the building. The heat reaches all radiators and underfloor heating loops evenly - no more situations where one room is overheated and the other underheated.

• The use of a circulation pump increases the efficiency of the entire central heating system - even water circulation reduces energy losses and improves heating efficiency.

✅ Intuitive use and operating modes tailored to each installation

• The BETA 2 water pump is equipped with an advanced processor that offers a choice of one of 8 operating modes. This allows you to perfectly match the pump's parameters to the needs of your installation.

• The electronic control panel located on the front of the engine shows current energy consumption and allows you to monitor operating costs. Additionally, thanks to the clear interface, changing operating modes becomes easy and convenient.

✅ High comfort of use

• The pump is characterized by a low noise level (~43 dB), so it does not interfere with everyday life. The pump's quiet and stable operation improves the quality of everyday use and translates into greater comfort for household members.

✅ Simple installation and complete equipment

• BETA 2 has a standard nozzle spacing, enabling quick and trouble-free installation – both in new installations and when replacing an older pump. Universal dimensions make it easy to fit the device without having to modify the existing plumbing.

• An additional advantage is the extensive equipment included with the set. The set includes screws and a power cable, which saves time and reduces costs - the pump is ready to be connected right after unpacking.

BETA 2 PUMP OPERATION MODES

✔️ AUTO / ECO - automatically adjusts the pump capacity depending on the current heat demand of the system.

✔️ PP1 and PP2 - proportional pressure modes.

✔️ CP1 and CP2 - modes constant pressure.

✔️ I, II and III - constant speed modes; lowest gear - 1, medium - 2, highest - 3.

✔️ Night mode.
