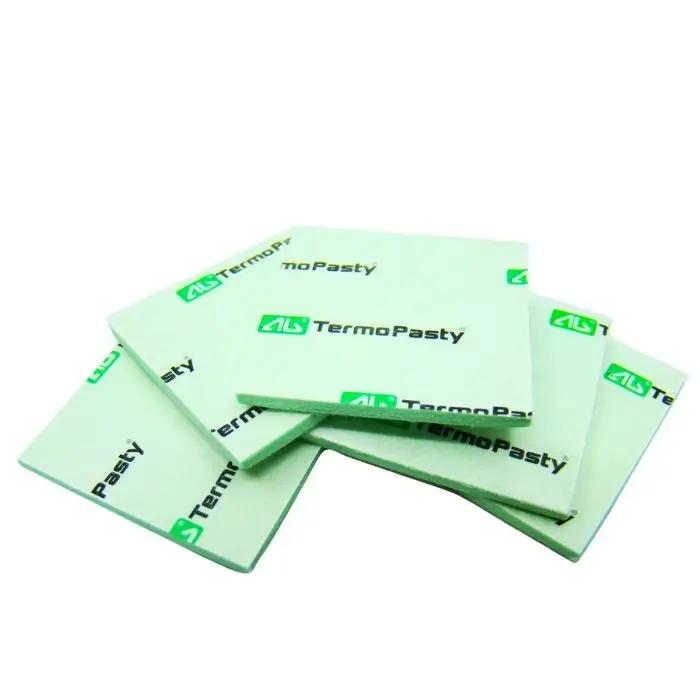

Ag Thermopad 30X30X1.0 6 W/Mk - Thermally Conductive Pad With Adhesive For Cooling Electronics And Leds

AG Thermopad 30x30x1.0 mm (6 W/mK) is a double-sided adhesive thermally conductive pad with very high thermal efficiency, designed for applications in electronics, LEDs and systems requiring effective thermal management.

Advantages and unique features

• High thermal conductivity: 6 W/mK

• Double-sided adhesive layer - quick and stable assembly

• Thermal resistance from -60°C to 200°C

• Excellent flexibility and adaptation to the surface

• No need for additional mounting agents

Properties and applications

• Application: computers, servers, LED systems, industrial cooling systems

• Material: flexible thermally conductive pad with adhesive on both sides

• Dielectric properties: resistance 1.1×10¹¹ Ω/m, dielectric constant 7.5 (1 kHz)

• Form: ready to use, format 30 × 30 mm, thickness 1.0 mm

Parameter | Value

Dimensions | 30 × 30 × 1.0 mm

Thermal conductivity | 6 W/mK

Operating temperature range | –60°C to 200°C

Density at 20°C | 3.0 ± 0.1 g/cm³

Hardness (Shore A) | 30 ± 5

Resistance | 1.1×10¹¹ Ω/m

Dielectric constant | 7.5 (1 kHz)

Shelf life | 3 years

Adhesive layer | Double-sided

Store in a dry place, away from heat sources and sunlight. Store in the original, closed foil packaging.
