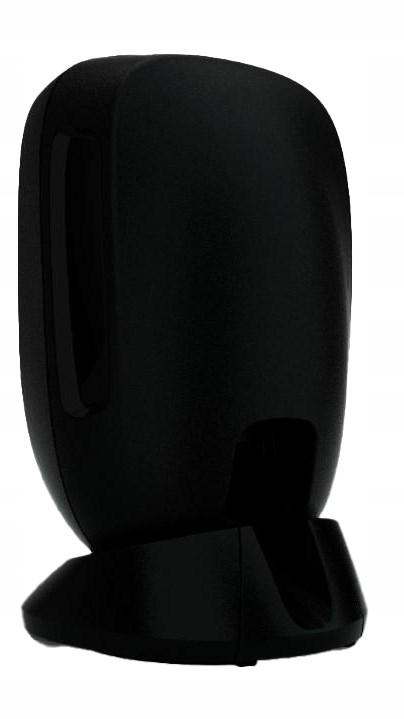

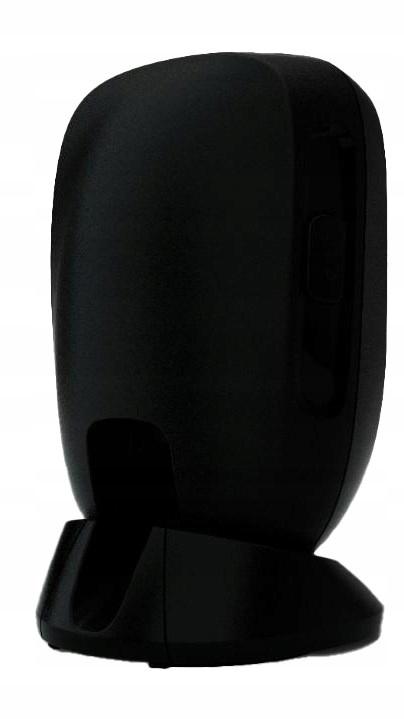

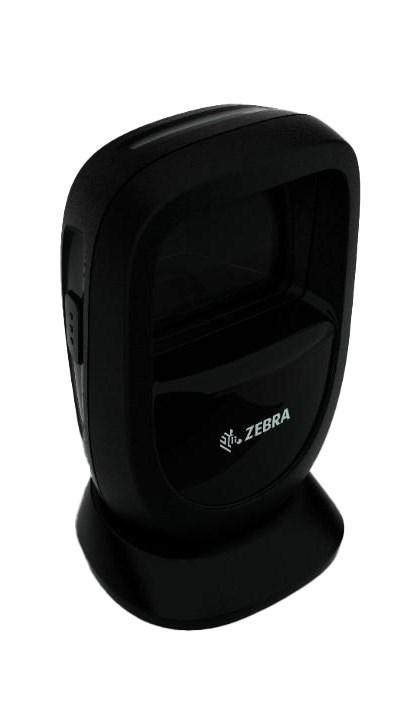

Zebra- Ds9308 Scanner Usb/Cable/Base/Black

Zebra - DS9308 USB Barcode Reader, Black

Zebra - DS9308 Barcode Reader

The Zebra DS9308 barcode reader is characterized by ease and comfort of use. Codes are read immediately when they come into the field of view (52° x 33°). The LED backlight automatically adapts to the environment, dimming the diodes when the reader is not in use. Furthermore, the diodes are located deep within the reader, making them virtually invisible and reducing eye fatigue. The reader also allows you to read documents, prescriptions, passports, ID cards, and other A6-sized or smaller documents. Documents are converted into a readable graphic format. Proprietary software automatically corrects light reflections and other imperfections to maximize document readability. The DS9308 presentation reader eliminates the need for dedicated document readers, speeding up the entire service process, reducing wait times and improving the quality of service.

Specifications

Scanning

• Model: Attached barcode reader • Scanner type: 1D/2D • Image sensor type: LED • Linear barcode support (1D): Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. • Matrix barcode support (2D): Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 • Optical sensor resolution (WxH): 1280 x 800 px • Operating distance: 66 cm • Light levels (direct sunlight): 0 - 107700 lx • Reading angle: -60 - 60°

Ports and interfaces

• Connectivity method: Standard interfaces • Wired: RS-232, USB

Performance

• IP protection rating: IP52 • Product color: Black • Certificates: EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS.

Power

• Power Type:RS-232, USB • Voltage: 5.5 V

Weight and Dimensions

• Product Width: 86 mm • Product Depth: 83 mm • Product Height: 145 mm • Product Weight: 318 g

Terms and Conditions Operating Temperature Range: 0 - 50 °C Storage Temperature Range: -40 - 70 °C Relative Humidity Range: 5 - 95% ... />
