MSI MAG A850GL 850W PCIE5 II 80+ Gold Power Supply (306-7ZP8D11-CE0)

The MSI MAG A850GL PCIE5 is an 850W ATX 3.0 compliant power supply with a native PCIe 5.0 connector, which allows it to support the latest graphics cards such as NVIDIA® GeForce RTX™ 40. The power supply features high 80 PLUS Gold certified energy efficiency. The device seamlessly supports PCIe 5.0 graphics cards (up to 600W) and utilizes hydrodynamic FDB (Fluid Dynamic Bearing) bearings for quiet and stable operation. The compact ATX form factor, measuring 140mm long and 150mm wide, ensures easy and convenient installation of the power supply in most computers. This gives the user much more space for proper cable management, which can significantly improve airflow within the system.

ATX 3.0 Compatibility

Thanks to the ATX 3.0 compatibility, the MAG A850GL PCIE5 power supply can handle a sudden power surge of up to twice the total power consumption and a temporary three-fold increase in graphics card power consumption.

The fully modular design of the power supply reduces cable clutter, simplifies the overall system design, and significantly improves airflow.

PCIe 5.0 Graphics Card Support

MSI MAG A850GL PCIE5 series power supplies feature additional graphics card power connectors (4 x 8-pin VGA connectors), allowing them to support a wide range of NVIDIA and AMD products. In addition, the power supply can deliver up to 600W of power to a PCIe 5.0-compliant graphics card via a native 16-pin PCIe connector.

Features

80 PLUS Gold Certified: Guarantees high power efficiency of up to 90%, resulting in lower power consumption and less heat generation.

Fully Modular Design: Allows you to connect only the cables you need, simplifying cable management and improving airflow inside the case.

Compact Dimensions: The 140 x 150 x 86mm chassis allows for easy installation in most computer cases, leaving more room for other components.

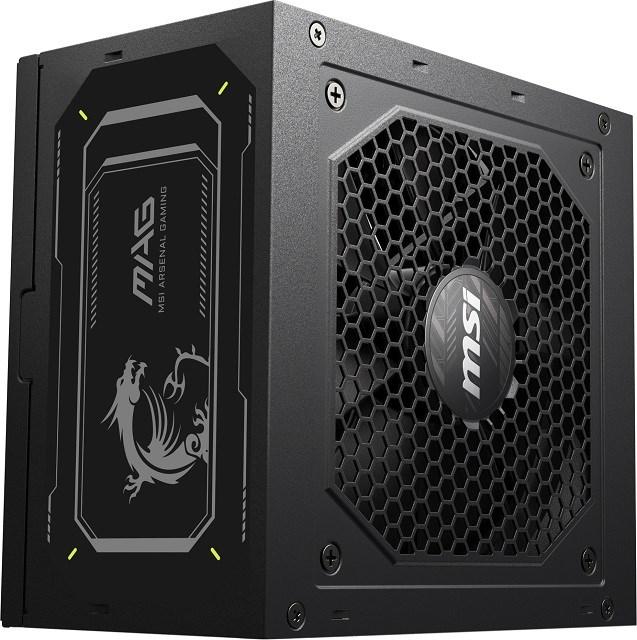

Fluid-Dynamic Bearing Fan: The 120mm fan ensures quiet and efficient operation by balancing cooling performance with noise.

Advanced Protection: The power supply is equipped with protection mechanisms such as OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection), SCP (short circuit protection) and UVP (undervoltage protection), which ensures stable and safe system operation.

Specifications

Power

• Total power: 850 W • AC input voltage: 100 - 240 V • AC Input Frequency: 47 - 63 Hz • PFC (Power Factor Correction) Type: Active • Total Power (+12 V): 850 W • Total Power (+5 V): 110 W • Maximum Output Current (+3.3V): 22 A • Maximum Output Current (+12 V): 20 A • Efficiency: 90% • Power Protection Features: Overload Protection, Undervoltage Protection, Overvoltage Protection, Short Circuit Protection, Overcurrent Protection

Ports and Interfaces

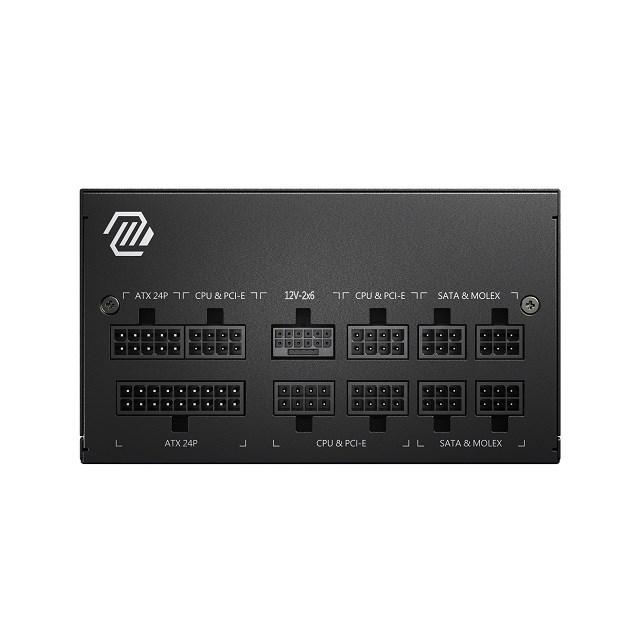

• Motherboard power connector: 24-pin ATX • Number of SATA power connectors: 8 • EPS power connector (4+4 pin): Yes • ATX power socket (24-pin): Yes • Floppy drive socket: Yes • Cable type: Fully modular • Peripheral (Molex) power connectors (4-pin): 4

Performance

• 80 PLUS certification: 80 PLUS Gold • Intended use: PC • Power supply unit (PSU): ATX

Construction

• Product color: Black • Fan bowl diameter: 12 cm • Number of fans: 1 fan • Built-in switch: Yes

Weight and dimensions

• Product width: 150 mm • Product depth: 140 mm • Product height: 86 mm

​​
