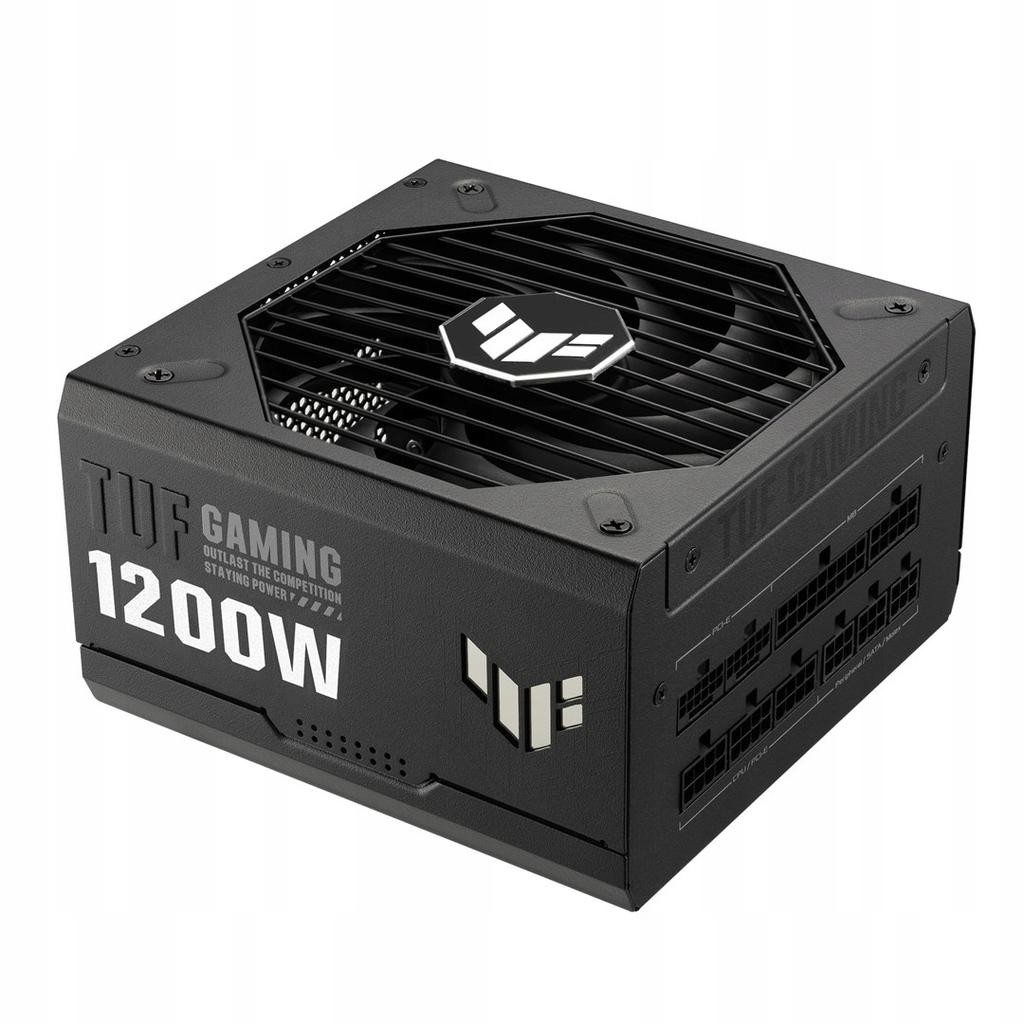

Asus Tuf Gaming 1200W Gold Power Supply

ASUS TUF Gaming 1200W GOLD Power Supply

Specifications

Power

• Total Power: 1200 W • AC Input Voltage: 100 - 240 V • Total Power (+3.3 V): 130 W • Total Power (+12 V): 1188 W • Total Power (+5 V): 130 W • Total Power (-12V): 9.6 W • Total Power (+5 Vsb): 15 W • Maximum Output Current (+3.3V): 25 A • Maximum Output Current (+12 V): 99 A • Maximum Output Current (+5 V): 25 A • Maximum Output Current (-12 V): 0.8 A • Maximum Output Current (+5 Vsb): 3 A • Efficiency: 92% • Power Protection Features: Overload Protection, Overvoltage Protection, Overcharge Protection, Overheat Protection, Short Circuit Protection, Surge Protection, Undervoltage Protection

Ports and Interfaces

• Motherboard Power Connector: 20+4 Pin ATX • Motherboard Cable Length: 61 cm • Number of SATA Power Connectors: 5 • SATA Power Cable Length: 120, 400 mm • Peripheral (Molex) Power Connectors (4-pin): 4 • Peripheral (Molex) Power Cable Length: 150, 400 mm • PCI Express Power Connector (8-pin): 3 • PCI Express Power Connectors (16-pin): 2 • PCI Express Power Cable Length: 67.5 cm • CPU Power Connector (4+4 pin): Yes • CPU Power Cable Length: 65 cm • ATX Power Connector (20+4 pin): Yes • Cable Type: Fully Modular

Performance

• 80 PLUS Certified: 80 PLUS Gold • Intended Use: PC • Power Supply Unit (PSU) Type: ATX • ATX Version: 3.1

Design

• Product Color: Black • Cooling Type: Active • Fan Diameter: 13.5 cm • Number of Fans: 1 fan • Built-in Switch: Yes

Package Contents

• Cables: Cable Ties Included • AC, Processor, PCIe, Peripheral (Molex), SATA: Yes

Certificates

• Compatibility Certificates: RoHS

Weight and dimensions

• Product width: 150 mm • Product depth: 150 mm • Product height: 86 mm • Product weight: 2.66 kg

Packaging details

• Packaging width: 310 mm • Packaging depth: 200 mm • Packaging height: 108 mm • Weight with packaging: 3.35 kg • Packaging type: Box

Technical details

• Sustainability: Yes
