Switch Tp-Link Ls1210Gp

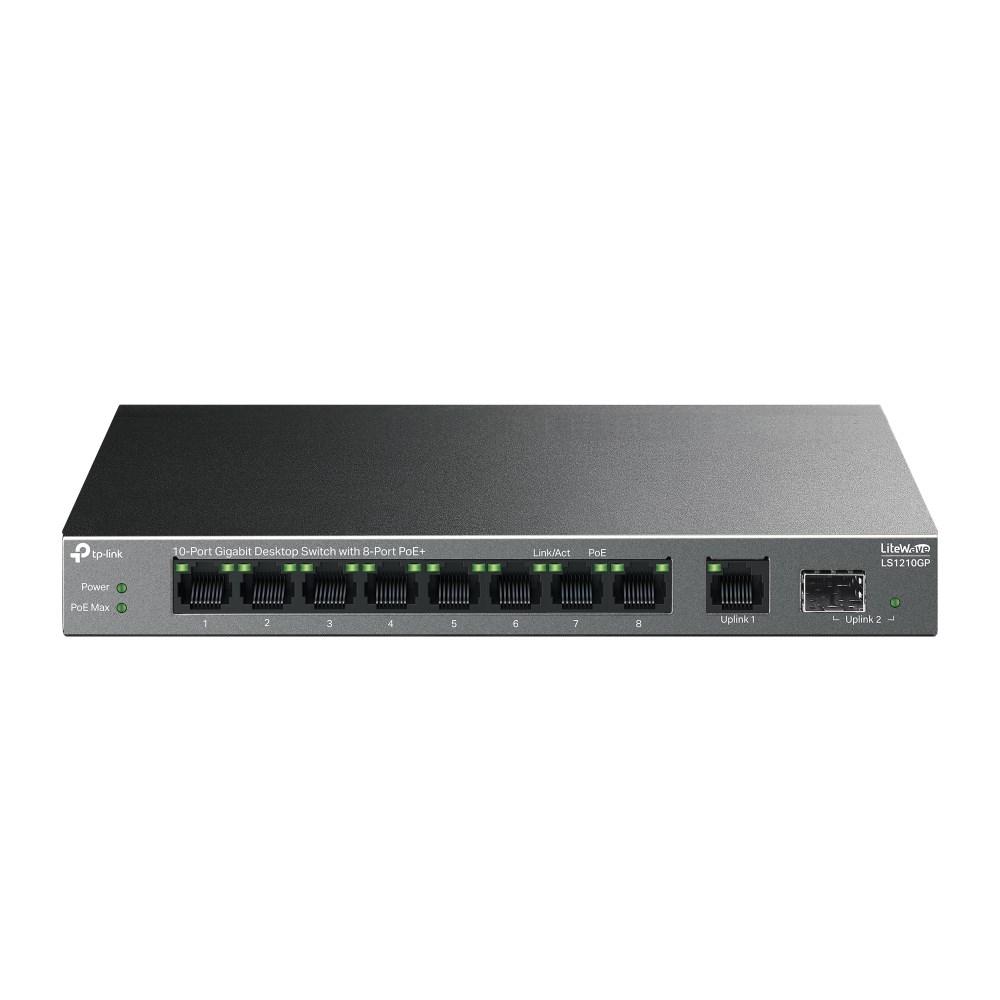

TP-LINK LS1210GP Switch

TP-LINK LS1210GP is an unmanaged Gigabit Ethernet switch equipped with 9 RJ-45 ports and 1 SFP slot, ideal for office applications, small businesses and IP surveillance solutions. QoS support, auto MDI/MDI-X, and auto-negotiation ensure stable, efficient, and trouble-free operation in any network.

This model offers a switching capacity of 20 Gbit/s, a forwarding rate of 14.88 Mpps, and support for Jumbo Frames up to 16,000 bytes, enabling the efficient transmission of large data packets. A 4,000-entry MAC address table and store-and-forward mode ensure effective traffic management.

The switch is equipped with eight 802.3af-compliant PoE ports, offering up to 30 W of power per port (total 61 W of PoE budget), allowing it to power IP cameras, access points, or VoIP phones without the need for additional power supplies. The device's maximum power consumption is 76.96 W.

The compact design in a black housing with LED indicators makes the device easy to read and install. The LS1210GP operates in a temperature range of 0-40°C and is CE, FCC, and RoHS certified, ensuring compliance with safety standards. A user guide is also included.

The ideal choice for modern, energy-efficient network installations and monitoring systems.

Description

Management Features

• Switch Type: Unmanaged • Quality of Service (QoS) Support: Yes

Ports and Interfaces

• Basic RJ-45 Switching Number of Ethernet Ports: 9 • Basic Ethernet Switching RJ-45 Ports Type: Gigabit Ethernet (10/100/1000) • Number of SFP Module Slots: 1

Network

• Communication Standards: IEEE 802.1p IEEE 802.3ab IEEE 802.3af Expand • 10G Support: No • Supported Cable Types: Cat3 Cat4 Cat5 Expand • Flow Control Support: Yes • Auto MDI/MDI-X: Yes • Auto Negotiation: Yes

Forwarding Data Rate

• Routing/Switching Throughput: 20 Gbit/s • Forwarding Rate: 14.88 Mpps • Address Table Size: 4000 Entries • Store-and-forward: Yes • Jumbo Frames Expansion: 16000

Design

• Product Color: Black • LED Indicators: Yes

Power

• Power Source: DC/PoE • Power Adapter Included: Yes • AC Input Voltage: 220 V • AC Input Frequency: 50 Hz • DC Input Voltage: 53.5 V • Power Consumption (max): 76.96 W

Power over Ethernet (PoE)

• PoE Support: Yes • Number of Fast Ethernet (PoE) Ports: 8 • Power over Ethernet (PoE) Power per Port: 30 W • Total Power over Ethernet (PoE) Budget: 61 W

Operating Conditions

• Temperature Range (Operation): 0 - 40 °C • Temperature Range (Storage): -40 - 70 °C • Relative humidity range: 10 - 90% • Permissible relative humidity: 5 - 90% • Heat emission: 261.66 BTU/h

Weight and dimensions

• Product width: 209 mm • Product depth: 126 mm • Product height: 26 mm

Package contents

• User guide: Yes

​​
