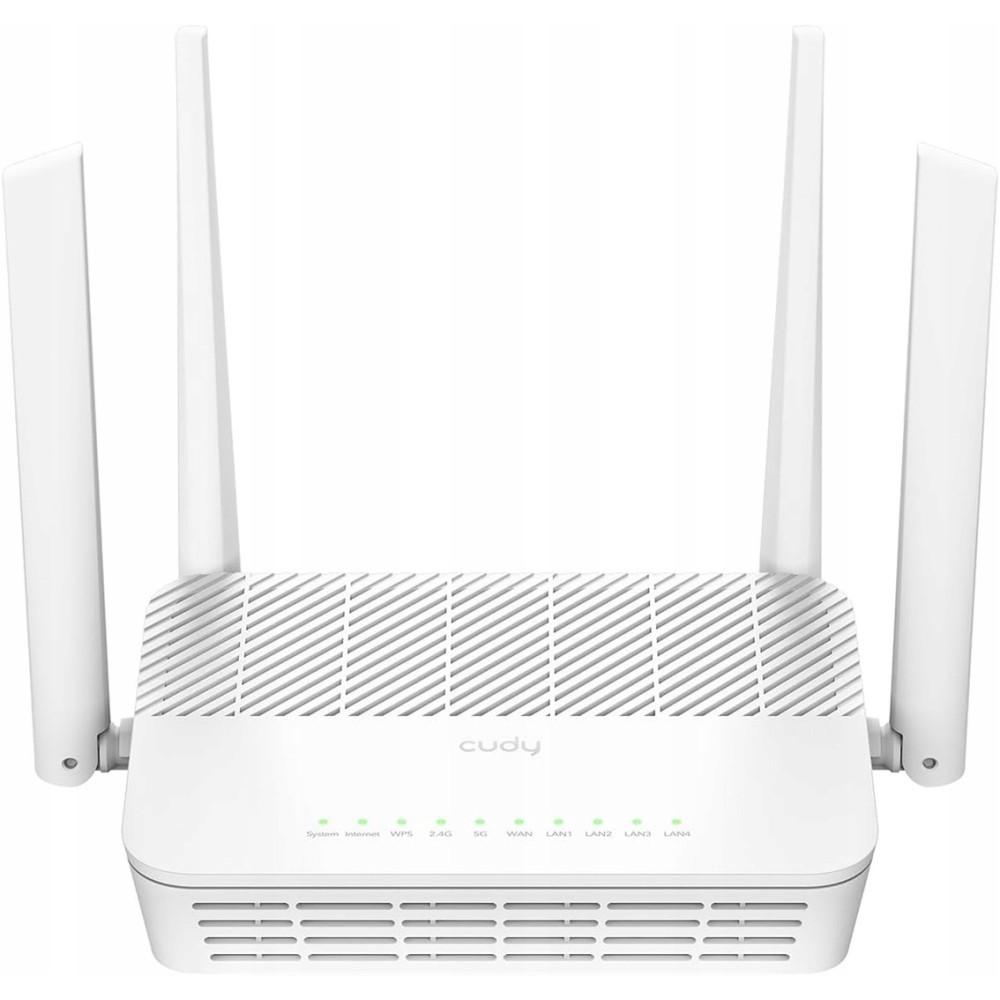

Cudy Wr3000S Router

CUDY WR3000S Router

CUDY WR3000S Router

The WR3000S offers the highest throughput of 160MHz with Wi-Fi 6 and 1024-QAM to achieve wireless speeds of up to 3Gbps, more than 2.5 times faster than previous-generation routers. A five-stream system - 3 on the 5GHz band and 2 on the 2.4GHz band - increases signal carrying capacity indoors. Additionally, 5 dBi antennas with Beamforming function boost the signal in every corner of your home. Designed to support 256 devices, with a maximum of 512 devices, the WR3000S has a more efficient network that delivers faster data transfers without any performance degradation.

Specifications

WAN Connection

• Ethernet WAN: Yes • DSL WAN: No • SIM Card Slot: No • USB 3G/4G Connection: No • WAN connection type: RJ-45

Wireless LAN features

• Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz) • Basic Wi-Fi standard: Wi-Fi 6 (802.11ax) • WLAN data transfer rate (max): 2402 Mbit/s • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) • WLAN data transfer rate (first band): 574 Mbit/s • WLAN data transfer rate (second band): 2402 Mbit/s

Network

• Wired LAN: Yes • Ethernet LAN interface type: Gigabit Ethernet • Ethernet LAN data transfer speed: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s • Port forwarding: Yes • Port triggering: Yes • Dynamic DNS (DDNS): Yes • Number of guest networks (2.4 GHz): 1 • Number of guest networks (5 GHz): 1 • Maximum Transmit Power (2.4 GHz): 20 dBmW • Maximum Tx Power (5 GHz): 23 dBmW

Ports and Interfaces

• Number of Ethernet LAN (RJ-45) Ports: 4 • DC Output Socket: Yes • Number of WAN Ports: 1

Management Features

• Website Management: Yes • Wi-Fi Multimedia (WMM) / (WME): Yes • Wireless Statistics: Yes • Reset Button: Yes • WPS Button: Yes • Smart Mesh Technology: Yes

Security

• Encryption / Security: WPA3, WPA-PSK, WPA2-PSK • Guest Access: Yes • Parental Controls: Yes

Protocols

• DHCP Client: Yes

Design

• Product Color: White • LEDs: LAN, Power, Status, WPS • Product Type: Desktop Router

Package Contents

• Cables: LAN (RJ-45) • Power Supply: Yes

Power

• Power Supply Type: DC • Operating Voltage: 12 V • Output Current: 1 A

Weight and Dimensions

• Product Width: 173 mm • Product Depth: 123.8 mm • Product Height: 33 mm

​​
