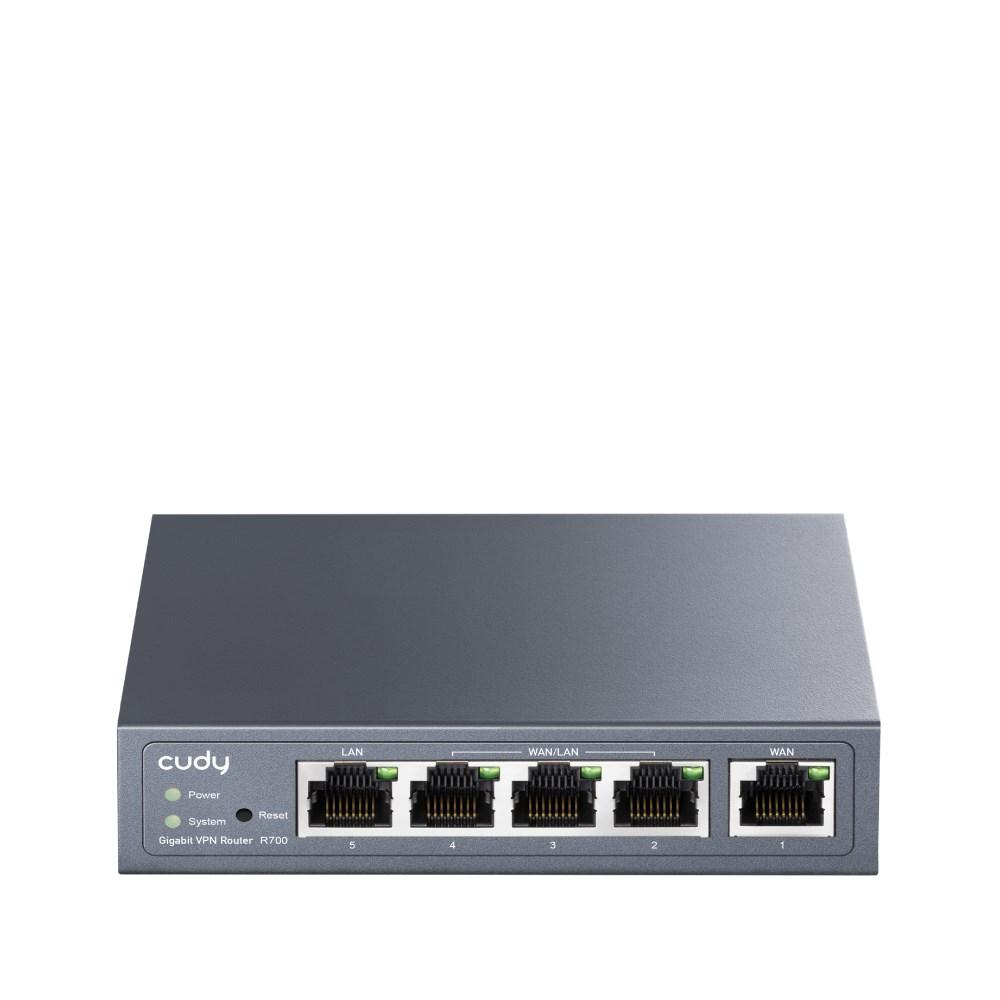

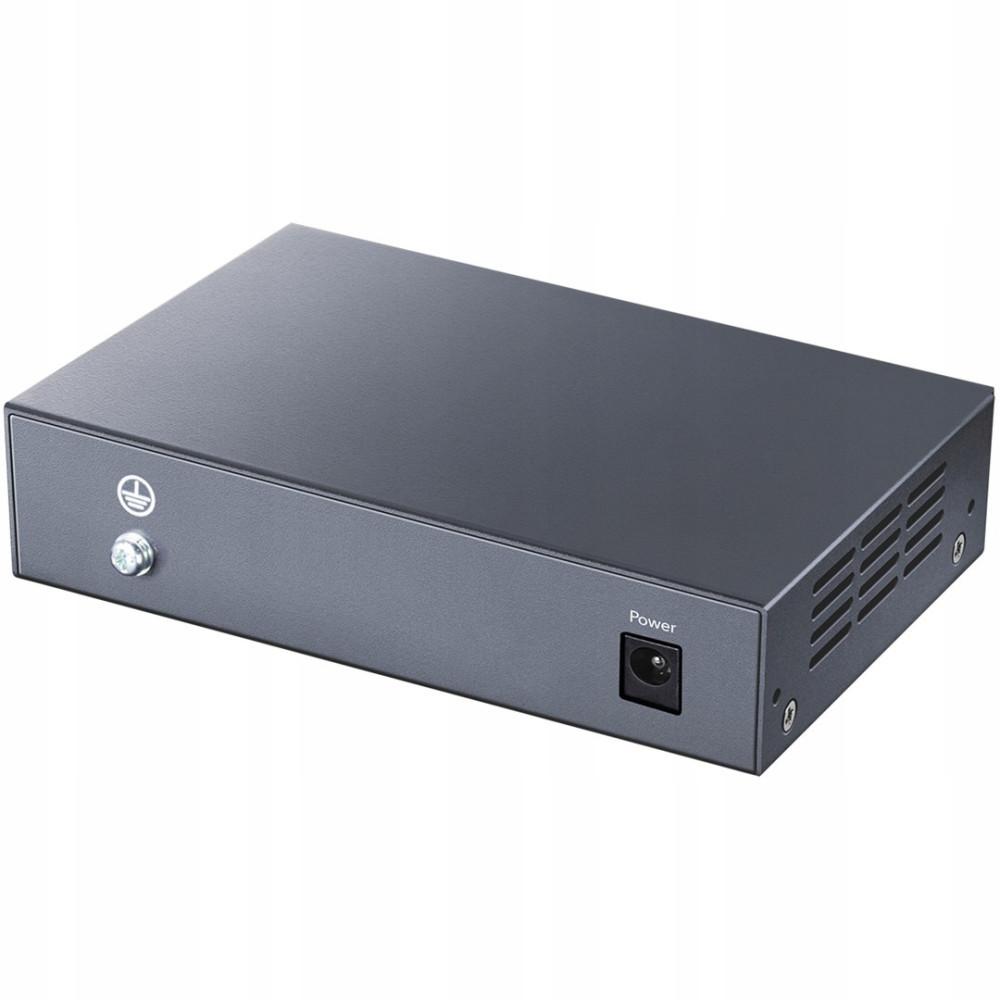

Cudy R700 Router

CUDY R700 router

Specification

WAN Connection

• Ethernet WAN: Yes • DSL WAN: No • SIM Card Slot: No • 3G/4G USB Connection: No • SFP WAN: No

Network

• Communication Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x • Ethernet Interface Type: Fast Ethernet, Gigabit Ethernet • Cable Technology: 10/100/1000Base-T(X) • Ethernet LAN Data Transfer Rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s • Static Route: Yes • Routing Based on Rules: Yes • Concurrent Connections: 15360

Management Features

• Website Management: Yes • Universal Plug and Play (UPnP): Yes • Reset Button: Yes

Ports and Interfaces

• Number of Ethernet LAN (RJ-45) Ports: 1 • Number of WAN/Ethernet LAN Ports: 3 • Number of WAN Ports: 1

Protocols

• DMZ Support: Yes • DHCP Server: Yes • Supported Network Protocols: /IP, DHCP, ICMP, NAT, PPPoE, HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier

Protection

• Encryption / Security: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, SHA-2, SHA-512 • Firewall: Yes • MAC Address Filtering: Yes • URL Filtering: Yes • IP Address Filtering: Yes • DoS Attack Prevention: Yes • System Event Report: Yes

Technical Details

• Sustainability Compliance: Environmental (Sustainability) Certification • Yes: CE, FCC, RoHS

Features

• Flash Memory Size: 16 MB • Internal Memory Capacity: 128 MB • RAM Type: DRAM

Design

• Product Color: Gray • Housing Material: Metal • LED Indicators: Activity, Link, Power, System, WAN

Operating Conditions

• Temperature Range (Operation): 0 - 40 °C • Temperature range (storage): -40 - 70 °C • Relative humidity range: 10 - 90% • Permissible relative humidity: 5 - 90%

Weight and dimensions

• Product width: 119 mm • Product depth: 85 mm • Product height: 28 mm

Packaging data

• AC adapter: Yes • Cables: LAN (RJ-45) • Quick installation guide: Yes
