Gigabyte B550 Aorus Elite Ax V2 Motherboard

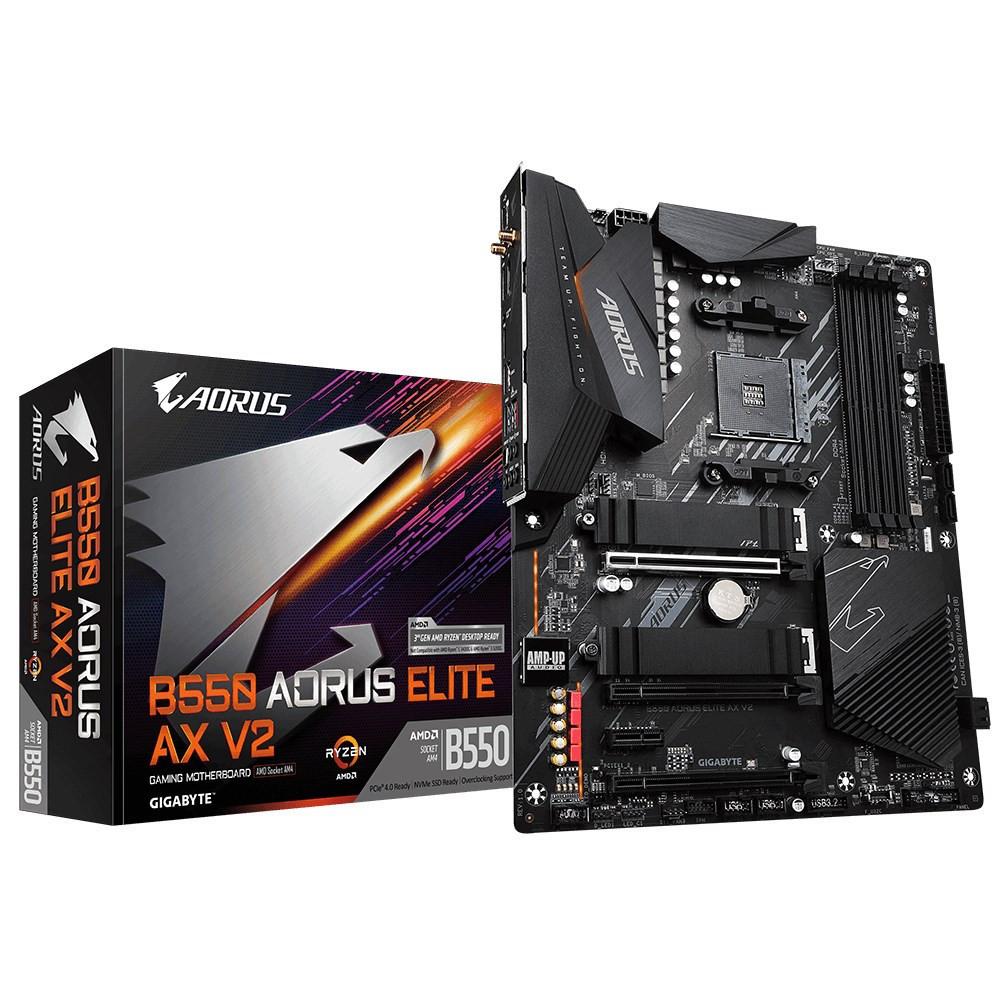

Gigabyte B550 AORUS ELITE AX V2 Motherboard

Gigabyte B550 AORUS ELITE AX V2

With the Gigabyte B550 AORUS ELITE AX V2 motherboard, you will fully utilize the capabilities of modern AMD Ryzen series processors. 5000. Benefit from support for PCIe 4.0 and RAM modules clocked up to 4733 MHz for the highest gaming performance. Thanks to the stylish design and RGB Fusion 2.0 lighting, you can also give your setup a truly gaming look.

Ultra-fast connectors

Thanks to the two ultra-fast M.2 connectors, you can connect the fastest NVMe SSDs to the B550 AORUS ELITE AX V2. One of them supports the PCIe Gen4 x4 standard, offering an interface with a maximum bandwidth of up to 64 Gb/s. The motherboard's I/O panel also features various USB ports, including USB 3.2 Gen1, which offers bandwidth of up to 5 Gb/s. You can also use the USB-C connector pinouts for your computer case.

High-Quality Audio

The Gigabyte B550 AORUS ELITE AX V2 motherboard delivers high-quality audio in every situation thanks to the high-quality Realtek ALC1200 codec and premium WIMA capacitors. Specially routed and isolated signal paths on the PCB further protect the sensitive audio signal from interference. And the AORUS AMP-UP audio technology solutions will meet the requirements of the most demanding audiophiles.

High Throughput

With the Gigabyte B550 AORUS ELITE AX V2, you can take advantage of the latest wired network standards. Connect via the RJ-45 port and the built-in Realtek 2.5GbE LAN controller with maximum throughput of up to 2.5Gbps. Or take advantage of fast wireless connectivity with the Wi-Fi 6 AX200 network adapter, which offers speeds of up to 2400Mbps. Connect to the internet without the hassle of running additional cables and take advantage of Bluetooth 5 support.

Specifications

Processor

• Processor Manufacturer: AMD • Processor Socket: Socket AM4 • Processor: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series • Maximum Number of SMP Processors: 1 • Supported Processor Sockets: Socket AM4

Memory

• Supported Memory Types Memory: DDR4-SDRAM • Number of Memory Slots: 4 • Memory Slot Type: DIMM • Memory Channel Support: Dual Channel • ECC Compatibility: ECC or Non-ECC • Supported Memory Clock Speeds: 4733 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz • Supported Memory Clock Speed (max): 4733 MHz • Maximum Memory Capacity: 128 GB • Unbuffered Memory: Yes • Maximum Internal Memory per Slot: 32 GB

Storage Drivers

• Supported Drive Types: HDD & SSD • Supported Hard Drive Interfaces: M.2, SATA III • Number of Supported HDDs: 4 • Supported Storage Drive Sizes: 6 • RAID Service: Yes • RAID Levels: 0, 1, 10

Graphics

• Parallel Processing Support: Not Supported • Maximum Resolution: 5120 x 2880 px • HDCP: Yes • DirectX Version: 12.0

Internal I/O

• Number of USB 2.0 Ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2 • Number of SATA III Ports: 4 • Front Panel Audio Connector: Yes • Front Panel Connector: Yes • ATX Power Socket (24-pin): Yes • CPU Fan Connector: Yes • Number of CPU Fan Connectors: 1 • Number of Case Fan Connectors: 3 • EPS Power Connector (8-pin): Yes • Number of EPS Power Connectors (8-pin): 1 • TPM Connector: Yes • 12V Power Connector: Yes • Number of Water Pump Connectors: 4 • RGB LED: Yes • Number of RGB LED Connectors: 5

Back Panel I/O Ports

• Number of USB 2.0 Ports: 2 • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2 • Number of Ethernet LAN (RJ-45) ports: 1 • Number of HDMI ports: 1 • HDMI version: 2.1 • Number of DisplayPorts: 1 • DisplayPort version: 1.4 • Headphone outputs: 1 • Line-in: Yes • Microphone: Yes • S/PDIF out port: Yes • WiFi-AP Antenna Jack: 2

Network

• Wired LAN: Yes • Ethernet Interface Type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet • LAN Controller: Realtek RTL8125 • Wi-Fi: Yes • Basic Wi-Fi Standard: Wi-Fi 6E (802.11ax) • Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) • WLAN Controller Model: Intel Wi-Fi 6E AX210 • Bluetooth: Yes • Bluetooth Version: 5.3

Features

• Motherboard Chipset: AMD B550 • Audio Chipset: Realtek ALC897 • Audio Output Channels: 7.1 channels • Product Color: Black • PC Status Monitoring: Fan, Temperature, Voltage, Water Cooling • Motherboard Form Factor: ATX • Motherboard Chipset Family: AMD • Cooling Type: Passive • Power supply type: ATX • Supported Windows operating systems: Windows 10 x64, Windows 11 x64

Expansion slots

• PCI Express x1 (Gen 3.x) slots: 1 • PCI Express x16 (Gen 3.x) slots: 2 • PCI Express x16 (Gen 4.x) slots: 1 • Number of M.2 (M) slots: 2 • 1. largest M.2 key size: 22110 • 1. M.2 highest PCI Express generation: 4.0 • 2. largest M.2 key size: 22110 • 2. M.2 PCI Express Highest Generation: 3.0

BIOS

• BIOS Type: UEFI AMI • Clear CMOS Jumper: Yes • Desktop Management Interface (DMI) Version: 2.7

Logistics Data

• Country of Origin: Products per Shipping Crate (Internal) • China: 1 pc.

Safety Warning

• Warnings: Avoid direct contact with sensitive electronic components., Keep away from water and moisture., Dispose of in accordance with local regulations for electronic waste.

Battery

• Battery Weight: 3 g • Lithium battery weight: 0.07 g • Number of battery cells: 1 • Battery type: Lithium-Manganese Dioxide (LiMnO2) • Battery type: CR2032

Packaging data

• Packaging width: 335 mm • Packaging depth: 270 mm • Packaging height: 80 mm • Weight with packaging: 1.89 kg

Weight and dimensions

• Product width: 305 mm • Product depth: 244 mm • Product height: 35 mm

Package contents

• Batteries Included: Yes • Antenna Included: Yes • Screws Included: Yes • Software Included: Norton® Internet Security (OEM version) LAN bandwidth management software

Other Features

• Product Weight: 1.12 kg
