Asrock X870 Nova Wifi Motherboard

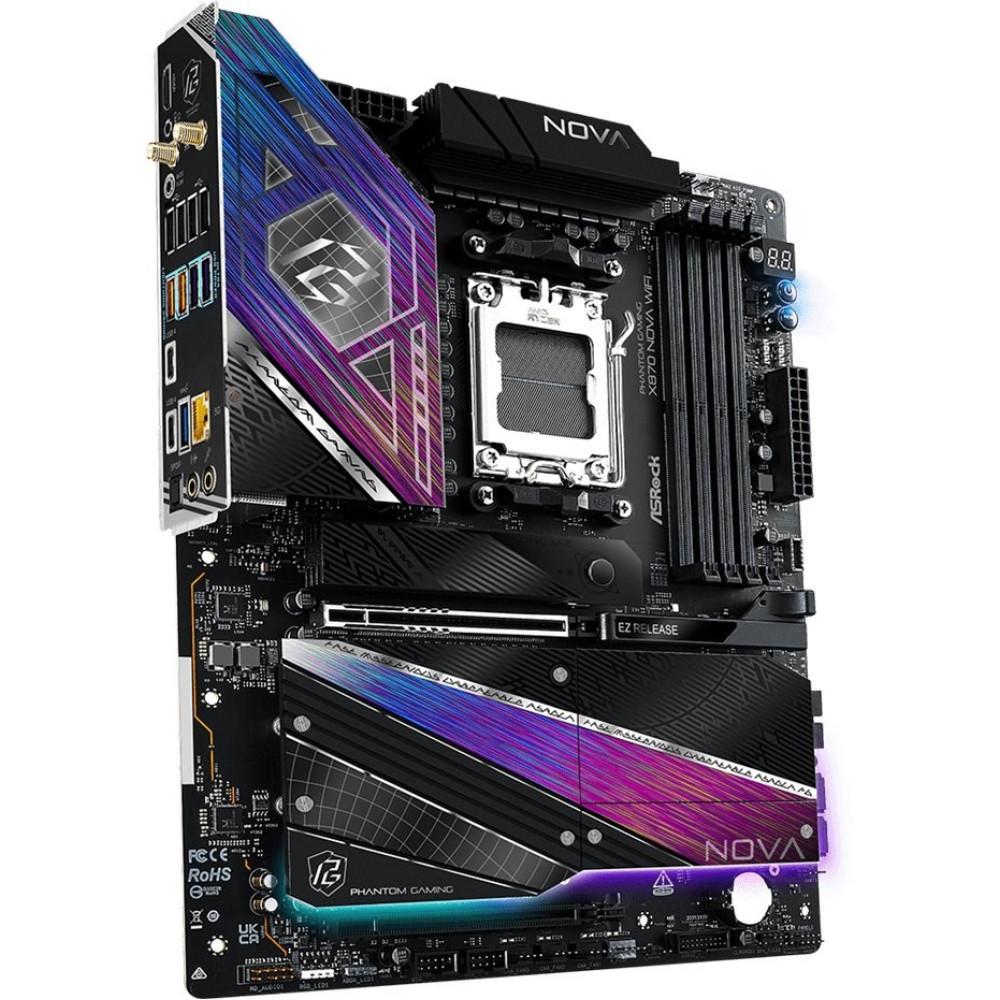

ASRock X870 NOVA WIFI Motherboard

ASRock X870E Nova WiFi – a powerful motherboard for enthusiasts and professionals

ASRock X870E Nova WiFi is a modern, highly advanced motherboard designed for the latest AMD Ryzen processors with AM5 socket and AMD X870E chipset. Thanks to the use of the latest technologies, wide expansion possibilities and modern networking solutions, this board is ideal for both advanced gaming computers and professional workstations requiring high computing power.

Support for the latest processors and memory

The board is designed to support AMD Ryzen 7000 series and newer processors with the AM5 socket, which use the architecture Zen 4, offering exceptional performance and energy efficiency. Combined with support for the latest DDR5 memory modules operating in Dual-Channel mode, the ASRock X870E Nova WiFi provides excellent conditions for working with demanding applications and advanced games. Fast memory access and support for high RAM frequencies allow you to maximize the processor's potential.

The motherboard offers a wide range of PCI Express 5.0 slots, allowing you to connect the latest graphics cards and other high-bandwidth PCIe devices, such as fast network cards and NVMe controllers. Four SATA III connectors allow you to connect multiple traditional SATA hard drives or SSDs, allowing you to create a large and fast storage space.

Additionally, the board is equipped with M.2 connectors for modern NVMe SSDs, which can operate at very high speeds, significantly improving the speed of system and application loading and data transfer.

Advanced network connectivity

ASRock X870E Nova WiFi has an integrated Realtek 2.5 Gb/s Ethernet wired network controller, which ensures a fast and stable network connection with low latency, which is especially important for gaming applications and working with large files in the local network.

Furthermore, the board has a built-in Wi-Fi 6E module, supporting the latest 802.11ax standard with 6 GHz band expansion, enabling very fast and stable wireless connections, and Bluetooth 5.2, ensuring compatibility with a wide range of peripherals. This allows you to use very high-bandwidth networks without the need for cables.

The board features seven USB 3.2 Gen 1 ports (formerly USB 3.1 Gen 1), allowing for fast data transfers and connecting modern peripherals such as external drives, keyboards, mice, and headphones. Additionally, there are two USB 2.0 ports, which are compatible with most older devices.

The board's power supply is very solidly designed: a standard 24-pin ATX socket and two 8-pin EPS 12V connectors provide stable power to the processor and other components, which is crucial for stable operation even under heavy load and during overclocking.

Key Features and Functions

Processor: Supports AMD Ryzen 7000 series and newer processors with socket AM5.

RAM: Supports DDR5 memory in Dual-Channel mode, enabling fast and stable memory access.

Expansion Options:

Multiple PCIe 5.0 slots for ultra-fast data transfer for graphics cards and other devices.

Four SATA III connectors for connecting SSDs and HDDs.

Wired and Wireless Connectivity:

Built-in Realtek 2.5 Gbps Ethernet controller ensures fast and stable network connection.

Wi-Fi 6E (802.11ax) module with support for 2.4 GHz, 5 GHz, and 6 GHz bands and Bluetooth 5.2 for high-quality wireless connections.

USB Ports:

Seven USB 3.2 Gen 1 ports (including three on the rear and four on the front panel).

Two USB 2.0 ports.

Power Supply:

Standard ATX 24-pin connector and two 8-pin EPS 12V connectors guarantee stable power to the processor and components.

Cooling:

Two 4-pin CPU fan connectors and three case fan connectors enable extensive control Cooling.

RGB:

RGB lighting support with one standard and three addressable LED headers, enabling eye-catching lighting effects.

Advanced Cooling and RGB Options

The board features two 4-pin CPU fan headers that allow you to connect and control multiple CPU cooling fans, and three 4-pin case fan headers. This solution enables precise thermal management within the case, which is extremely important for the longevity and stability of components.

Additionally, the board supports RGB lighting – it has one standard 12V header and three addressable 5V headers, so you can connect both classic LED strips and modern, addressable diodes, creating effective lighting arrangements controlled via software.

The audio connector on the board's front panel allows for convenient connection of headphones or a microphone, which is important for gamers and those working with audio. Thanks to the use of high-quality audio components, the board provides clear and crisp sound.

Specifications

Processor

• Processor Manufacturer: AMD • Processor Socket: Socket AM5 • Supported Processor Sockets: Socket AM5

Memory

• Supported Memory Types: DDR5-SDRAM • Number of Memory Slots: 4 • Memory Slot Type: DIMM • Maximum Memory Capacity: 256 GB

Memory Drivers

• Supported Disk Types: HDD & SSD • Supported Hard Drive Interfaces: PCI Express 4.0, PCI Express 5.0, SATA III • RAID Service: Yes • RAID Levels: 1, 0, 10

Graphics

• Parallel Processing Support: HDCP • Not Supported: Yes

Internal I/O

• Number of USB 2.0 Ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1) Ports: 3 • Number of SATA III Ports: 2 • Front Panel Audio Connector: Yes • ATX Power Socket (24-pin): Yes • CPU Fan Connector: Yes • RGB LED: Yes

Rear Panel I/O Ports

• Number of Ethernet LAN (RJ-45) Ports: 1 • Number of HDMI Ports: 1 • Headphone Outputs: 1 • Microphone: Yes

Network

• Wired LAN: Yes • Ethernet Interface Type: 2.5 Gigabit Ethernet • LAN Controller: Dragon RTL8125BG • Wi-Fi: Yes • Basic Wi-Fi Standard: Wi-Fi 6E (802.11ax)

Features

• Motherboard Layout: AMD X870 • Product Color: Black • Motherboard Form Factor: ATX • Motherboard Chipset Family: AMD • Supported Windows Operating Systems: Windows 11 x64, Windows 10 x64 • Certifications: FCC, CE, ErP/EuP

BIOS

• BIOS Type: UEFI AMI

Weight and Dimensions

• Product Width: Depth product • 244 mm: 305 mm

Package contents

• Cables: Antenna included • SATA: Yes
