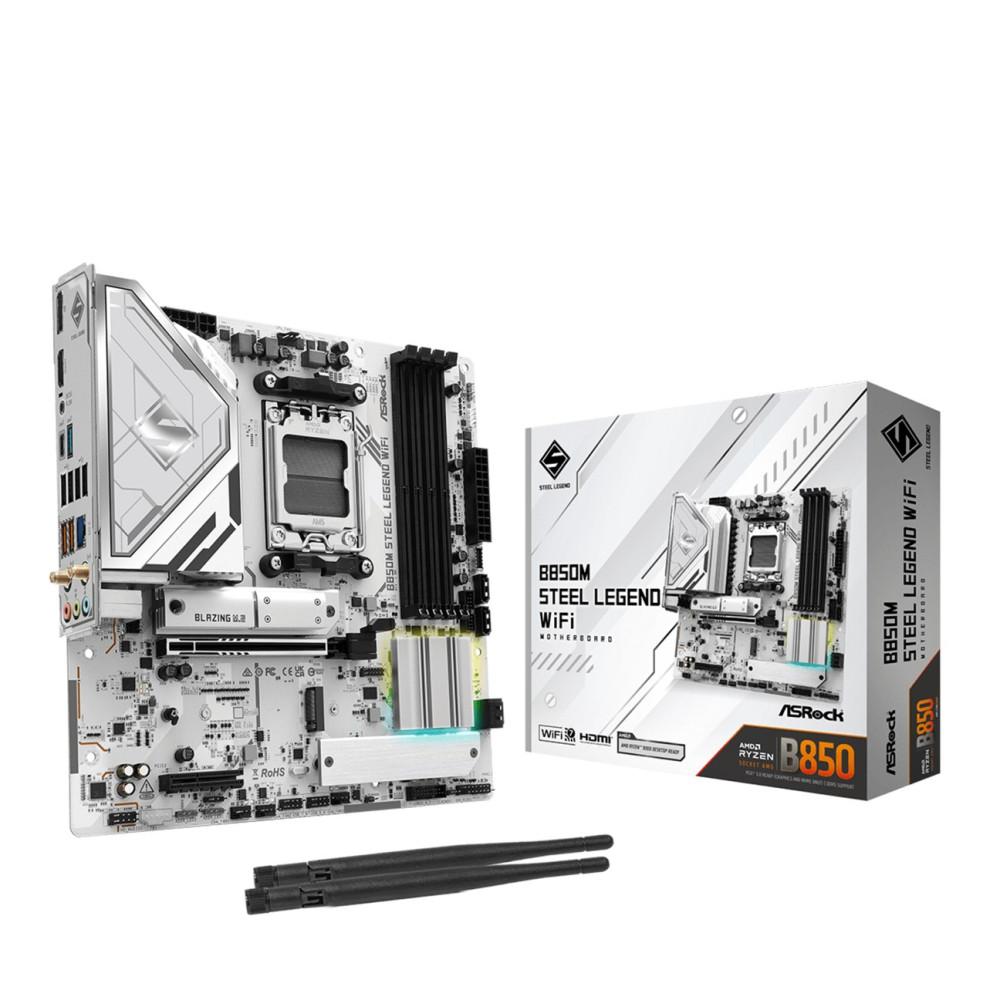

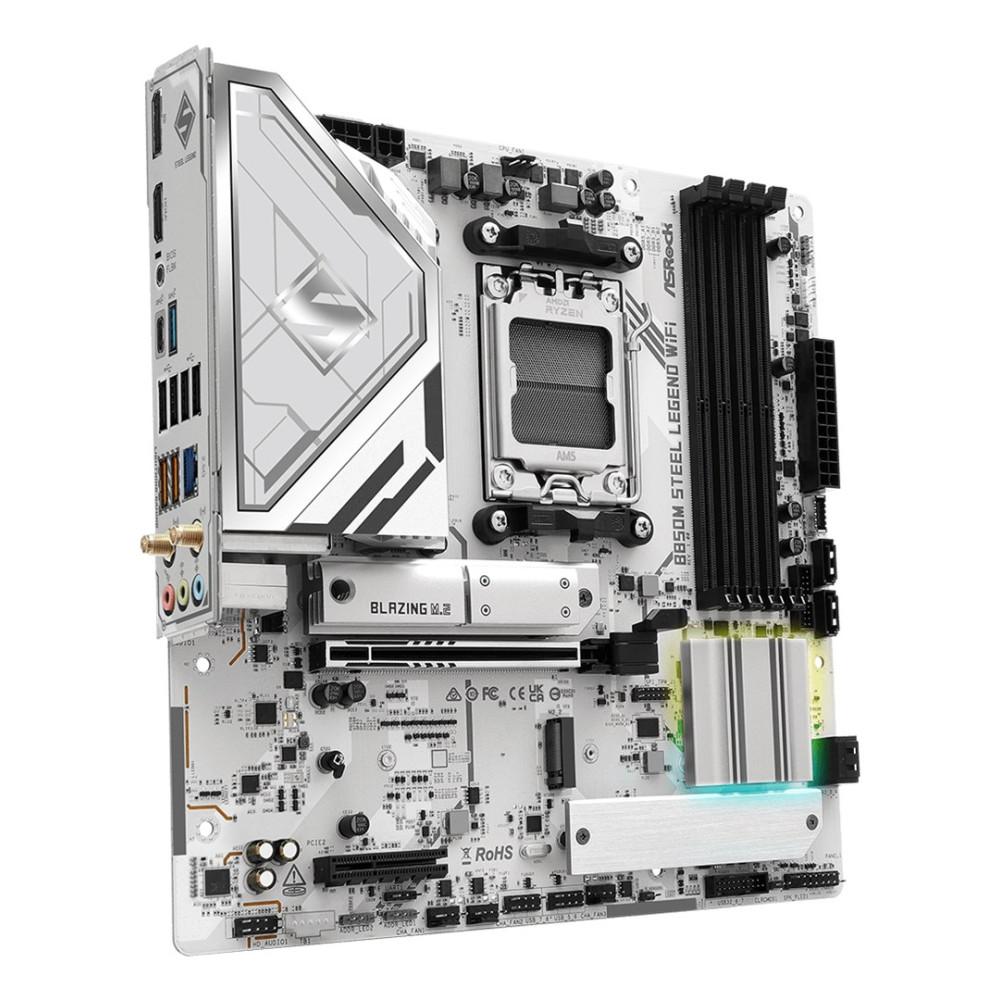

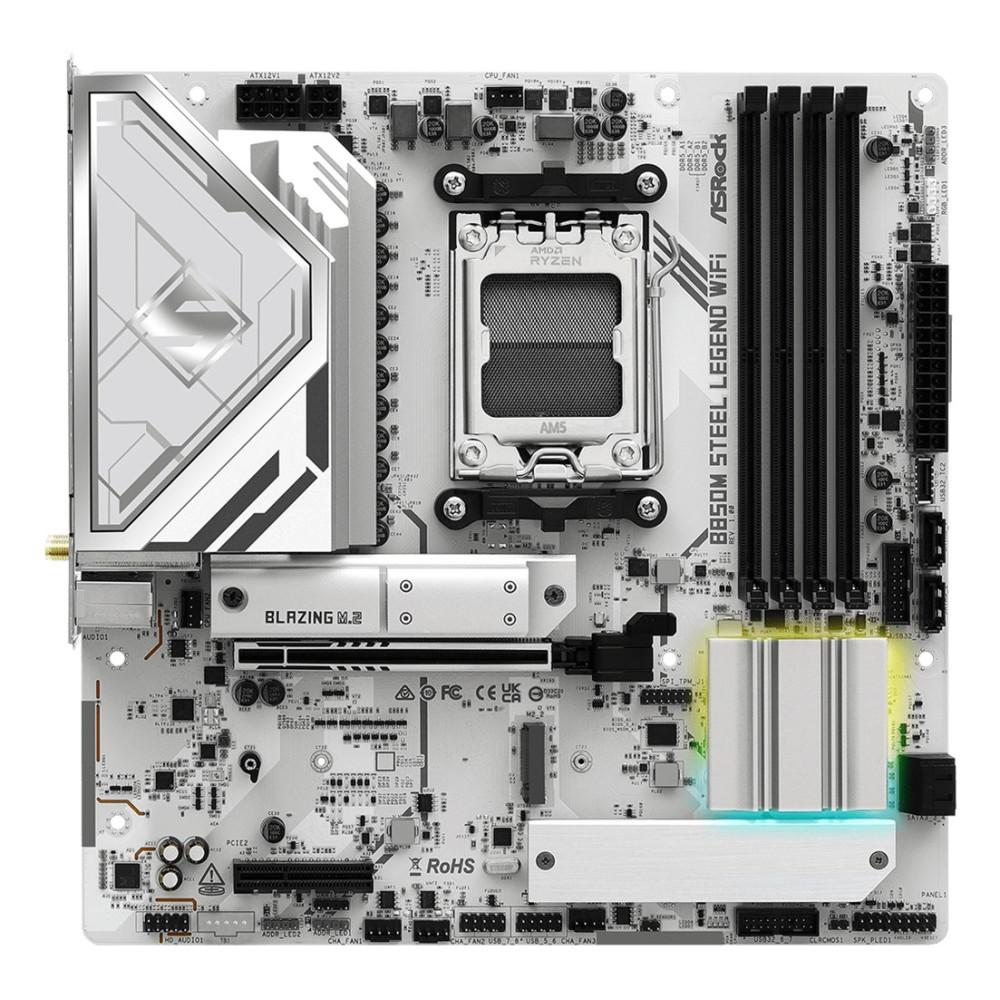

ASRock B850M Steel Legend WiFi Motherboard

Asrock B850M Steel Legend WiFi – Power and Reliability in a Compact Form Factor

The Asrock B850M Steel Legend WiFi motherboard is the perfect choice for gamers and tech enthusiasts looking for performance and stability in a micro ATX form factor. Equipped with the modern AMD B850 chipset and AM5 socket, it offers full support for the latest AMD Ryzen processors, guaranteeing smooth operation and high computing power in every situation.

Full support for the latest technologies

Thanks to the support of high-frequency DDR5 memory, the Asrock B850M Steel Legend WiFi allows you to fully utilize the potential of the new AMD processors. Additionally, the fast M.2 PCIe 5.0 and 4.0 connectors enable the installation of lightning-fast SSDs, reducing system and game boot times.

Stability and cooling efficiency

A solid power supply section and an extensive cooling system with a VRM heatsink ensure stable operation even under heavy loads. It's the perfect solution for those planning overclocking or intensive use of demanding applications.

Connectivity without compromise

Built-in WiFi 6E and Bluetooth 5.3 modules guarantee fast and stable wireless connections. USB 3.2 Gen2 ports and a 2.5G LAN connector ensure lightning-fast communication with devices and the network, regardless of the connection method.

Specifications

Processor

• Processor Manufacturer: AMD • Processor Socket: Socket AM5 • Processor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series • Supported Processor Sockets: Socket AM5

Memory

• Supported Memory Types Memory: DDR5-SDRAM • Number of Memory Slots: 4 • Memory Slot Type: DIMM • Memory Channel Support: Dual Channel • ECC Compatibility: ECC or Non-ECC • Maximum Memory Capacity: 256 GB • Unbuffered Memory: Yes

Memory Drivers

• Supported Drive Types: HDD & SSD • Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III • Number of supported storage drive sizes: 7 • RAID service: Yes • RAID levels: 0, 1, 10

Graphics

• Parallel processing support: Not supported • Maximum resolution: 3840 x 2160 px • HDCP: Yes

Internal I/O

• Number of USB 2.0 ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1): 3 • Number of SATA III connectors: 4 • Front panel audio connector: Yes • ATX power socket (24-pin): Yes • CPU fan connector: Yes • Number of CPU fan connectors: 2 • Number of case fan connectors: 3 • EPS power connector (8-pin): Yes • Number of EPS power connectors (8-pin): 1 • TPM connector: Yes • 12V power connector: Yes • RGB LED: Yes • Number of RGB LED connectors: 1

Rear panel I/O ports

• Number of USB 2.0 ports: 4 • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1 • Number of Ethernet LAN (RJ-45) ports: 1 • Number of HDMI ports: 1 • HDMI version: 2.1 • Number of DisplayPorts: 1 • DisplayPort version: 1.4 • Headphone Outputs: 3 • Line-in: Yes • Microphone: Yes • WiFi-AP Antenna Jack: 2 • Supported USB Type: USB Type-A, USB Type-C

Network

• Wired LAN: Yes • Ethernet Interface Type: 2.5 Gigabit Ethernet • LAN Controller: Dragon RTL8125BG • Wi-Fi: Yes • Basic Wi-Fi Standard: Wi-Fi 7 (802.11be) • Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) • Bluetooth: Yes • Bluetooth Version: 5.4

Features

• Motherboard Chipset: AMD B850 • Audio Chipset: Realtek ALC1220 • Audio Output Channels: 7.1 channels • Product Color: White • Motherboard Form Factor: Micro ATX • Motherboard Family: AMD • Supported Windows Operating Systems: Windows 10 x64, Windows 11 x64 • Certifications: FCC, CE, ErP/EuP

Expansion Slots

• PCI Express x4 (Gen 4.x) Slots: 1 • PCI Express x16 (Gen 5.x) Slots: 1 • Number of M.2 (M) Slots: 3 • 1. largest M.2 key size: 2280 • 1. M.2 highest PCI Express generation: 5.0 • 2. M.2 largest key size: 2280 • 2. M.2 highest PCI Express generation: 4.0 • 3. M.2 largest key size: 2280 • 3. M.2 Highest Generation PCI Express: 4.0

BIOS

• BIOS Type: UEFI AMI

Weight and Dimensions

• Product Width: Product Depth • 244 mm: 244 mm

Package Contents

• Cables: SATA • Antenna Included: Yes • Screws Included: Yes • M.2 Stand Included: Yes
