Asrock B550M Phantom Gaming 4 Motherboard

? ASRock B550M PHANTOM GAMING 4 – Gaming power and style in a microATX form factor!

ASRock B550M PHANTOM GAMING 4 is a motherboard that combines aggressive design with solid performance and stability – built with gamers and AMD enthusiasts in mind. With support for 3rd, 5th, 7th, and 9th Gen Ryzen processors, DDR4 support up to 128GB, and robust connectivity, it's ready for any AM4-based gaming setup.

? Versatile and Powerful – Built for Ryzen Processors

With an AM4 socket and AMD B550 chipset, this motherboard supports a wide range of AMD processors, offering the right processing power for esports competitions, content creation, and everyday multitasking.

? DDR4 up to 128GB – Fast and Reliable RAM

Four DIMM slots support up to 128GB of DDR4 memory with OC speeds of up to 4533MHz. This is ideal for gamers who demand smooth gaming and operating system performance without compromise.

? PCIe 3.0 + 1x M.2 – Fast Data Access

Equipped with three PCIe x16 slots and one M.2 slot for NVMe SSDs, the board allows for flexible builds with lightning-fast access to the system and games. SATA III supports additional HDDs and SSDs for even greater capacity.

? Gigabit LAN – a reliable and stable wired connection

The integrated Realtek RTL8111H chip provides a solid network connection with full Wake-on-LAN support – ideal for uninterrupted online gaming and remote working.

? Full 7.1 audio support – for an immersive experience

The integrated sound chip supports 7.1 surround sound, offering precise sound reproduction and acoustic impressions – perfect for FPS games, movies, and streaming.

? HDMI 2.1, DisplayPort 1.4, USB 3.2 ports – full multimedia readiness

Thanks to the presence of HDMI 2.1 and DisplayPort 1.4, you can connect modern high-resolution monitors, while four USB 3.2 Gen 1 Type-A ports ensure fast data transfer from peripherals.

? Effective cooling and Phantom Gaming style

With three fan connectors, the system cools efficiently and quietly. Stylish design with Phantom Gaming accents and RGB lighting makes the board look as good as it performs.

✅ Why choose ASRock B550M PHANTOM GAMING 4?

• Supports AMD Ryzen 3-9 (AM4) • DDR4 up to 128GB, OC up to 4533MHz • PCIe x16, M.2, 4x SATA III • HDMI 2.1, DisplayPort 1.4, 4x USB 3.2 Gen 1 • LAN Gigabit Realtek RTL8111H • Audio 7.1 and HDCP support • Phantom Gaming style in a compact microATX form factor

​​

Specification

Processor

• Processor manufacturer: AMD • Socket CPU: Socket AM4 • Processor: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 • Maximum number of SMP processors: 1

Memory

• Supported memory types: DDR4-SDRAM • Number of memory slots: 4 • Memory slot type: DIMM • Memory channel support: Dual-channel • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3800 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4200 MHz, 4266 MHz, 4333 MHz, 4400 MHz, 4466 MHz, 4533 MHz • Maximum Memory Capacity: 128 GB • Unbuffered Memory: Yes

Memory Drivers

• Supported Drive Types: Supported Hard Drive Interfaces • HDD & SSD: Serial ATA III

Graphics

• Maximum resolution: 5120 x 2880 px • HDCP: Yes • DirectX version: 12.0

Internal I/O

• Number of USB 2.0 ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 • Number of SATA III connectors: 4 • Front panel audio connector: Yes • ATX power socket (24-pin): Yes • CPU fan connector: Yes • Number of case fan connectors: 3 • TPM Connector: Yes • 12V Power Connector: Yes • RGB LED: Yes

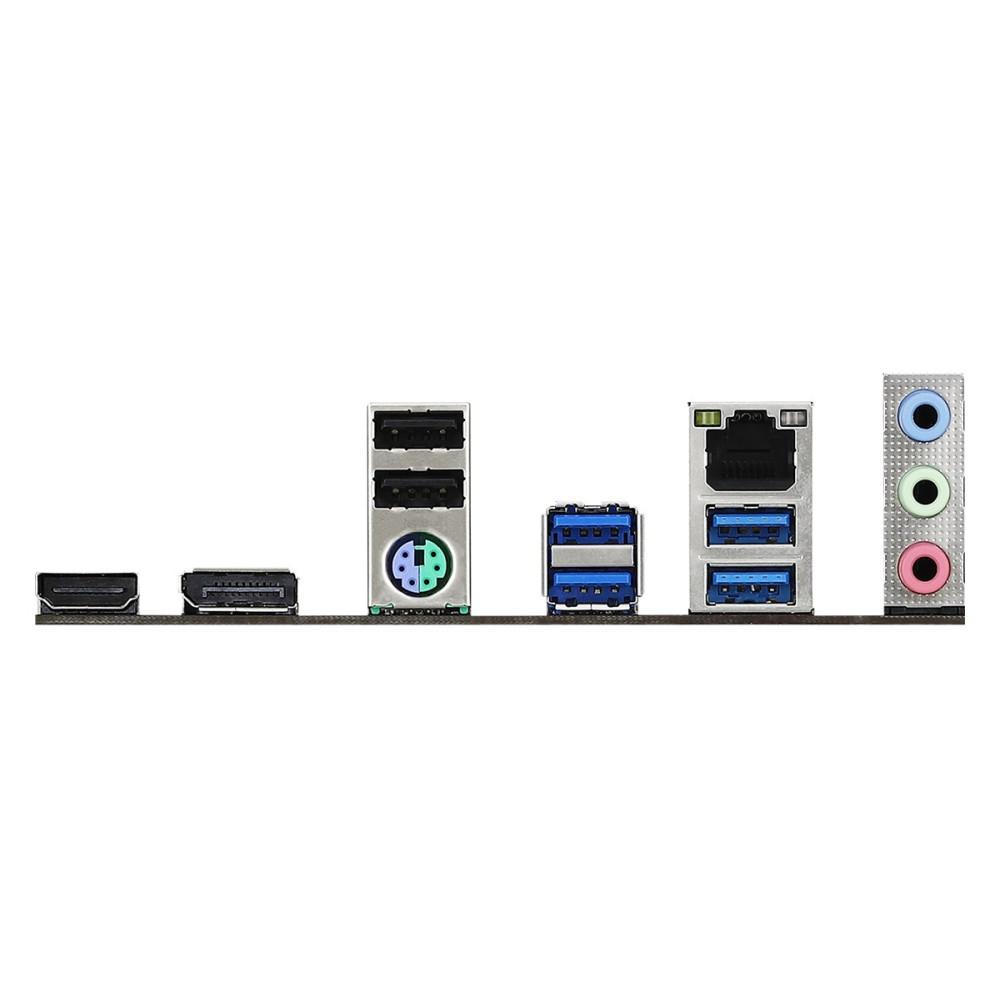

Back Panel I/O Ports

• Number of USB 2.0 Ports: 2 • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 4 • Number of Ethernet LAN (RJ-45) Ports: 1 • Number of PS/2 Ports: 1 • Number of HDMI Ports: 1 • HDMI Version: 2.1 • Number of DisplayPorts: 1 • Version DisplayPort: 1.4

Network

• Wired LAN: Yes • Ethernet Interface Type: Gigabit Ethernet • LAN Controller: Realtek RTL8111H • Wake-On-LAN: Yes • Wi-Fi: No

Features

• Motherboard Chipset: AMD B550 • Audio Output Channels: 7.1 Channels • PC Health Monitoring: Fan, Temperature, Voltage • Motherboard Form Factor: Micro ATX • Motherboard Chipset Family: AMD • Supported Windows Operating Systems: Windows 10 x64 • Overclocking Capabilities: FCC, CEErP/EuP

Expansion Slots

• PCI Express x1 (Gen 3.x) Slots: 1 • PCI Express x16 (Gen 3.x) Slots: 3 • Number of M.2 (M) Slots: 1

BIOS

• BIOS Type: UEFI AMI

Weight and Dimensions

• Product Width: 244 mm • Product Depth: 244 mm

Package Contents

• Cables: Includes drivers • SATA: Yes
