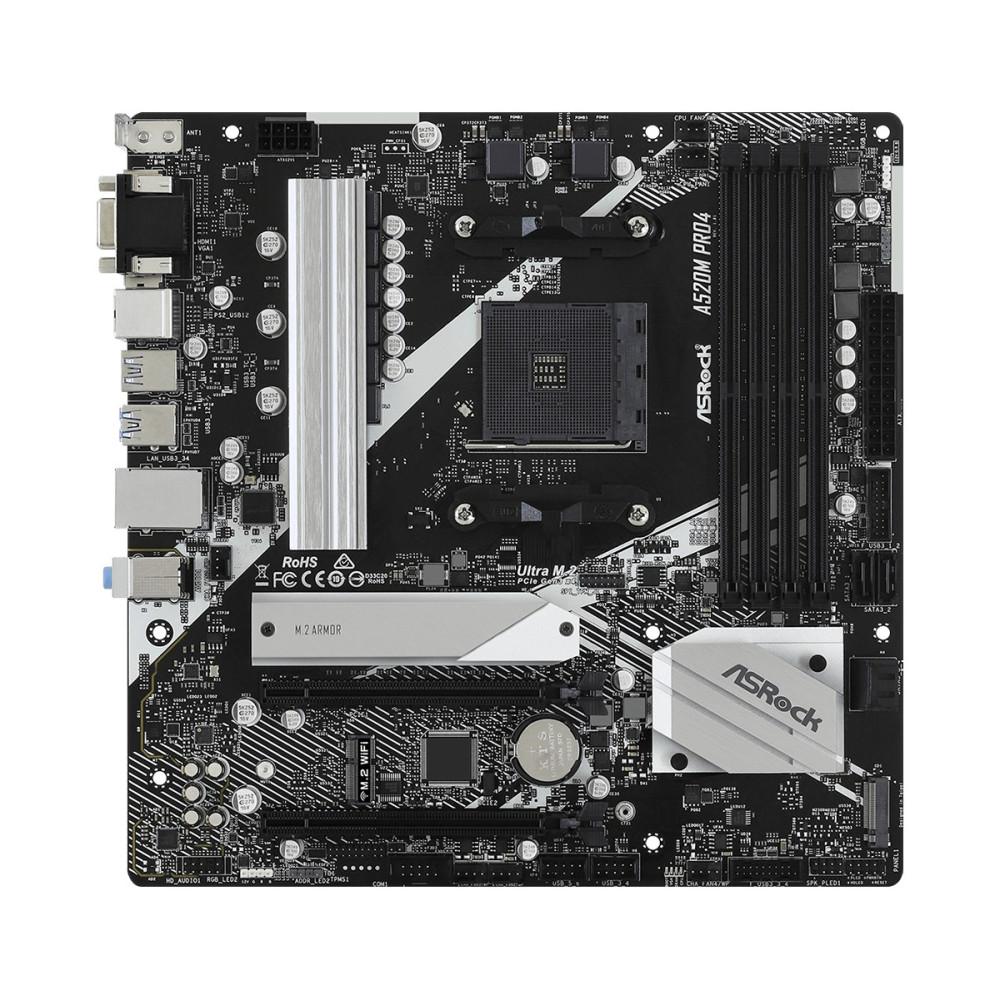

Asrock A520M Pro4 Motherboard

ASRock 90-MXBDU0-A0UAYZ Micro ATX motherboard

✔️ Asrock A520M PRO4 motherboard Socket AM4 micro ATX ✔️

Asrock A520M PRO4. Processor manufacturer: AMD, Processor socket: Socket AM4, Processor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum memory capacity: 64 GB, Memory slot type: DIMM. Supported hard drive interfaces: M.2, SATA III. Graphics adapter family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

✏️ The most important technical parameters:

• Data carrier - Number of supported HDDs: 5 • Ports and interfaces - Number of VGA (D-Sub) ports: 1 • Processor - Processor manufacturer: AMD • Processor - Processor socket: Socket AM4 • Processor - Processor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 • Memory - Supported memory types: DDR4-SDRAM • Memory - Number of memory slots: 1 • Memory - Memory slot type: DIMM • Memory - Memory channel support: Dual channel • Memory - No correction code: Yes • Memory - Supported memory clock speeds: 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666 Mhz • Memory - Maximum Memory Capacity: 64 GB • Memory Drivers - Supported Hard Drive Interfaces: M.2, SATA III • Graphics - Graphics Adapter Family: AMD • Graphics - Parallel Processing Support: Not Supported • Graphics - Graphics Card: Radeon Vega • Internal I/O - Quantity USB 2.0 Ports: 2 • Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1 • Internal I/O - Front Panel Audio Connector: Yes • Back Panel I/O Ports - Number of USB 2.0 Ports: 2 • Back Panel I/O Ports - Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 4 • Back Panel I/O Ports - Number of Ethernet LAN (RJ-45) Ports: 1 • Back Panel I/O Ports - Number of PS/2 Ports: 1 • Back Panel I/O Ports - Number of Ports HDMI: 1 • Network - Wired LAN: Yes • Network - Ethernet Interface Type: Gigabit Ethernet • Network - LAN Controller: Realtek RTL8111H • Network - Wi-Fi: No • Features - Audio Chip: Realtek ALC1200 • Features - Audio Output Channels: 7.1 channels • Features - Intended Use: PC • Features - Motherboard Type: micro ATX • Features - Motherboard Chipset Family: AMD • Management Features - Wake-On-LAN: Yes • BIOS - BIOS Type: UEFI AMI • Weight and Dimensions - Product Width: 230 mm • Weight and Dimensions - Product Depth: 201 mm • Technical Details - Harmonized System (HS) Code: 84733020 • Classification - Manufacturer's Code: A520M Pro4 • Classification - EAN: 4710483932076 • Classification - Product ID: 86093132

​​
