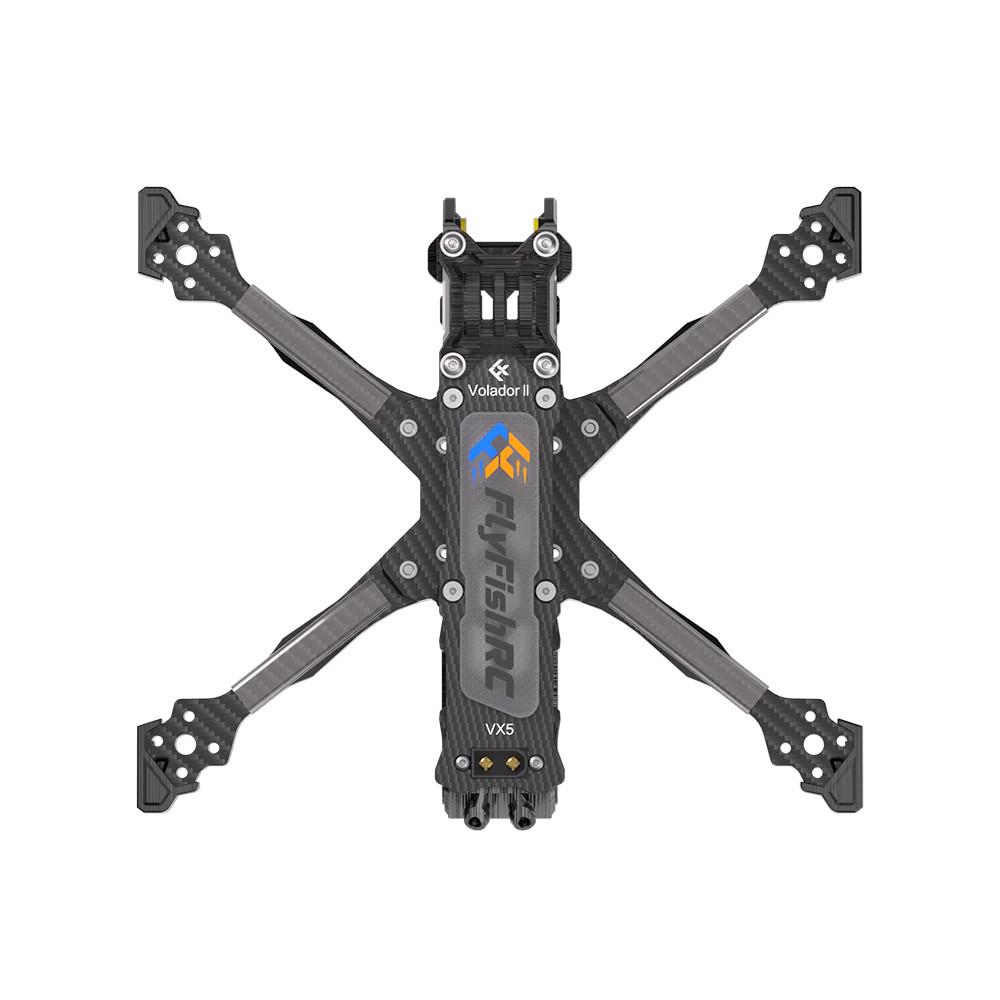

Flyfish Rc Volador Ii Vx5 Freestyle T700 Dji O4 Pro Frame Black

FlyFish RC Volador II VX5 DJI O4 Pro Freestyle T700 Frame

is a 5-inch FPV frame in a Squashed X configuration, constructed from T700 carbon fiber with CNC aircraft aluminum components,

designed for merciless freestyle and flying in venues (bando).

The second generation of this popular frame introduces dedicated silicone shock absorbers for the DJI O4 Air Unit Pro system, an integrated XT60 connector at the frame's tail,

and a significant weight reduction over the V1 version—all to build the cleanest looking and most durable stack without compromise.

Key Features and Benefits

• T700 Carbon Fiber with 6mm Arms: Exceptional crash resistance at a minimal weight of 177.4g - the frame can withstand the toughest impacts during bando bashing, and the interchangeable arms keep repair costs to a minimum.

• Dedicated Silicone Shock Absorbers for DJI O4 Air Unit Pro: Eliminates vibrations transferred to the camera, ensuring jello-free DVR recordings without additional modifications - plug-and-play for the O4 Pro system.

• Integrated Connector XT60 at the tail of the frame: The power cable is routed away from the propellers, almost completely eliminating the risk of it being damaged in a hard landing or crash - no more burning cables from the propellers.

• CNC aluminum camera shield plates: Protects the camera from direct impact in a crash, while being lighter than the previous generation thanks to the redesigned side plate profile.

• 5mm keystone (anti-vibration wedge): An additional structural element, eliminated in the V1, that effectively dampens arm resonance - the result is a cleaner tune and a quieter image from the FPV camera.

• 12.9 grade hardware with factory-applied Loctite: Highest quality screws strength class with protection against loosening from the box - saves assembly time and increases safety during flight.

• Compatibility with 20x20 mm and 30.5x30.5 mm stacks: High flexibility when building - fits virtually any FC/ESC stack available on the market, both mini and full-size.

Parameter | Value

Manufacturer / Brand | FlyFish RC (FlyFishRC)

Model | Volador II VX5

System Variant | O4 Pro (DJI O4 Air Unit Pro)

Configuration | Squashed X (VX)

Propeller Size | 5 – 5.1 inch

Wheelbase (Wheelbase) | 225 mm

Overall dimensions | 177 mm × 165 mm

Weight (with TPU parts) | 177.4 g

Main material | T700 carbon fiber

Arm Thickness | 6 mm

Top Plate Thickness | 2.5 mm

Middle Plate Thickness | 2.5 mm

Bottom Plate Thickness | 2.5 mm

Wedge Thickness (Keystone) | 5 mm

Side Plate Thickness (Carbon) | 2 mm

CNC Aluminum Side Plate Thickness | 5 mm

Stack Mounting Holes | 20×20 mm / 30.5×30.5 mm (M3)

VTX Mounting Holes | 20×20 mm / 25.5×25.5 mm (M2)

Motor Mounting Holes | 16×16 mm (φ 3 mm)

FPV Camera Mounting Spacing | 19 mm / 20 mm

Color | Black

Hardware Class | 12.9 (with pre-applied Loctite)

• FlyFish RC Volador II VX5 Freestyle T700 Frame DJI O4 Pro Black x1

Avifly Expert Tip: The Volador II VX5 in the O4 Pro variant is ready for a stack up to 30.5x30.5mm – it works perfectly with, for example, the Mamba F722 + 45A ESC combo or the SpeedyBee F405 V4 stack. Due to the low weight of the frame (177.4g), it is worth aiming for motors in the 2306–2207 range, which will provide a balance between maneuverability and punch-out when powered by 4S/6S. If you plan to record on an external action camera, check the availability of dedicated top plates with a GoPro mount from FlyFish RC – this eliminates the need to print your own adapters. Color: nan Size: nan
