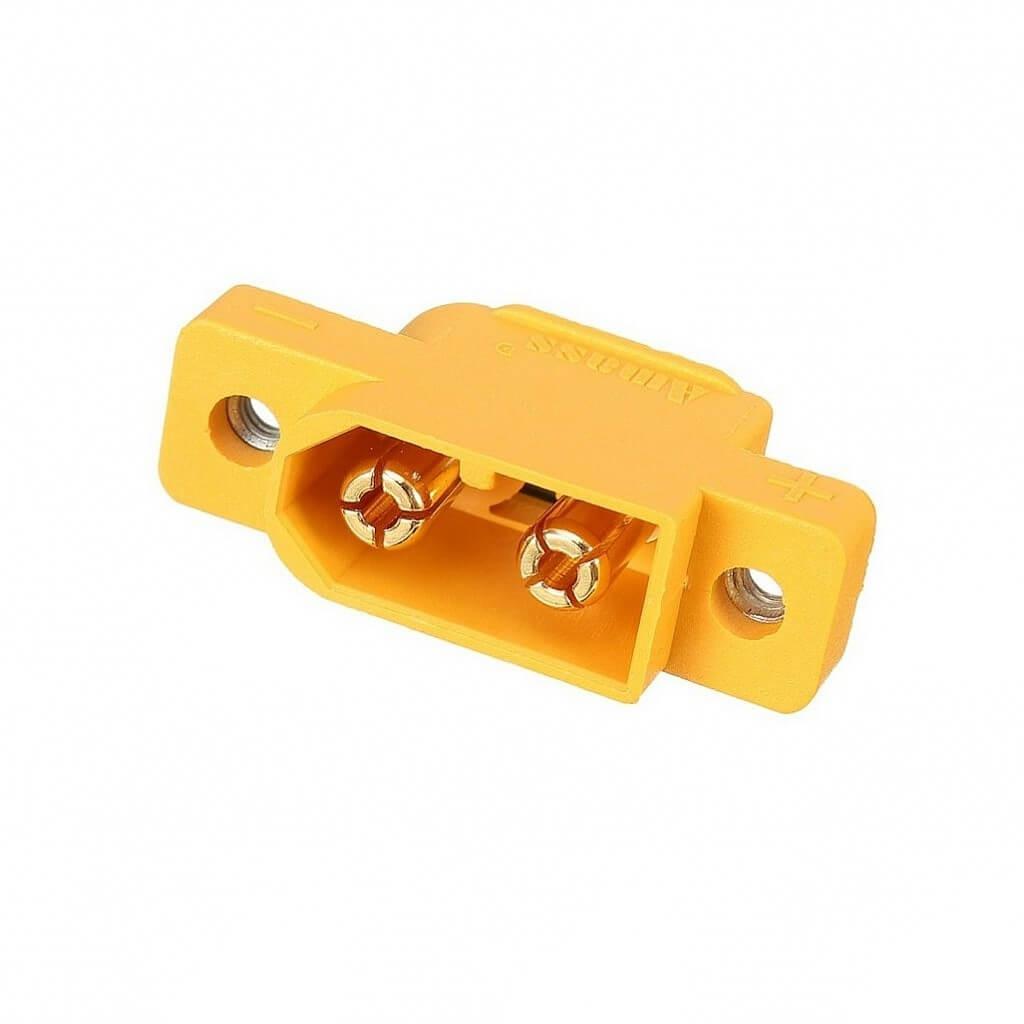

AMASS XT60E-M 35A Male Panel Connector

AMASS XT60E-M is an XT60 series male power connector designed for permanent mounting in a panel, enclosure or device chassis. The two-hole M2.5 flange allows for stable mounting of the connector, and the soldered pins enable a durable wire connection.

Who is this connector for?

• I am installing a permanent XT60 power socket in an enclosure, panel, or RC device.

• I need a male XT60 connector with a mechanical two-screw fastening.

• I am installing an installation with parameters not exceeding 35 A and 80 V DC.

Who is this NOT for?

• I need a female XT60 connector.

• I am looking for a standard wire plug without a mounting flange.

• The installation exceeds the rated current or voltage of the connector.

• Rated current 35 A with 12 AWG wire and manufacturer's test conditions

• Rated voltage 80 V DC - for low-voltage DC power systems

• Two M2.5 mounting holes - stable mounting in a panel or enclosure

• Gold-plated brass contacts - contact resistance not exceeding 1.2 mΩ

• Polyamide PA housing with flammability rating UL94 V-0

• Clear polarity markings reduce the risk of incorrect connection

• Yellow - manufacturer's marking XT60E-M.G.Y

• Black - manufacturer's marking XT60E-M.G.B

• Manufacturer: AMASS

• Model: XT60E-M

• Series: XT60

• Connector Type: Panel, Male

• Number of Contacts: 2

• Rated Current: 35 A at 12 AWG

• Rated Voltage: 80 V DC

• Insulation Resistance: Minimum 2000 MΩ

• Contact Resistance: Maximum 1.2 mΩ

• Connection Method: Soldering

• Housing Material: Polyamide PA

• Contact Material: Brass

• Contact Plating: Gold

• Flammability Class: UL94 V-0

• Operating temperature: from -20 to 120 C

• Declared connection durability: 100 cycles

• Salt mist resistance: 48 hours according to GB/T 2423.17-2008

• Environmental compliance: RoHS 2.0, REACH

• Dimensions: approx. 27.10 x 16.70 x 12.10 mm

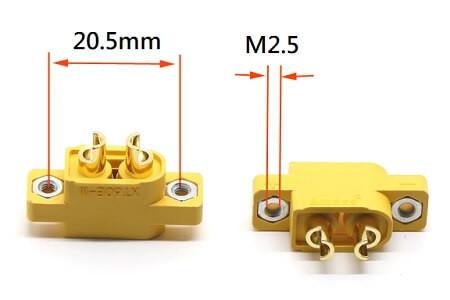

• Mounting hole spacing: 20.50 mm

• Mounting holes: 2x M2.5

• Color: yellow or black, depending on the variant

• 1x AMASS XT60E-M panel connector in the selected color

Most common Asked Questions

Does the XT60E-M fit a standard female XT60 connector?

Yes. The XT60E-M is a male XT60 series connector designed to mate with a compatible female XT60 connector.

Are the wires crimped or soldered?

The electrical pins are designed for soldering. The manufacturer specifies a current rating of 35A for 12 AWG wire configurations.

Can the connector be mounted directly to a chassis?

Yes. The flange has two M2.5 holes spaced 20.50mm apart, allowing the connector to be screwed to a prepared panel or chassis.

• Do not exceed the rated current of 35 A or the voltage of 80 V DC.

• Do not connect or disconnect the connector under load.

• Use within a temperature range of -20 to 120 C, away from moisture and aggressive chemicals.

Avifly Expert Tip: When soldering, use a soldering iron with an appropriate power reserve and heat the terminal as briefly as possible. Prolonged heating can soften the housing and change the contact position. Color: nan Size: M
