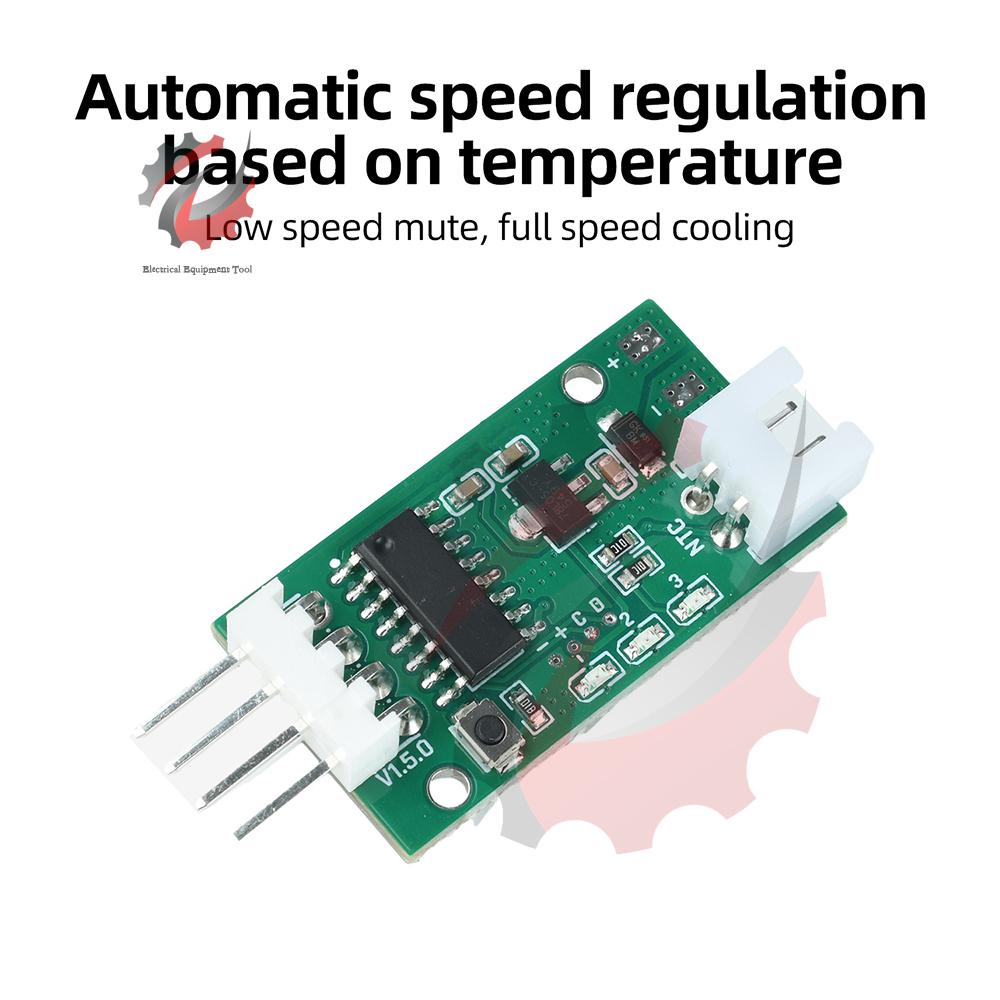

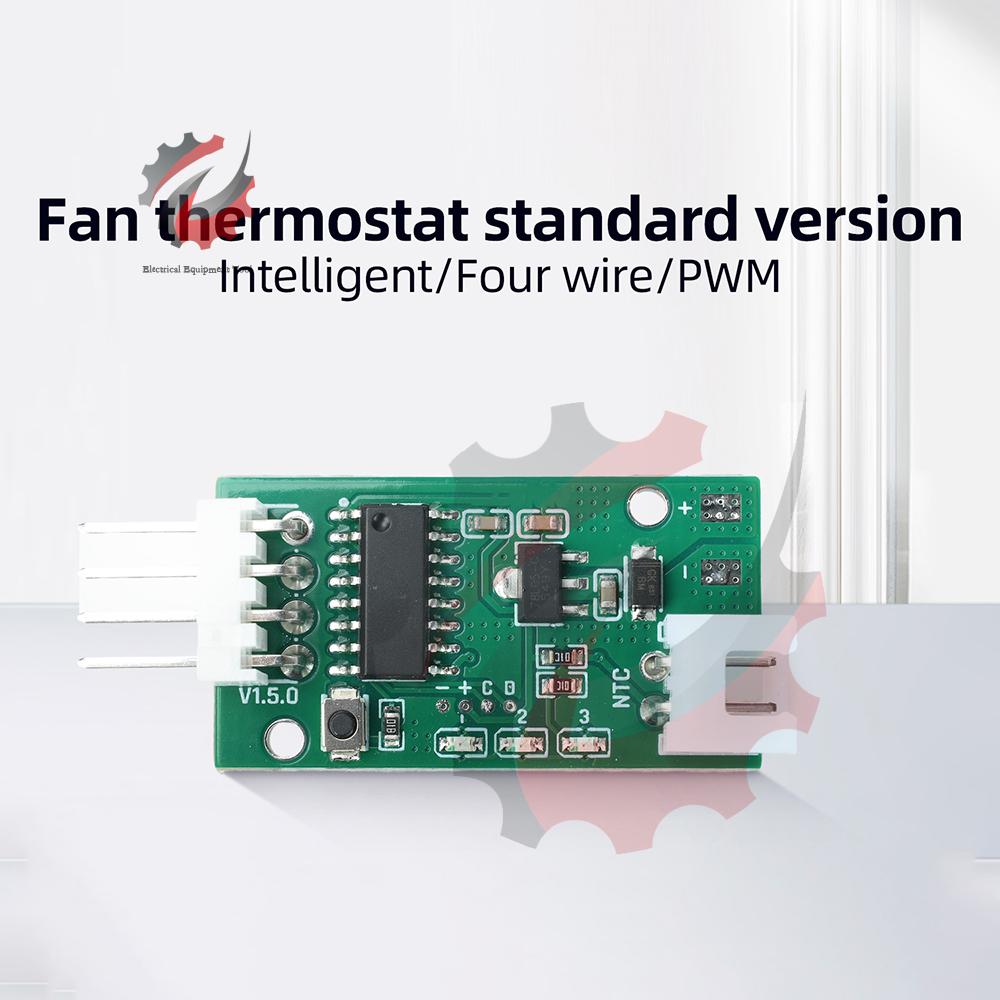

PWM Fan Speed Controller Temperature Regulator for 5V 12V 4-Wire Fans with 343 Modes Auto Adjustable Quiet Efficient Cooling

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Electronic : No Material : Plastic Size : Motor Controller Type : Motor Controller Model Number : Motor Controller DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Output Voltage : Motor Controller Style : Motor Controller Certification : NONE

Features: 1. Compatible with 5V/12V four-wire fans, suitable for a wide range of scenarios 2. Automatically adjusts speed based on temperature—quiet at low speeds, efficient cooling at full speed 3. Users can the activation temperature, activation duty cycle, and temperature difference for full-speed operation 4. 343 combination modes to accommodate a variety of scenarios 5. Precise four-wire PWM speed control for quiet and efficient operation

Product Specifications Product Name: Fan Temperature Controller Supported Fans: 5V/12V standard 4-wire PWM fans (does not support 2- or 3-wire fans) Input Voltage: 5–15V (input and output are connected in series; note the fan’s voltage rating) Fan Current: Less than 2A (For high current, it is recommended to connect the fan interface directly to the power supply) Fan Connector: MX2.54 3+1P semi-back-to-back (B3 terminal) Standby Power Consumption: 10mW (5V); 25mW (12V) Temperature Sensor: NTC 50K B=3950 PWM signal: 25 kHz, Vpp = 5 V

Temperature Control Strategy 343 combination modes Parameter settings: Activation temperature, activation ratio, full-speed temperature difference 1. Activation temperature: {35, 40, 45, 50, 55, 60, 65} // Default 45°C 2. Start Ratio: {20, 25, 30, 35, 40, 50, 60} // Default 25°C 3. Full-Speed Temperature Differential: {5, 10, 15, 20, 30, 40, 50} // Default 20°C Delayed Shutdown: Operation stops when the temperature drops to 3°C below the start temperature Example: With a start temperature of 45°C, a start percentage of 25%, and a full-speed temperature difference of 20°C, the fan starts at 25% when the temperature rises to 45°C, runs at full speed once it reaches 65°C (45 + 20), and stops when the temperature drops to 42°C.

Package Contents Temperature-controlled speed regulator *1 10 cm epoxy resin probe *1
