5A Buck Converter Module DC 5-30V to 3.3V/5V/8.4V 60W Peak Power Industrial Grade Synchronous Step-Down Power Supply

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Electronic : No DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Certification : NONE

Features: 1. Wide input voltage range DC 5–30V, compatible with diverse power scenarios 2. Continuous 5A high-current output, peak power up to 60W, strong load capacity 3. Synchronous rectification buck architecture, low ripple, minimal temperature rise, stable and reliable operation 4. Wide operating temperature range -40℃ to 85℃, industrial-grade design for harsh environments 5. Versatile applications for industrial control, automotive, RC models, surveillance, and more

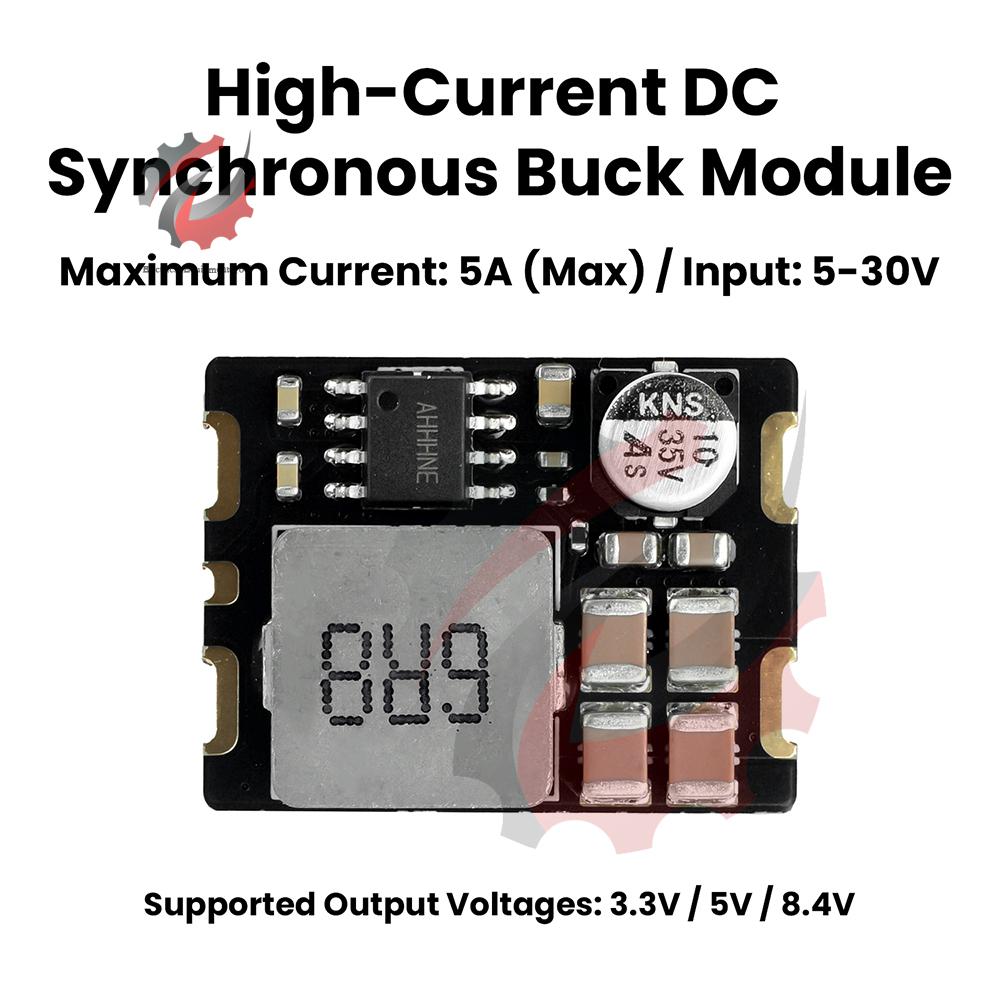

Product Specifications: Product Name: 5A Buck Module Input Voltage: DC 5–30V (Input voltage > Output voltage + 2V) Output Voltage: 3.3V/5V/8.4V (Fixed output, non-adjustable) Voltage Accuracy: ±0.1V from set reference Output Current: 5A Max Output Power: 30-60W (affected by voltage and temperature) Operating Frequency: 500kHz Conversion Efficiency: 80-98% (affected by voltage and power) Control Method: EN Pull-Up/Pull-Down Operating Temperature: -40°C to 85°C Application Fields: Industrial control equipment, RC models, servos, surveillance, automotive, communication devices, LED lighting, etc.

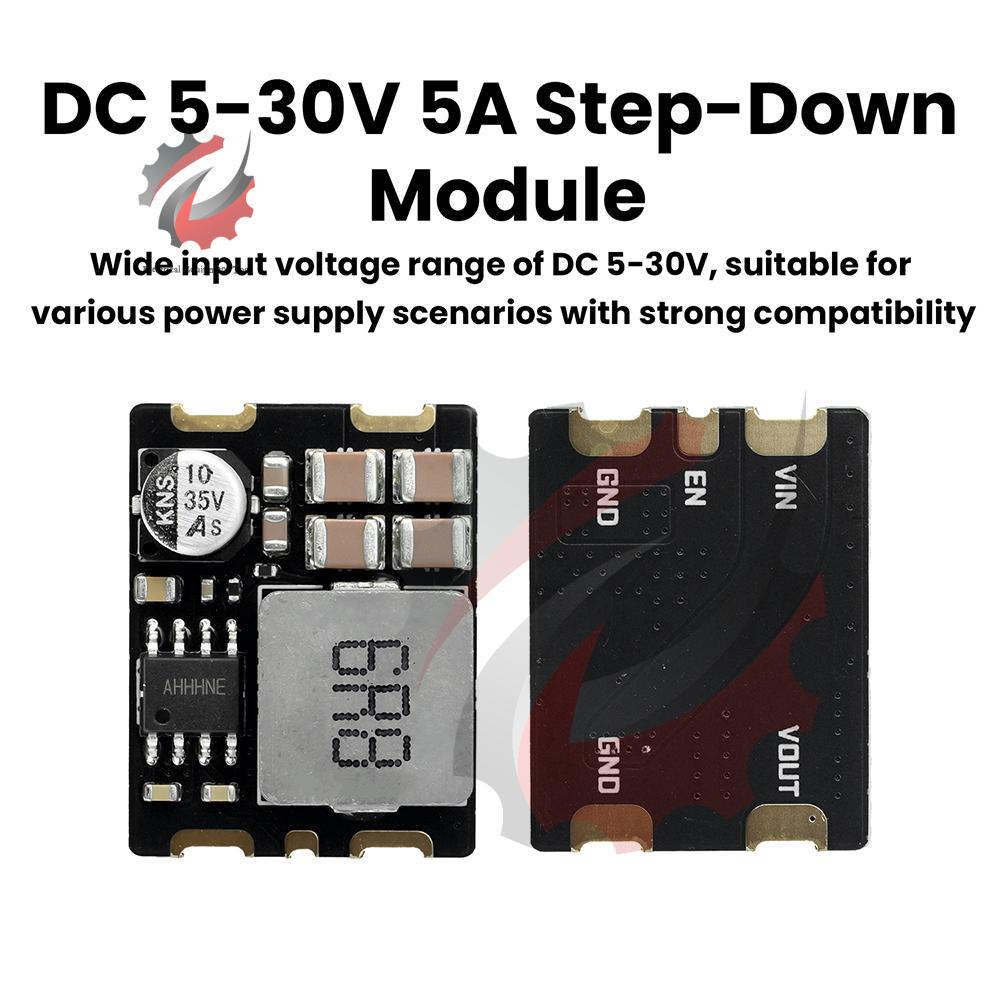

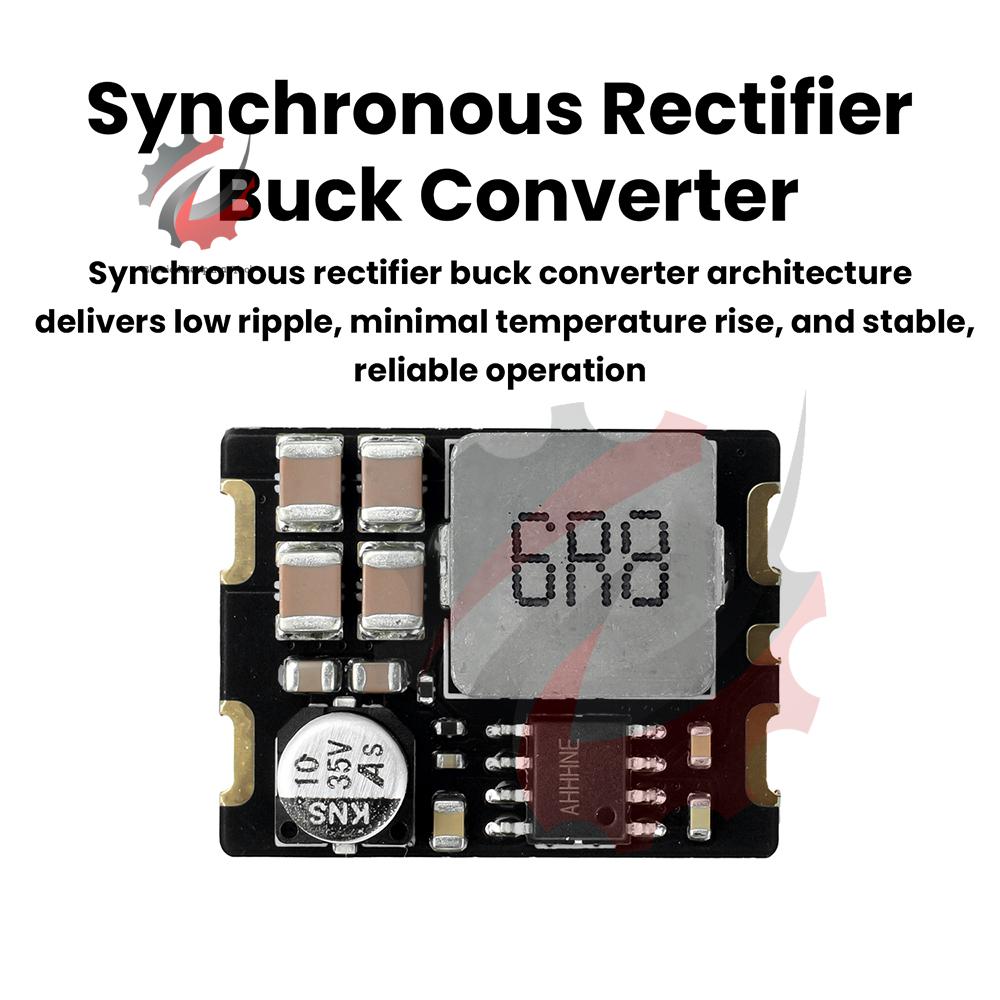

Description: The module employs a synchronous buck design, delivering low output ripple and stable performance. Featuring a typical buck converter structure with a 5-30V input range, it provides up to 5A output current and is available in multiple output versions: 3.3V, 5V, and 8.4V. The module can be directly surface-mounted on a PCB to power on-board devices and includes a dedicated enable interface for user configuration.

Shipping Contents: Module x1 Capacitor x1 label:yes
