H3Y-2-SZ LED Digital Time Relay Power-on Delay Controller DC 12V 24V AC 220V Timer Timing Time Relays Universal Base Socket

EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Power Source : DC Theory : Time Relay is_d : Yes Model Number : H3Y-2-SZ LED Digital Time Relay Power-on Delay Controller Brand Name : Aideepen Voltage : 220V Origin : Mainland China Certification : NONE Use : General Purpose Product model : H3Y-2-SX Product Name : Time relay Voltage : DC12V 24V 220V Time range : 0.1S-99H Time error : 1% Power consumption : Max.1.5VA Environmental temperature : -25-75 ℃ Permissible voltage range : 90% -110% of rated voltage

Product features

1. PC casing, fire and high temperature resistant

2. LED high-definition screen, more intuitive digital display panel

3. Silver contacts, stable performance, oxidation resistance, and high work efficiency

4. Large capacity pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and corrosion resistance, and good conductivity

5. There are three delay modes: N1 power-on delay mode, N2 delay release mode, and N3 cycle delay mode

Product parameters

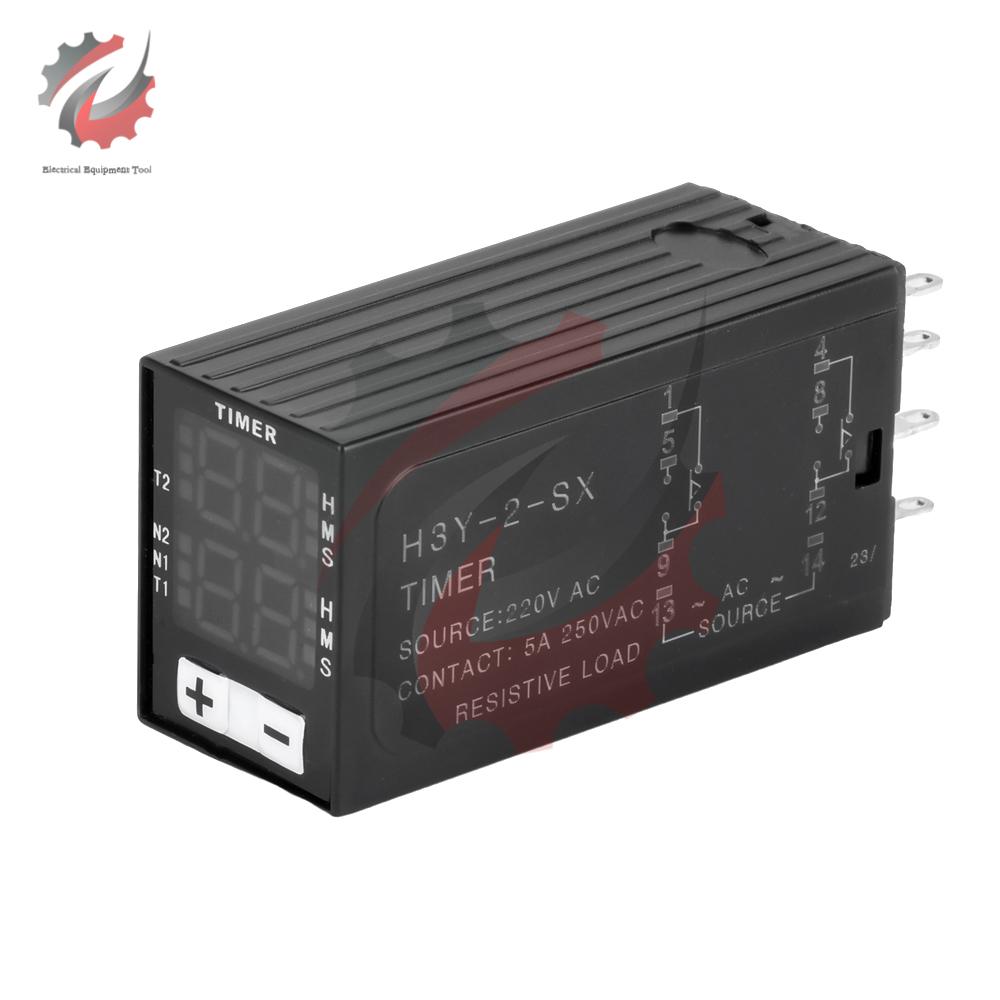

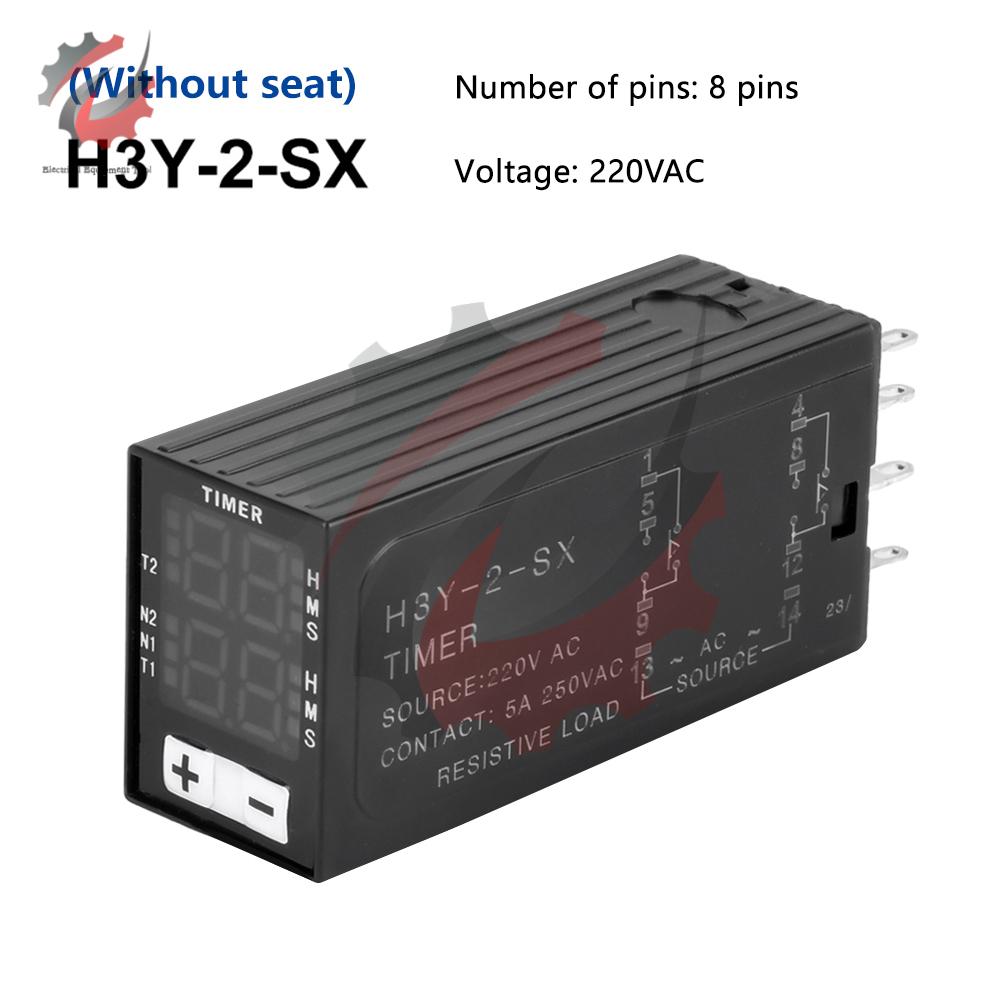

Product model: H3Y-2-SX (8 pins/2 open and 2 closed)

Product Name: Time Relay

Voltage: DC12V 24V 220V (optional)

Time range: 0.1S-99H

Time error: 1%

Power consumption: Max.1.5VA

Environmental temperature: -25~75 ℃

Permissible voltage range: 90-110% of rated voltage

Set operation instructions

Mode Description: N1 mode represents power on delay, N2 represents delayed release, T1 and T2 represent cyclic delay

Working mode: Press and hold the+and - keys for more than 3 seconds, then click the - key to change the working mode

Time base setting: Press and hold the+key for more than 3 seconds to enter, click the+key to change the time specification. Click the - key in loop mode to change the T2 time specification

Numerical setting: Click the+key to increase the time, and click the - key to decrease the time. Press and hold the - key for 3 seconds in cycle mode to enter the T2 value setting

Extension explanation: No operation for more than 5 seconds, save current settings and exit

Important note: When using a set of instantaneous contacts to achieve circuit self-locking, please set the mode to N2 and then wire according to Figure 2, which is simpler and more reliable

Shipping List

Package 1:

Time relay * 1

Package 2:

Base * 1 label:yes

Material: paper
