Semi-finishedproduct : No
Data Record : No
High-concerned chemical : none
Electronic : No
Material : Plastic
Size : Power Module
Type : Power Module
Model Number : Power Module
DIY Supplies : Electrical
Brand Name : Aideepen
Origin : Mainland China
Output Voltage : Power Module
Style : Power Module
Certification : NONE
Features:
1. Wide input voltage range of 6–30 V with a stable ±5 V synchronous output, easily solving power supply challenges
2. No-load ripple < 6 mV; light-load positive ripple ≈ 10 mV, suitable for high-density circuits
3. Theoretical peak current of 3 A; recommended continuous operating current of 1 A, balancing power and stability
4. Made with high-quality materials and featuring built-in overcurrent and thermal shutdown protection for long-term durability

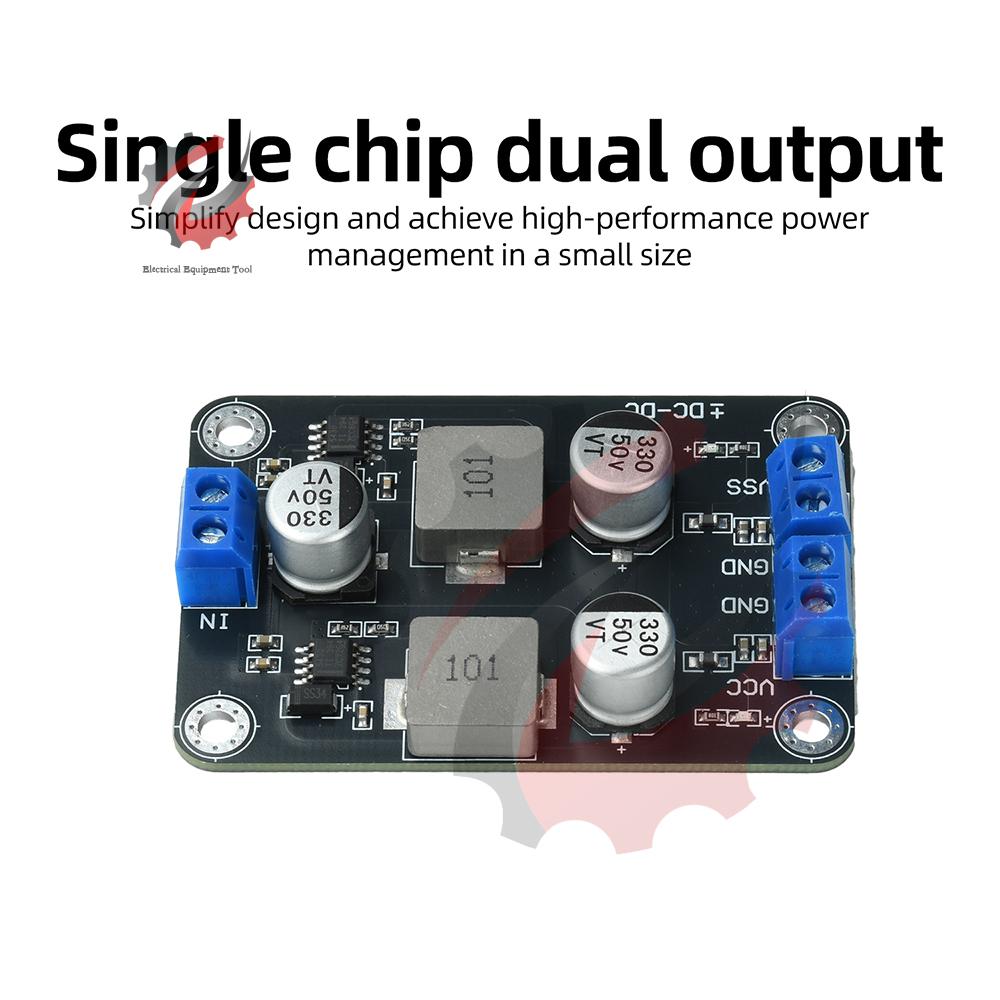

5. Single-chip dual-output design simplifies engineering and delivers high-performance power management in a compact form factor
Product Specifications
Module Name: TPS5430 Module
Module Type: Switching Power Supply (Single-Supply to Positive/Negative Output)
Input Voltage Range: 6V–30V (Buck converter; input must be at least 2V higher than output)
Output Voltage Range: ±5V
Output Current: 1A
Switching Frequency: 500 kHz
Product Introduction
1. Maximum Output Current: 1A.
According to the official data sheet, the theoretical maximum output current is 3A; however, at this level, the chip will generate heat and output voltage ripple will increase. Therefore, when power consumption exceeds 6W, to ensure normal module operation, please be sure to install a heat sink for the TPS5430 chip to dissipate heat and prevent unnecessary damage. The recommended maximum output current is 1A.
2. Module Efficiency: The higher the input voltage, the lower the power supply’s output efficiency; power supply efficiency also decreases as the load decreases; efficiency on the negative voltage side is lower than that on the positive voltage side.
For example, with a 12V input and a ±5V output, when the output is connected to a 10Ω load, the efficiency on the +5V output side is no less than 82%, and the efficiency on the -5V output side is no less than 75%.
3. Module Output DC Voltage Ripple
With a 12V input and ±5V output, the ripple is less than 6 mV under no-load conditions. When the output is connected to a 10Ω load, the ripple on the +5V output is approximately 10 mV, and the ripple on the -5V output is approximately 40 mV.
The higher the input voltage, the greater the ripple; the heavier the load, the greater the output ripple.
Package Contents
Module × 1
label:yes
