Does it include wireless functionality? : No
Does it include a Battery? : No
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
High-concerned chemical : none
is_d : Yes
Coil Structure : Toroidal
Model Number : High Voltage Generator
Coil Number : Autotransformer
Phase : SINGLE
Brand Name : Aideepen
Origin : Mainland China
Certification : NONE

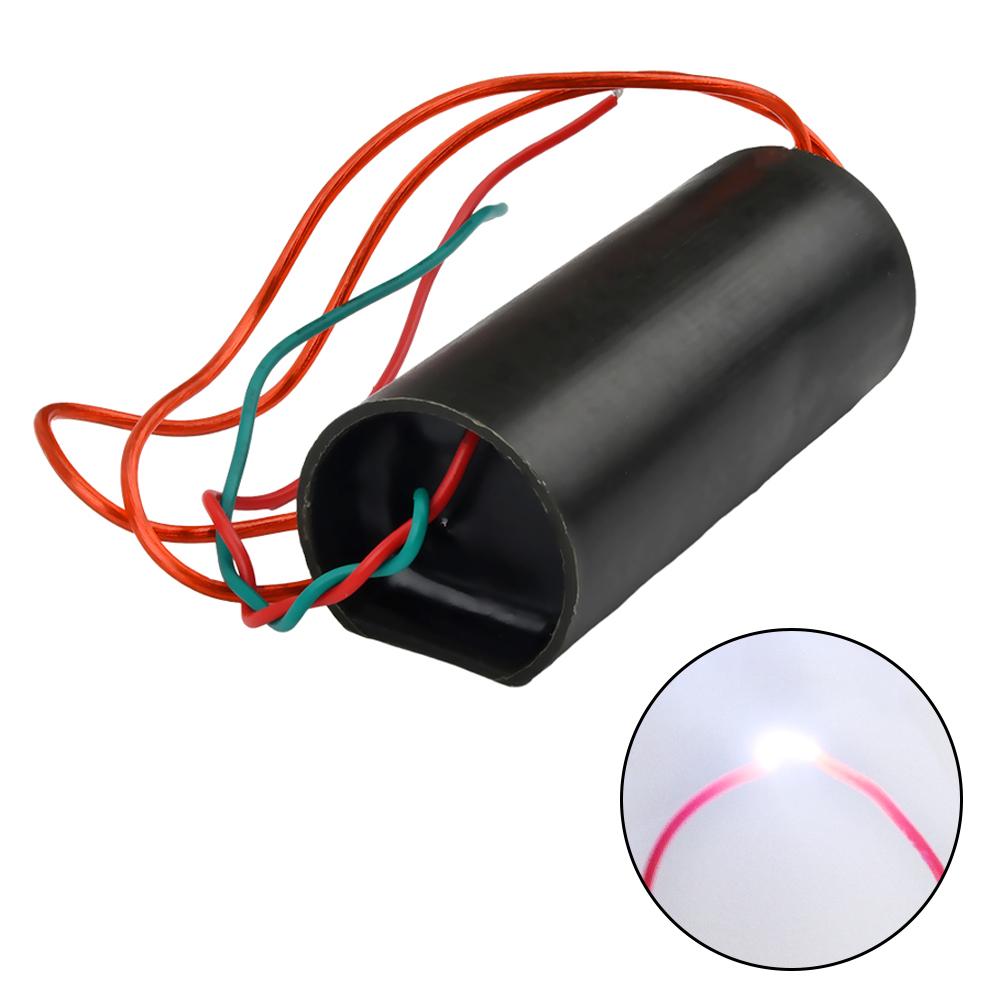

1 : DC3-6V 700KV Boost Step Up Power Module
2 : High Voltage Generator Pulse
Product selling points:
1.100% new high-quality products.
2. Made of high-quality materials, durable and practical.
3. Small size, high efficiency, and intense discharge intensity.
4. Efficient and stable performance.
5. Widely applicable.
Product Parameters:
parameter

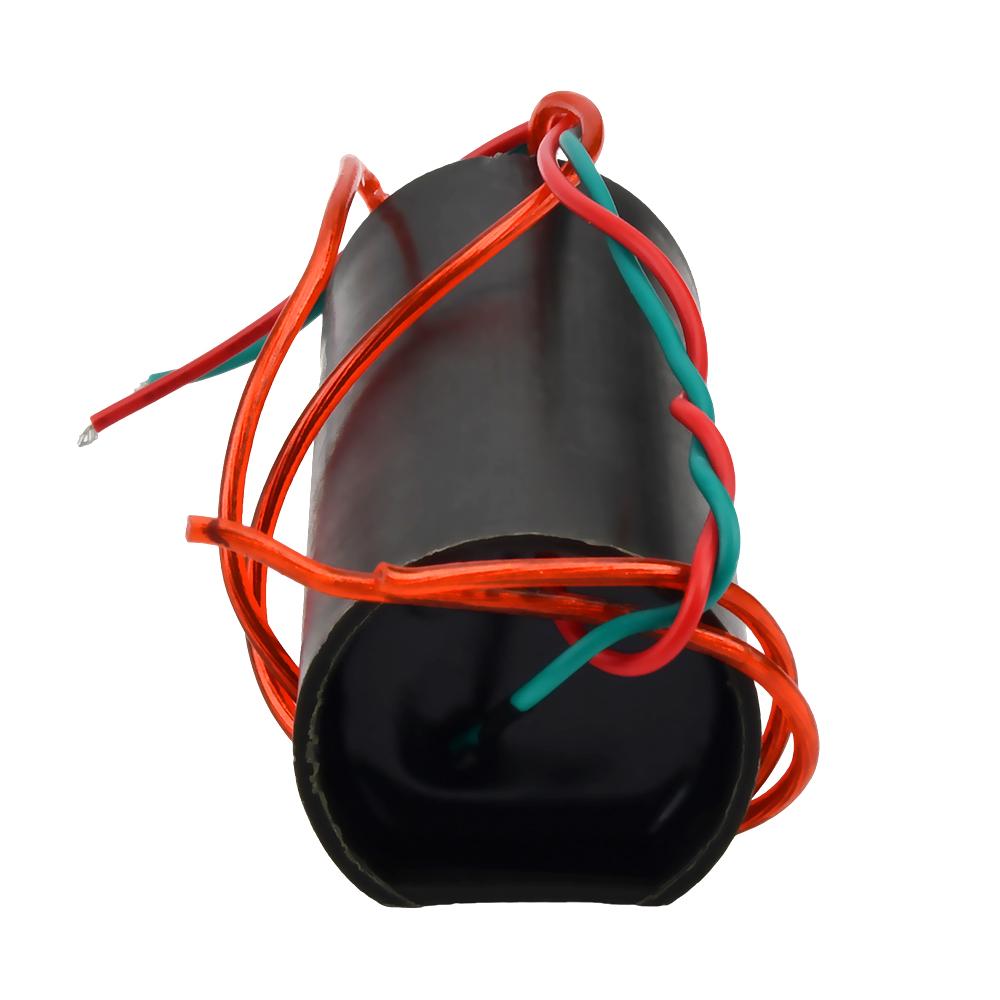

Volume: 68mm in length, maximum diameter 27.7mm, minimum diameter 25.6mm
Input voltage: DC3-6V
Input current: 2A-5A (voltage dependent)
Input line length: 100mm or more,
Output line length: above 90mm
Structure: Integrated high and low voltage
Kind Reminder:
Working mode: Intermittent work, input 3V or above, continuous work should not exceed 5 seconds. 3V or below allows for longer working hours. (Note: High voltage equipment that allows long-term continuous operation belongs to large laboratory instruments)
This product is a finished module for a scientific small-scale high-voltage inverter transformer/booster. After inputting DC3V~6V voltage at the input end, it can obtain a DC high voltage of about 700KV (about 1cm arc) at the output end. It can be used as a high voltage source for middle school science popularization experiments, electronic instruments, negative ion generators, and scientific small-scale production.
This high-voltage module is made using the Tesla coil principle, which outputs high-voltage current. It has a small size, high efficiency, and simple peripheral circuit (just connect the switch and battery). The discharge intensity is strong.
The method to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage during arc pulling. If it is around 6V, the maximum power output can be achieved
A small capacity lithium battery is connected in series with two batteries at 7.2V (preferably a single battery), and the voltage drops to around 4V at the moment of arc measurement. The smaller the capacity, the lower the voltage. So it is recommended to use lithium batteries with a capacity of 2000mA or higher, and if possible, it is best to use batteries with a capacity of 4000mA or higher.
Note:
The high-voltage module should not work for a long time, and it is recommended not to exceed 5 seconds each time it is powered on. It is best to use intermittent ignition. Due to the strong output power, it is necessary to use rechargeable batteries or batteries to drive it. Our store is not responsible for any damage to this high-voltage module caused by improper voltage and prolonged operation. (Keep the ignition distance within one centimeter)
Each module will undergo rigorous testing and be shipped out in good condition before shipment.
Package List:
High voltage generator * 1
