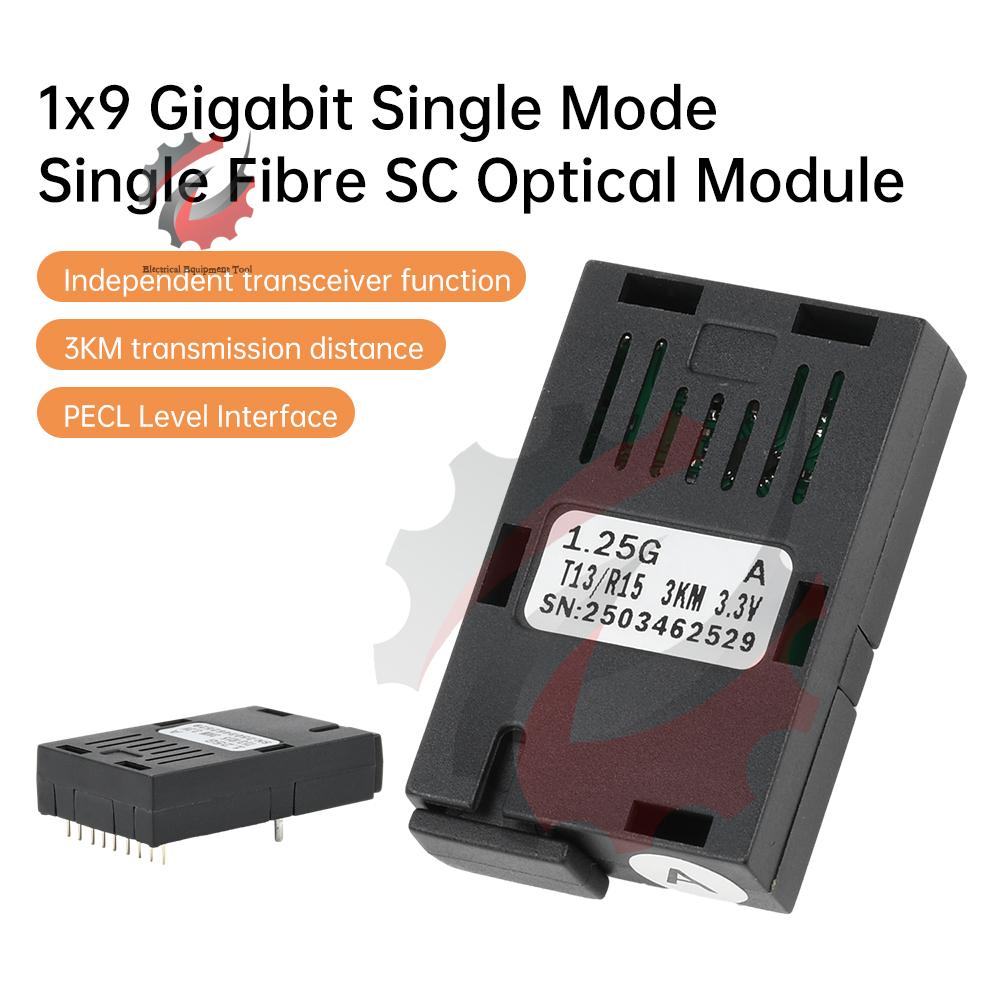

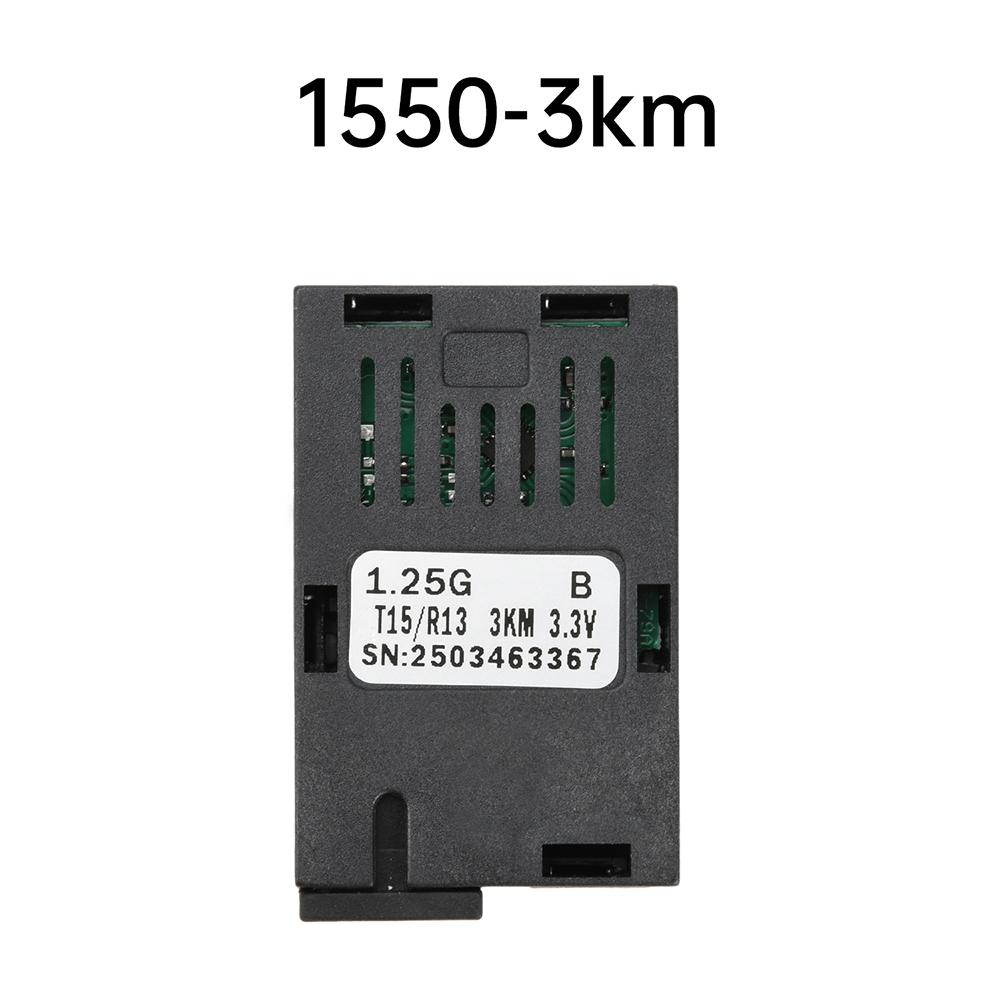

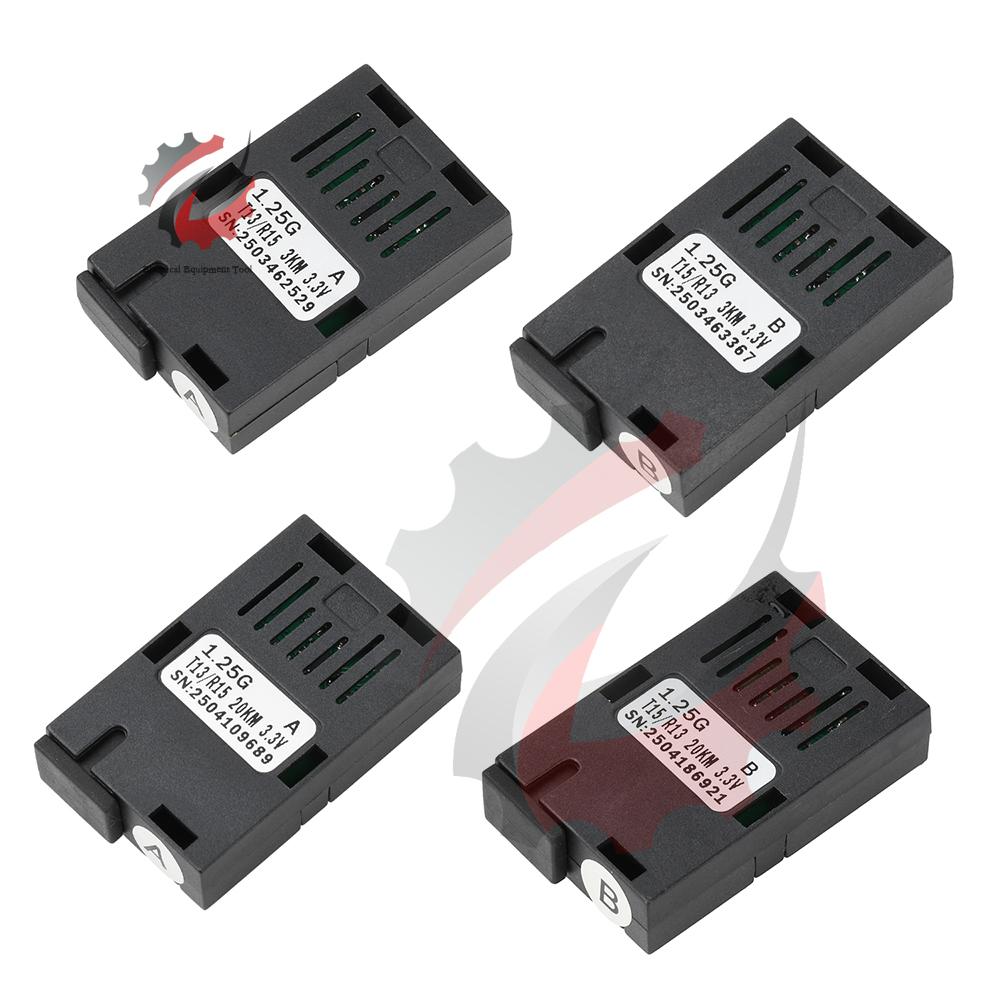

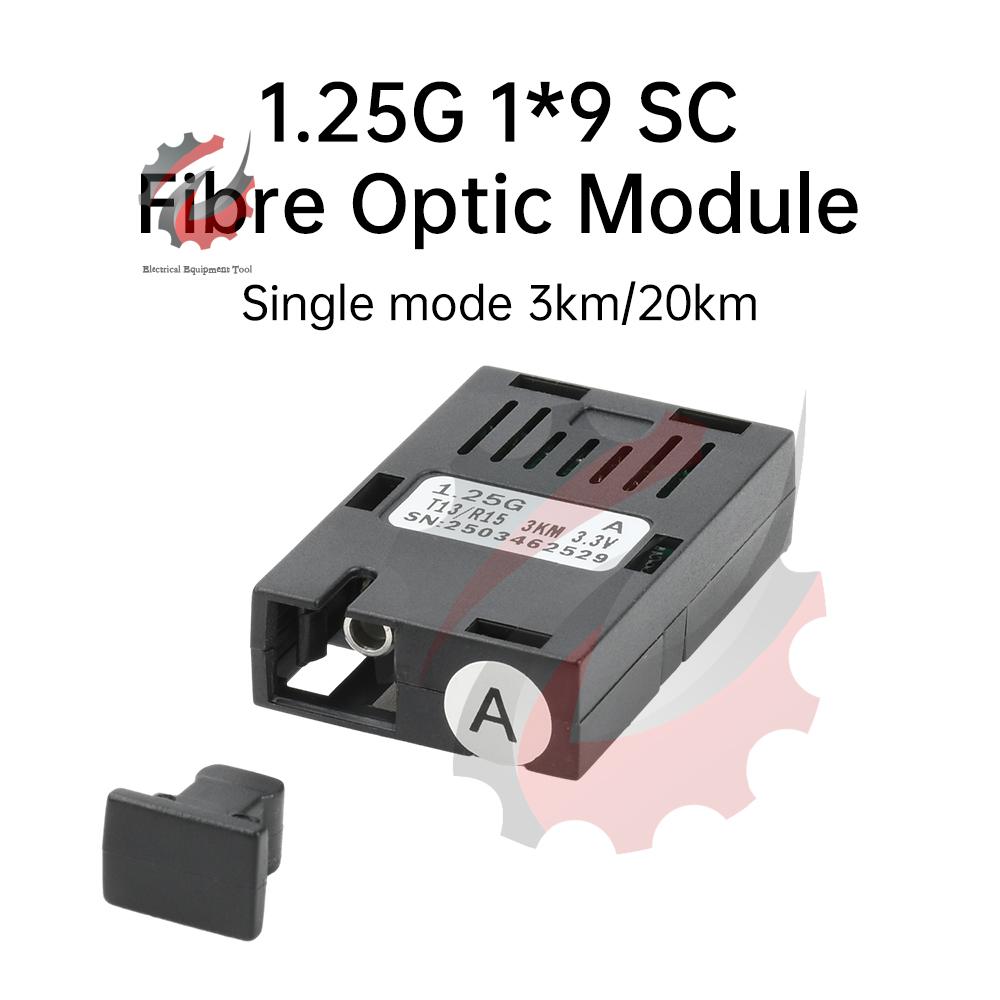

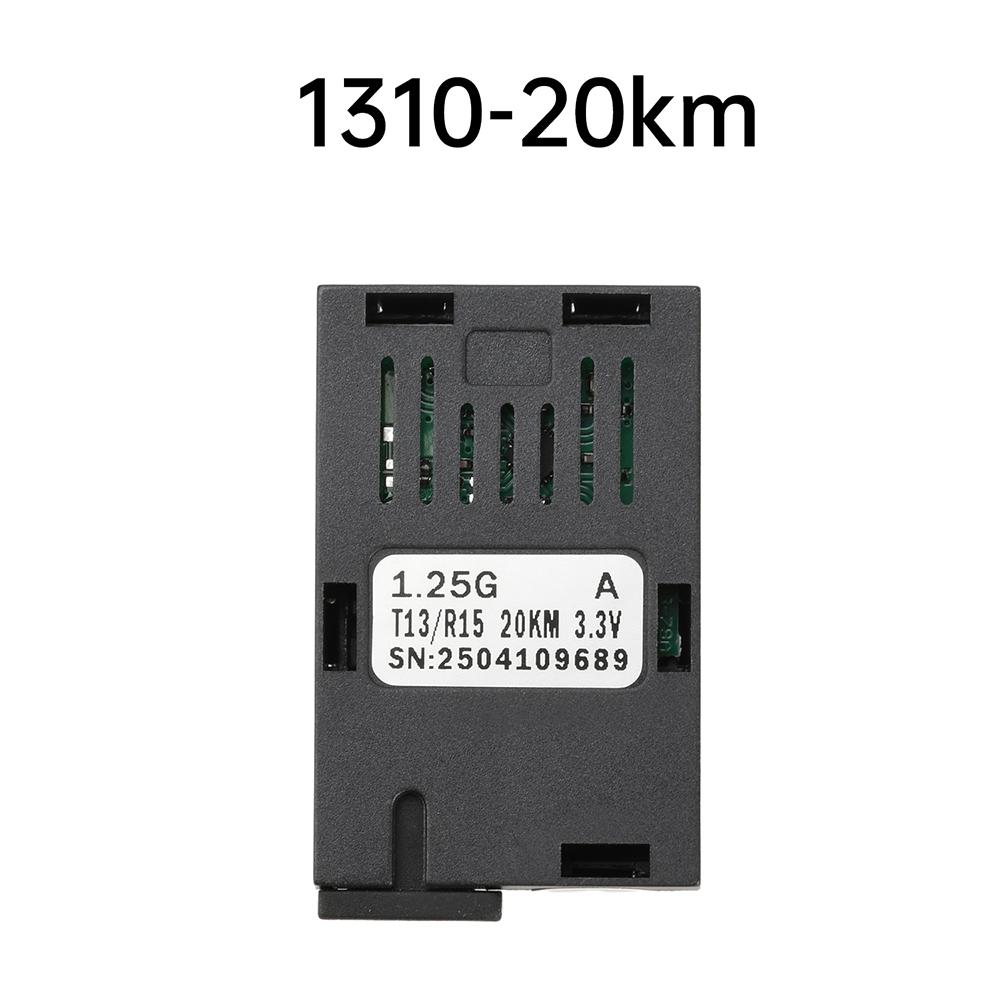

1.25G 1x9 SFP Fiber Optic Module 1000M Gigabit SC Single Mode Single Fiber 1310nm/1550nm 3KM/20KM

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Shape : others Electronic : No Material : Plastic Size : Communication Module Type : Communication Module Model Number : Communication Module DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Output Voltage : Communication Module Style : Communication Module Certification : NONE

Features: 1. Single-fiber dual-wavelength technology: WDM technology is adopted to simultaneously complete the 1310nm and 1550nm transceiver 2. Save fiber resources: single-fiber module design, significantly reduce the cost of fiber optic use 3. Ultra-long transmission distance: support 3KM/20KM transmission to meet the needs of a variety of scenarios 4. Independent transceiver function: transmitter and receiver work independently to ensure the stability of data transmission 5. Widely applicable fields: applicable to Gigabit Ethernet, video optical transceiver and printing equipment Parameter: Product name: 1.25G fiber optic module Power supply voltage: DC 3.3V power supply Interface type: SC plug type Transmission distance: 3KM/20KM Transmission wavelength: 1310/1550 (nm) Transmission mode: optical fiber Transmit power: 1.25 (dbm) Interface level: PECL level Pin: Standard 1X9 pin package Application areas: Gigabit fiber optic Ethernet, video optical transmitter, spray printing equipment, Fiber Channel conversion Description: Dual-wavelength multiplexing single-fiber transceiver module, transmitter and receiver work independently. Single-fiber module has only one port, the internal use of WDM technology to complete the 1310nm and 1550nm receiving and transmitting at the same time, so the module must be used in pairs, and its biggest advantage is to save fiber optic resources. The following are some common wavelengths: A-end - transmitter: Tx1310/Rx1550nm End B - Receiver: Tx1550/Rx1310nm Note: 1. Pair use is A-terminal-B-terminal, not A-terminal-A-terminal/B-terminal-B-terminal. 2. When the optical module is not in use, please put on the dust plug of the optical port to avoid the optical port getting dusty and affecting the optical communication. Package include: Module x1 label:yes

Product Name: RJ45 Connector Interface: Gigabit interface Feature 1: Netwerk Lan,Adapter Extender Feature 2: RJ45 Connector,Uitbreiding Converter Feature 3: Ethernet Adapter,Lan Cable Extension Connector Size: 2*2.1*3.6cm Color: Red,Green,Blue,White,Black
