Semi-finishedproduct : No
Data Record : No
High-concerned chemical : none
Electronic : No
Material : Plastic
Size : Communication Module
Type : Communication Module
Model Number : Communication Module
DIY Supplies : Electrical
Brand Name : Aideepen
Origin : Mainland China
Output Voltage : Communication Module
Style : Communication Module
Certification : NONE
Features:

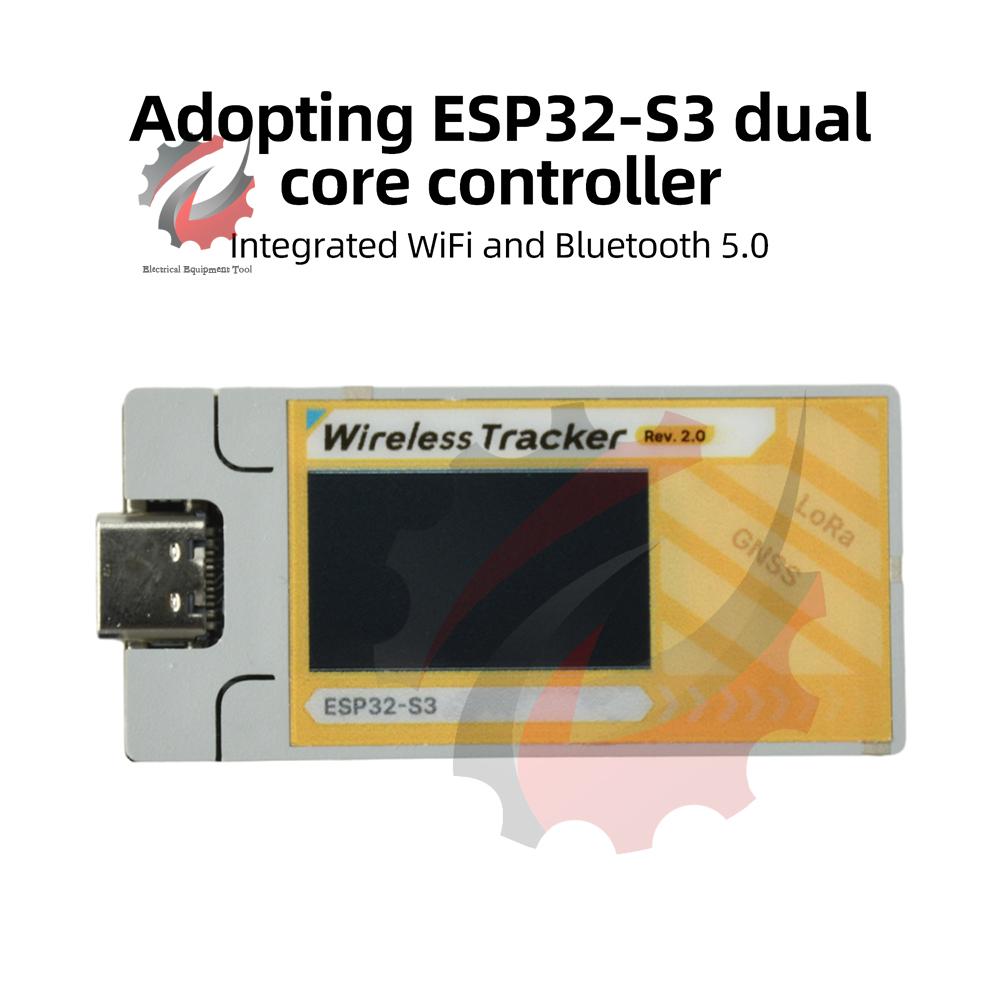

1. Features an ESP32-S3FN8 dual-core controller with integrated Wi-Fi and Bluetooth 5.0
2. LoRa long-range transmission with 28dBm high power output and -134dBm receive sensitivity

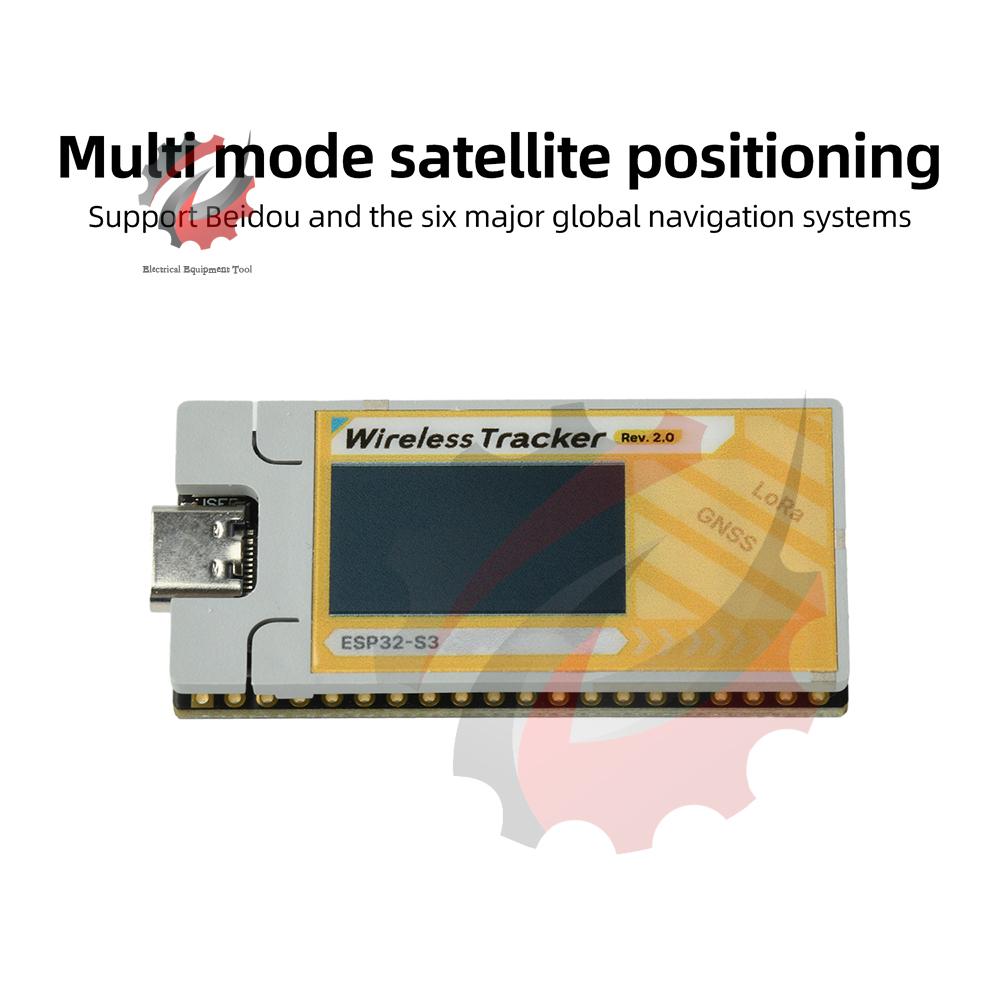

3. Multi-mode satellite positioning supporting BeiDou and the world’s six major navigation systems

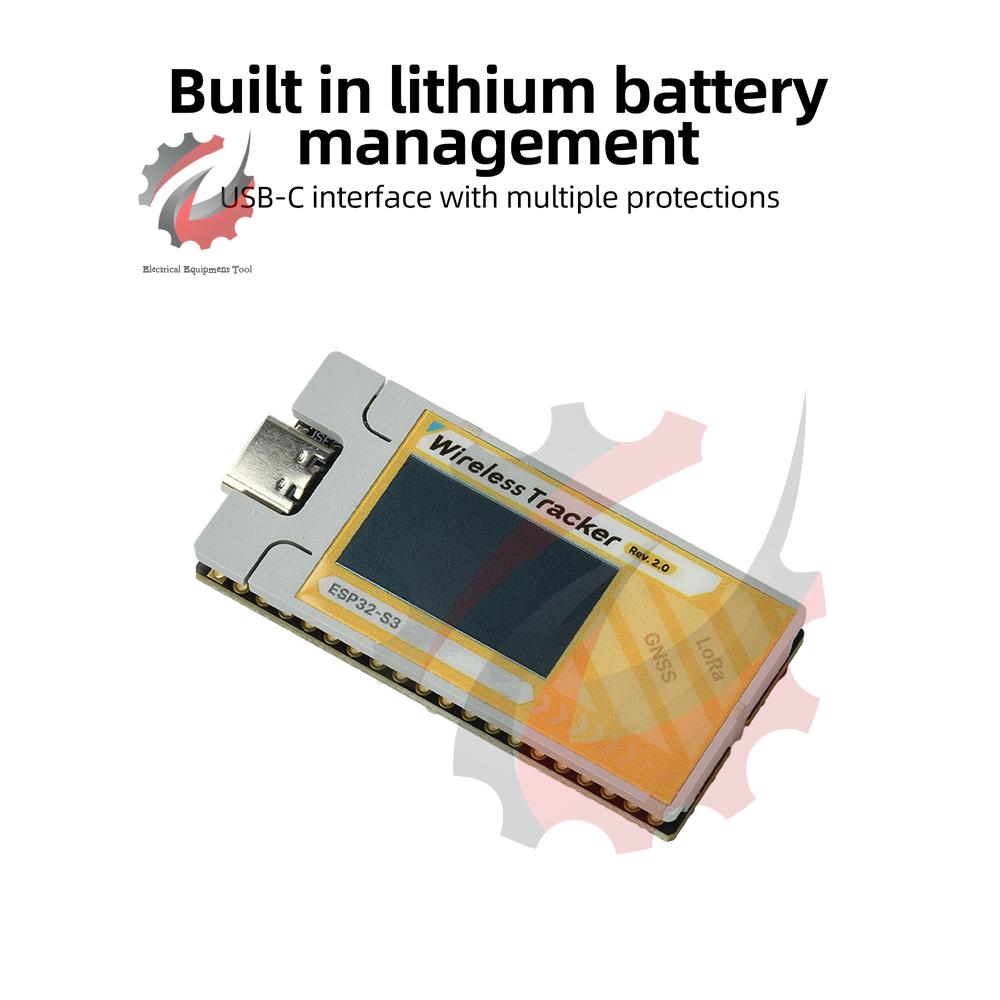

4. Built-in lithium battery management and a USB-C port with multiple safety protections

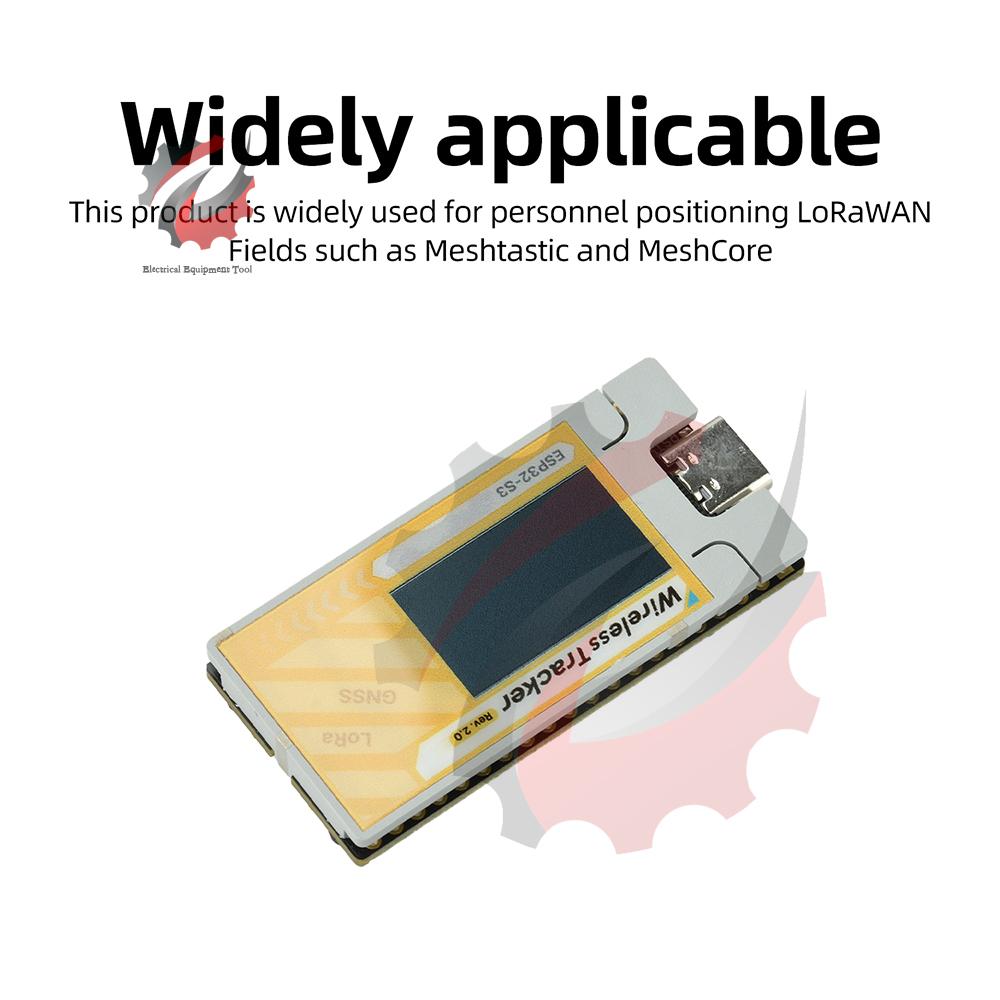

5. This product is widely used in personnel tracking, LoRaWAN, Meshtastic, and MeshCore applications
Product Introduction:
Wireless Tracker v2 utilizes the ESP32-S3FN8 controller chip, integrated with the SX1262 and UC6580, supporting Wi-Fi, Bluetooth, LoRa, and Global Navigation Satellite Systems (GNSS). It features a built-in power amplifier (PA) with a transmission power of up to 28±1 dBm.
Wireless Tracker v2 is built around the ESP32-S3FN8, integrating the SX1262 LoRa chip and the UC6580 GNSS chip. This next-generation Wireless Tracker V2 includes a built-in power amplifier, delivering a maximum transmission power of 28±1 dBm. Its low-noise amplifier (LNA) can be bypassed without affecting reception performance. The Wireless Tracker V2 employs laser direct structuring (LDS) antenna technology for both the GNSS and 2.4 GHz bands, significantly reducing the device’s size. This product is widely used in applications such as personnel tracking, LoRaWAN, Meshtastic, and MeshCore.
Key Features:
Supports Wi-Fi/Bluetooth, LoRa, and GNSS communication.
Integrated power amplifier with a maximum output power of 28±1 dBm; the low-noise amplifier (LNA) can be bypassed.
Supports multi-system joint positioning, including GPS, GLONASS, BeiDou, Galileo, NAVIC, and QZSS.
Integrated lithium battery management system (charge/discharge management, overcharge protection, battery level detection, automatic switching between USB and battery power).
USB-C interface with comprehensive voltage regulation, ESD protection, short-circuit protection, and RF shielding.
Supports example development frameworks and provides LoRa/LoRaWAN sample programs.
Compatible with Meshtastic and MeshCore.
Product Specifications:
MCU (Microcontroller): ESP32-S3FN8 (Xtensa® 32-bit lx7 dual-core processor)
LoRa Chip: SX1262
GNSS Chip: UC6580
Frequency: 863–928 MHz
Maximum Transmit Power: 28±1 dBm
Maximum Receive Sensitivity: -134 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth Low Energy: Bluetooth 5.0, Bluetooth Mesh
Hardware Resources:
7 ADC1 + 2 ADC2 channels;
7 touch channels;
3 UARTs;
2 I2C; 2 SPI; etc.
Interfaces:
Type-C USB;
2 x 1.25V lithium battery connectors;
2 x 1.25V solar panel connectors;
LoRa antenna (IPEX 1.0);
GNSS antenna (IPEX 1.0);
2 rows of 18-pin headers with 2.54mm pitch

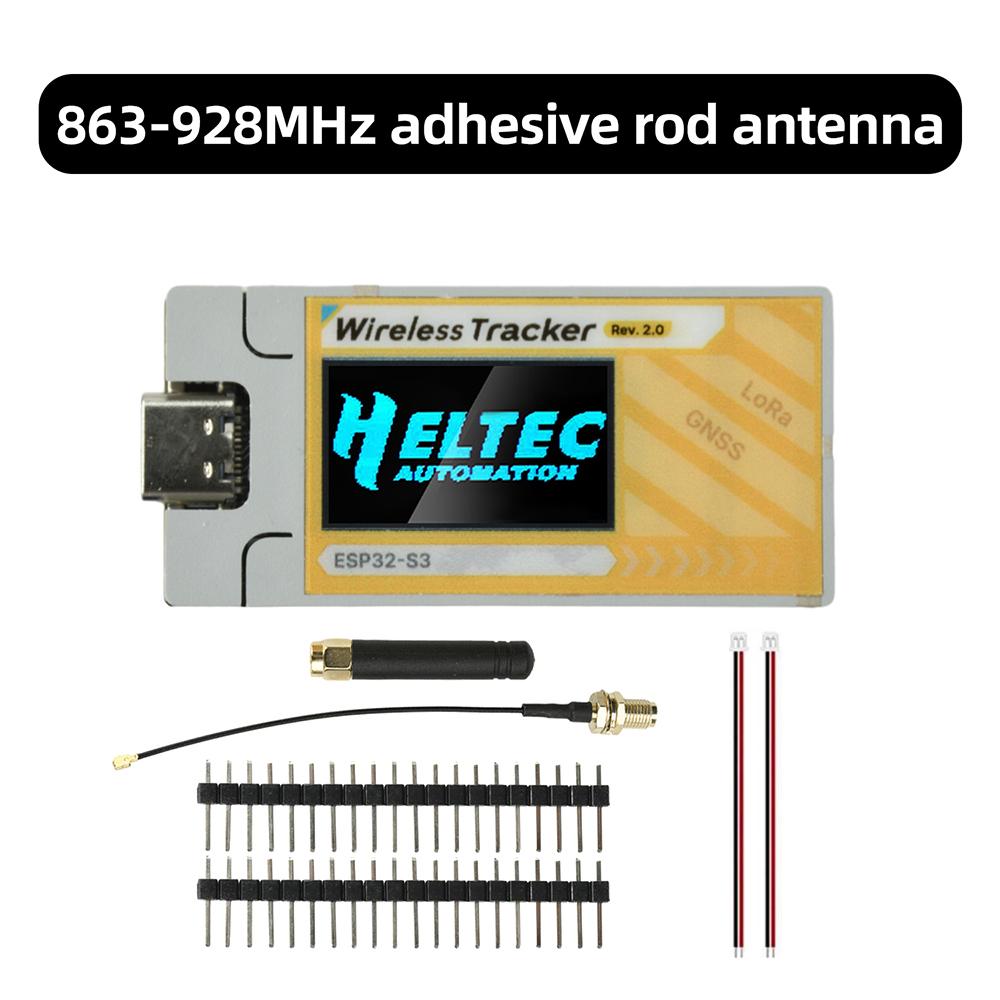

Product List:
1x Development Board
2x 18-pin header pins
2x 2-pin terminal cables
1x Antenna
label:yes
Waterproof: yes
Waterproof rating: IP65
