Description: This module is the use of key switches, flick switches, micro switches, and other normally open self-resetting switches for triggering the delay module, you can also use normally open sensors for triggering, such as vibration sensors, reed switches, etc., you can form a vibration alarm sensing device. Mainly used in machinery and equipment, automation equipment modification, PLC industrial control, vibration alarm settings, robotics, intelligent products.

Relay Module Normally Open Trigger Delay Switch Relay Module 12V

Description:

This module is the use of key switches, flick switches, micro switches, and other normally open self-resetting switches for triggering the delay module, you can also use normally open sensors for triggering, such as vibration sensors, reed switches, etc., you can form a vibration alarm sensing device. Mainly used in machinery and equipment, automation equipment modification, PLC industrial control, vibration alarm settings, robotics, intelligent products.

Product description:

1. Adopting advanced high-quality timing chip control, accurate timing

2. Adopt high power relay to control the load, up to 10A.

3. With anti-power reversal protection diode, better protection of the module

4. Trigger end is isolated by optocoupler, strong interference ability, to avoid false triggering

5. 8 kinds of optional time range, short 0.1 seconds, up to 1 hour

6. delay with potentiometer adjustment, clockwise adjustment time will be longer

7. With power indication and delay switch indication.

8. Relay output with normally open and normally closed interface

Function introduction:

Normally open trigger function: before the module is not triggered, the trigger side of the circuit is open, such as momentary switch closure or continuous closure can trigger the module delay, the relay is closed.

1. Module on the 5V DC power supply, waiting for the trigger end of the switch closure trigger signal

2. When the module is triggered by a switch closure trigger, the module starts the time delay function, and the relay is activated at the same time, and at the end of the time delay, the relay is disconnected.

3. When the module is triggered in the delay, if there is a trigger signal received again, the module will be re-timed, automatically triggered once, until the end of the delay.

The trigger side can support the following sensors to trigger the delay:

1. Tactile switch

2.Micro switch

3. Self-reset switches

4. Normally open vibration sensor

5. Normally open reed switch

6. Normally open door magnetic sensor

7.Tilt Sensor Switch

8. Water level switch

Electrical parameters:

Supply voltage: 5V, 12VDC

Static current: 4.8mA Power consumption: 70mA

Trigger end time: 1ms or more is enough

Relay load capacity: 250V 10A AC 30V 10A DC (the actual application of power halved use, in favour of prolonging product life)

Relay life: 100,000 times (power)

Delay time range selection method:

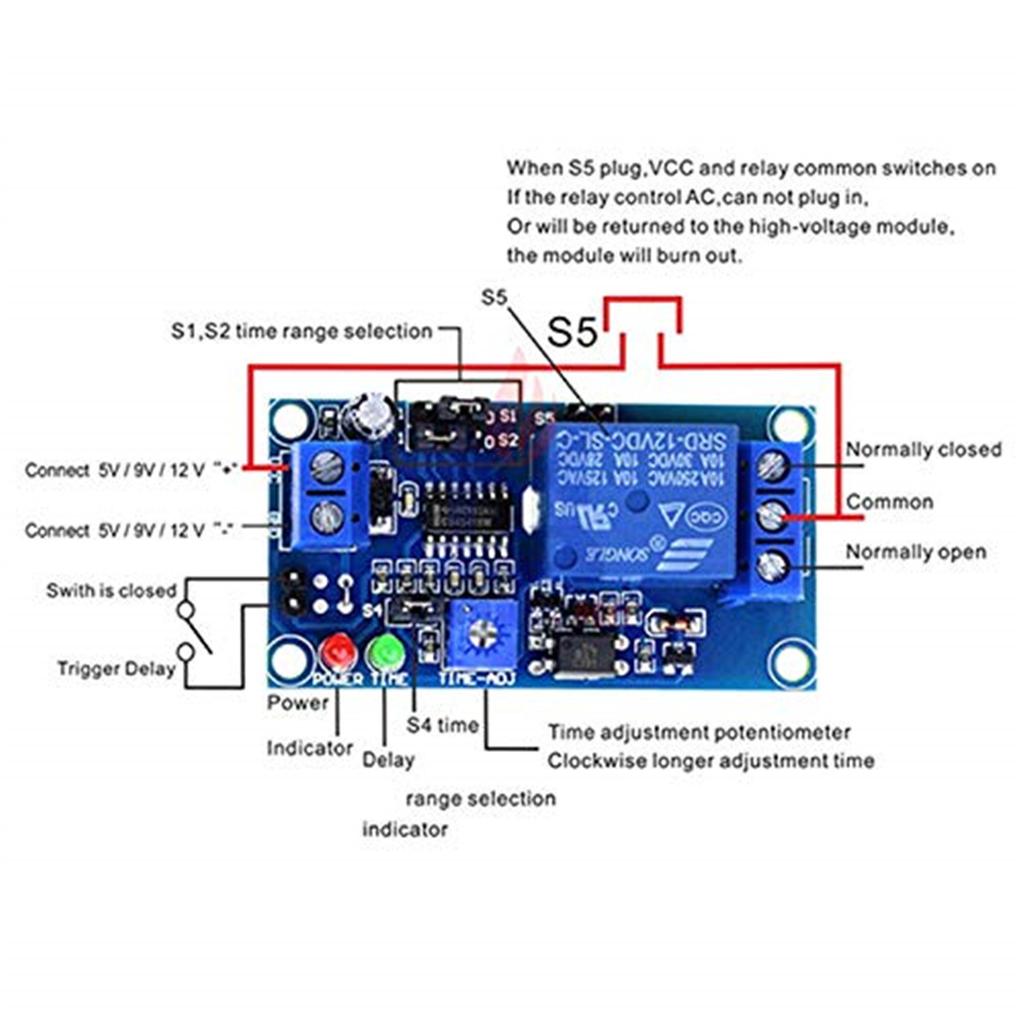

S1.S2.S4 switch to different positions to choose a different time range, the potentiometer is to adjust the corresponding range of time

Packing list:

1 x Relay
