The joystick module has been replaced,restoring smooth operation.
Say goodbye to outdated joysticks andrediscover your shining moments.
Solve your joystick problem
1.Drift Dead Zone
2.Response delay
3.Dry to the touch
4.Spring fatigue
You have two module options:
TMR and carbon film. You can choose from two different technology versions. Please purchase the corresponding product according to your needs.
REPLACE IN SECONDS
Changing a stick module has neverbeen easier. Simply pop out the oldunit and snap in the new one.
EASY INSTALLATION
Modular design allows for quickreplacement of worn-out or malfunctioningstick modules.
Replaceable Joystick Module
All joystick modules on the controller arereplaceable, thus extending the lifespanof the wireless controller.

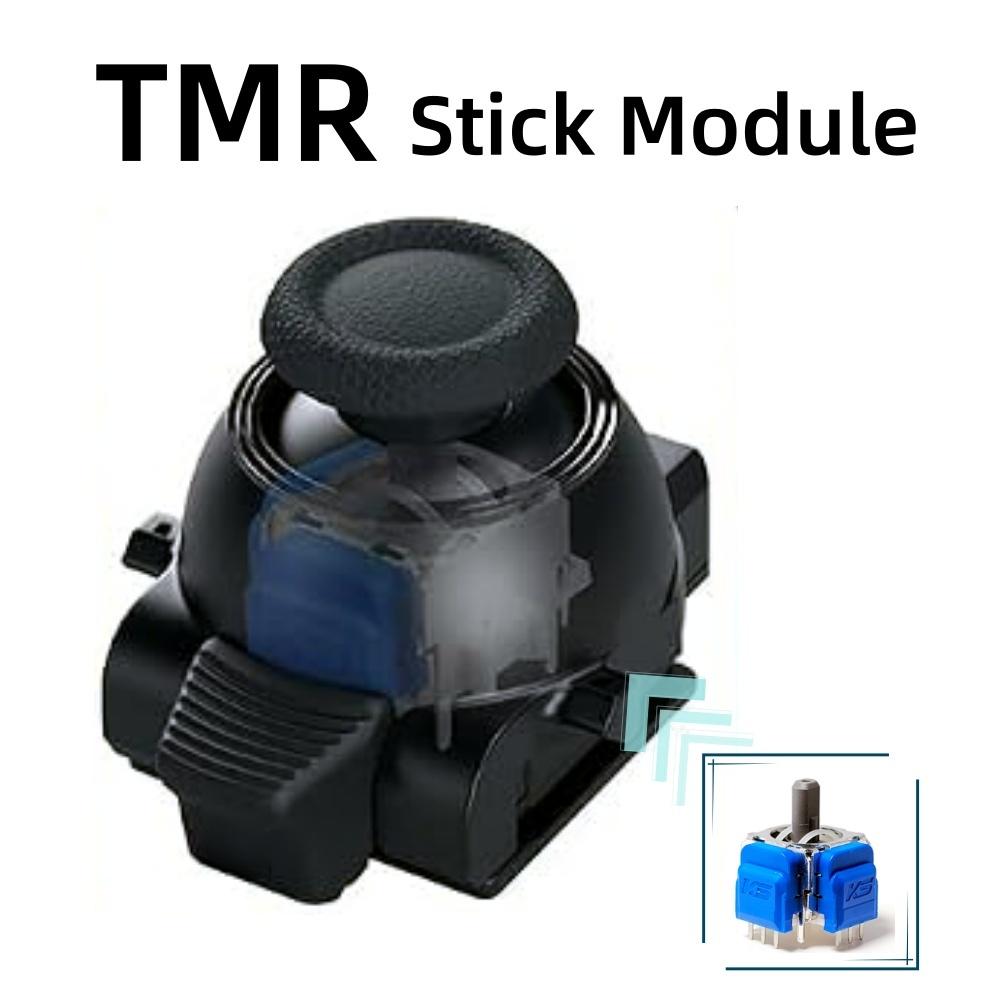

TMR STICK MODULE
Why TMR beats traditional potentiometers?
Traditional sticks rely on physical carbon contacts that rub and wear over time – leading to progressive drift, jitter, and eventual failure. TMR sensors are non‑contact magnetic detectors. There’s no friction, no debris, no degradation. Your aim stays crisp, your inputs stay true, and the module easily outlasts 5–10 conventional sticks.
Experience the end of stick drift – forever.
TMR joystick module redefines controller reliability. Using advanced Tunneling Magnetoresistance (TMR) technology, it eliminates the mechanical wear and carbon‑contact degradation that cause analog drift on standard sticks. The result? A virtually drift‑proof control that stays precise, match after match.
Built for Pros
Designed for players who want drift-free consistency and esports-grade accuracy along with a lifetime of drift free gameplay.
Specifications at a glance:
Sensor type: TMR (Tunneling Magnetoresistance)
Compatible with: PS5 Edge controller
Installation: Plug‑and‑play, solder‑free
Calibration: Required (via in‑game deadzone or system tool)
Lifespan: 5–10× longer than carbon‑based potentiometers
What’s in the box:1 × TMR Joystick Module (works for left or right side)
TMR Magnetic resistance joystick
200UA TMR low-power chip
The TMR joystick is based on the principle of high-precision contactless magnetic induction. Its working structure is that the magnet senses non-contact between two TMR sensors. The algorithm adopts 12-bit high-precision digital processing.
High-Precision Non-Contact Magnetic sensing Principle
The TMR joystick operates on a high-precision non-contact magneticsensing principle, where a magnetinduces a contactless magnetic fieldbetween two TMR sensors. Thealgorithm employs 12-bit high-precision digital processing.
Drastically Reduced Power Draw
Unshakable Stability,Smart Calibration,Zero Wear
Our TMR joystick excels in temperature stability, supports flexible software calibration for the center point with a minimal dead zone, and thanks to its contactless magnetic sensing, completely eliminates physical wear and output drift.
Up to 5 Million Cycles Rotational Life
Zero Jitter, Rock-Solid Stability ,,High Polling Rate & Resolution.
✅ Ultra-Low Power: Operating current as low as 200μA per unit (x2).
✅ Superior Accuracy: Stable return accuracy of <3% in real-world tests.
✅ Extreme Longevity: Mechanical lifespan exceeding 5 million cycles.

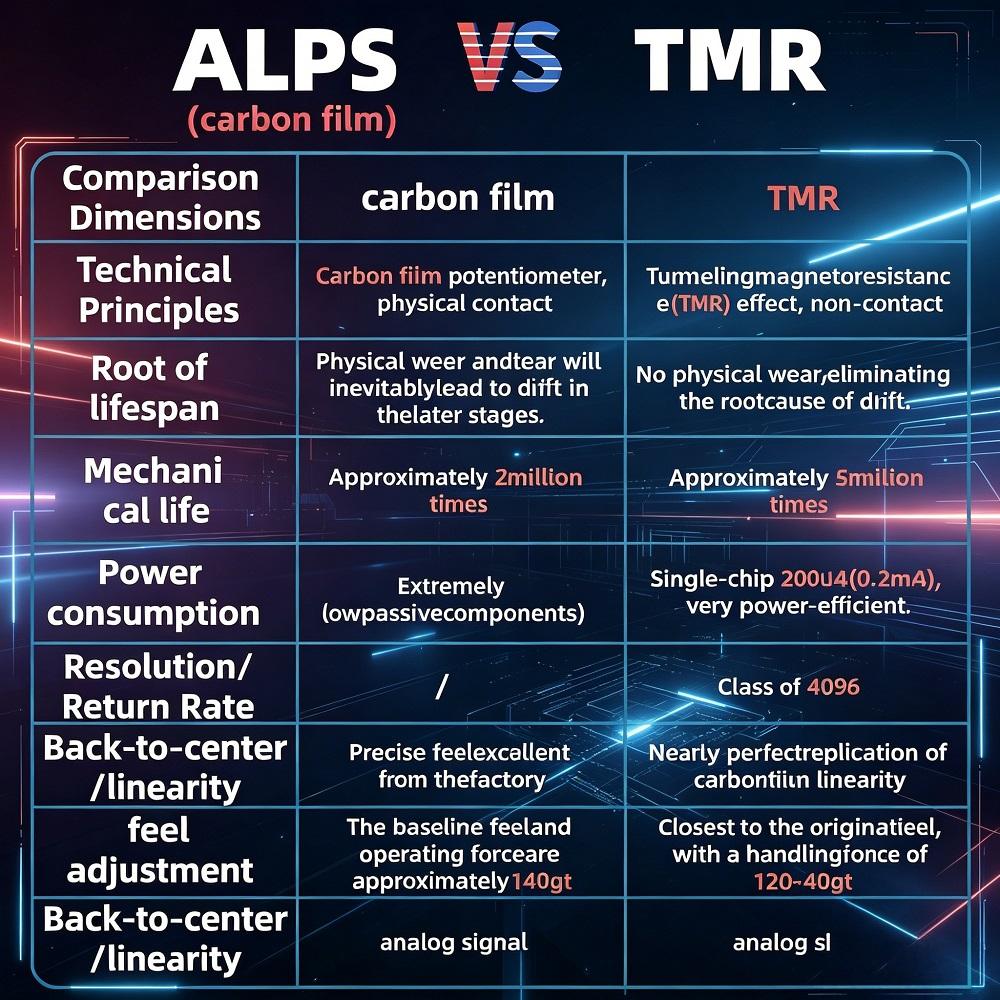

ALPS(Carbon film ) STICK MODULE
Specifications at a glance:
Sensor type: ALPSCarbon film (Carbon film potentiometer, physical contact)
Compatible with: PS5 Edge controller
Installation: Plug‑and‑play, solder‑free
Calibration: Required (via in‑game deadzone or system tool)
What’s in the box:1 × TMR Joystick Module (works for left or right side)
Move and control precisely by swapping in fresh stick module replacement so you can always play with equipment that’s in good condition
Perfect Snap-In Fit for DualSense Edge Engineered to match the original feel and fit
Ultimate control precision
The carbon film joystick uses linear resistanceoutput, ensuring that the pushing amplitude andsignal feedback are completely synchronized,resulting in zero response delay.
Realistic mechanical feel
The physical contact provides a unique dampingfeel and clear rebound feedback, resulting in asolid and firm grip, perfect for players who seek atruly 'man-stick-one'control experience.
Easy installation – but calibration is required
Designed as a direct drop‑in replacement for Sony DualSense Edge controller.
No soldering, no special tools – simply swap the module in minutes
Pre‑tested at factory, but each controller has slight variances
After installation, you must calibrate the stick for optimal performance. This can be done either:
Via the in‑game deadzone setting (typically 2–3% works best for TMR sensors), or
Using the console/controller built‑in calibration tool
Proper calibration ensures perfect centering and removes any residual signal noise
About Joystick Calibration:
After replacing the joysticks, run joystick calibration as the ways below (Before calibration and testing, please install the controller cases and screws.):
For PS4 DualShock 4 and PS5 DualSense controllers, after replacing the joysticks, you can use the third-party open-source calibration tool at https://dualshock-tools.github.io to calibrate the joysticks.
Upgrade today – and never buy another replacement stick again.
Note: Calibration is key – follow the steps above and enjoy drift‑free gaming for years.

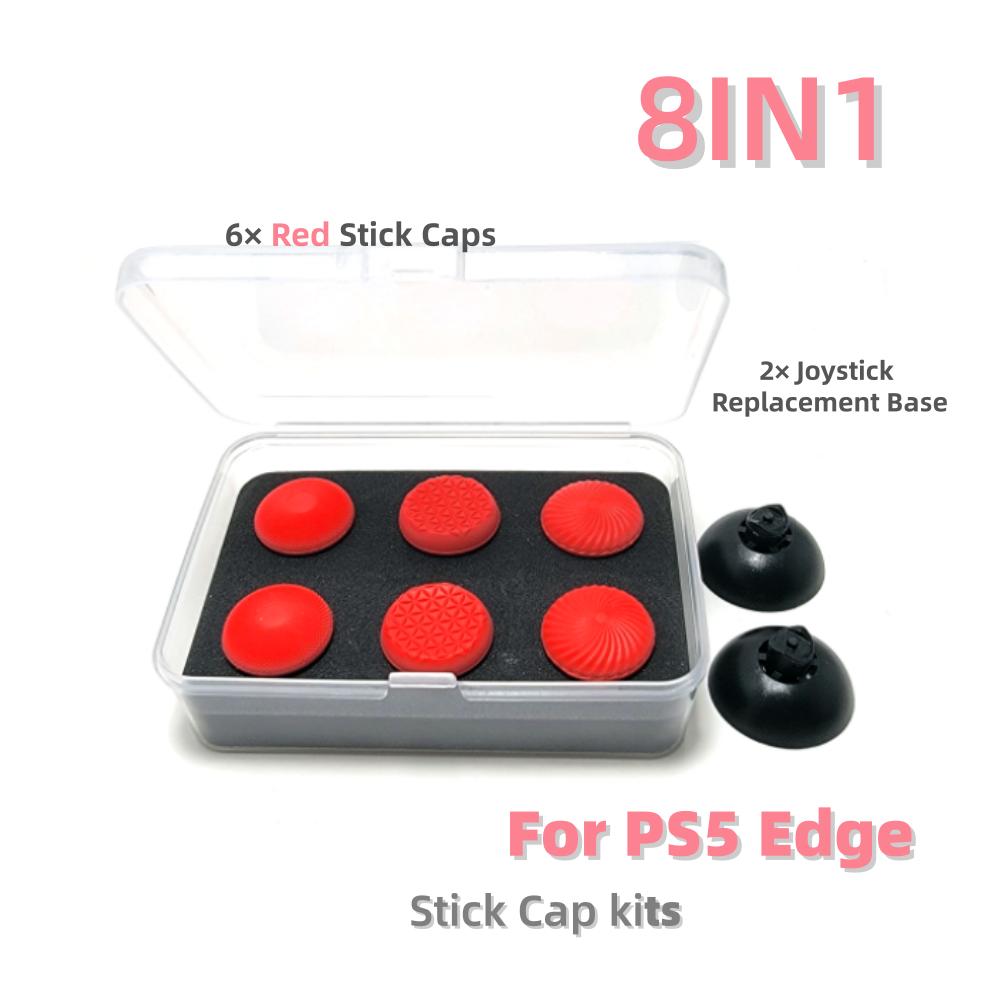

Joystick Cap Sets
Comprehanaive upgrade
Easy to assemble and disassemble, change styles in seconds
Diverse textures, excellentanti-slip properties
Height adjustable,control at will
Original Sense of Control
By adding different heigt, offer a greater angle of rotation,improve your control precision!
Detachable joystick cap
For PS5 Elite Controller
Easy and quick to replace;height-adjustable joystick
cap.
⚠️Kind tips
1️⃣ Before confirming the purchase, please check whether this model is the model you want to order and whether your delivery address is correct.
2️⃣ Professional installation is recommended. Use anti-static equipment to avoid damaging the motherboard or other components.
3️⃣ Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
