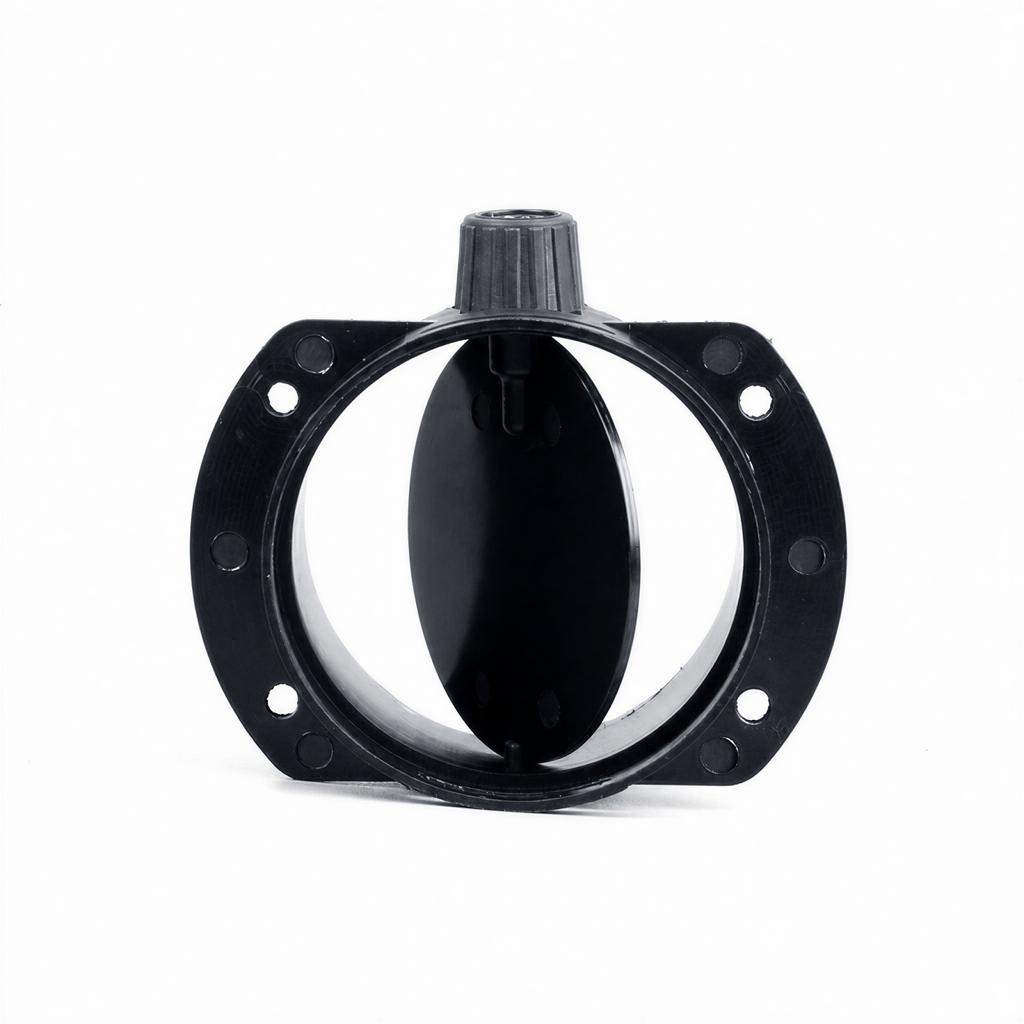

Diesel Heater Inline Duct Connector with Valve

Adjustable Airflow Valve: Side control knob lets you increase, reduce, or shut off airflow through the connected ventilation branch according to your heating setup Dual-End Connection: Slotted end is designed for a compatible heater outlet, while the smooth cylindrical end connects to a matching warm-air ventilation hose Three Size Options: Available in nominal 60mm (2.36in), 75mm (2.95in), and 90mm (3.54in) sizes to accommodate different duct configurations Straight-Through Layout: In-line design keeps the heater outlet and ventilation hose aligned in a direct path for a compact and organized duct arrangement Integrated Mounting Flange: Built-in flange features installation holes for securing the connector to a compatible surface or heater assembly Package Included: 1 × valve duct connector in the selected size; heater, duct hose, clamps, screws, and other installation parts are not included

(Specifications) Product Type: Inline Heater Duct Connector Color: Black Material: Plastic Design: Straight Through Airflow Control: Adjustable Valve Connection Ends: One Slotted End and One Plain Hose End Available Sizes: 60mm, 75mm, and 90mm Package Included: 1 × Inline Duct Connector with Airflow Valve in the selected size

(60mm Model) Nominal Connection Size: 60mm / 2.36in Plain Hose-End Diameter: Approximately 60mm / 2.36in Slotted-End Inner Diameter: Approximately 61mm / 2.40in Slotted-End Outer Diameter: Approximately 64mm / 2.52in Mounting Flange Size: Approximately 94 × 82mm / 3.70 × 3.23in Plain Section Length: Approximately 50mm / 1.97in

(75mm Model) Nominal Connection Size: 75mm / 2.95in Plain Hose-End Diameter: Approximately 75mm / 2.95in Slotted-End Inner Diameter: Approximately 76mm / 2.99in Slotted-End Outer Diameter: Approximately 80mm / 3.15in Mounting Flange Size: Approximately 105 × 90mm / 4.13 × 3.54in Plain Section Length: Approximately 50mm / 1.97in

(90mm Model) Nominal Connection Size: 90mm / 3.54in Plain Hose-End Diameter: Approximately 90mm / 3.54in Slotted-End Inner Diameter: Approximately 91mm / 3.58in Slotted-End Outer Diameter: Approximately 95mm / 3.74in Mounting Flange Size: Approximately 119 × 108mm / 4.69 × 4.25in Plain Section Length: Approximately 50mm / 1.97in

(Note) The two connection ends are not identical. Check the heater outlet structure, duct diameter, slots, and complete product dimensions before ordering. Do not close every outlet in the system while the heater is operating, as restricted airflow may cause overheating. Follow the heater manufacturer’s installation instructions.
