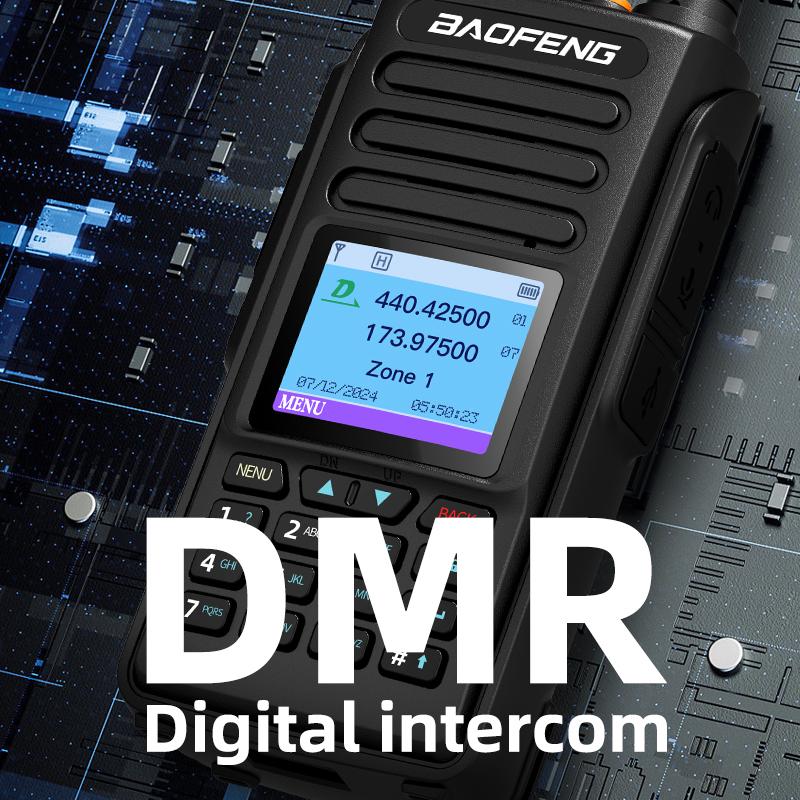

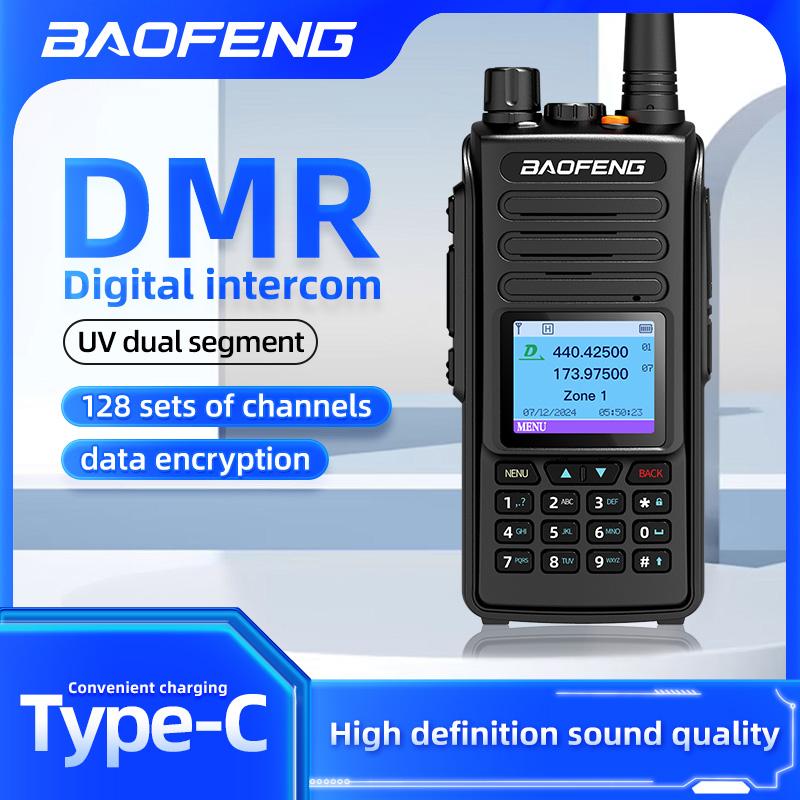

Baofeng DMR DM-1702 GPS Dual Mode Analog And Digital Walkie Talkie Tier 1+2 Dual Time Slot VHF 136-174 UHF 400-470MHz

BAOFENG UV-32 GPS Multi-Band Handheld Two-Way Radio

Stay connected and share your position with the BAOFENG UV-32 GPS handheld radio. Designed for amateur radio operators, outdoor teams, emergency preparedness and field communication, it combines GPS/BeiDou positioning, Bluetooth APP programming, 1000-channel storage and a clear 2.0-inch color display.

KEY FEATURES

GPS & BEIDOU POSITIONING

Supports GPS, BeiDou and GPS + BeiDou positioning modes. Users can view their current coordinates and share or request location information between compatible radios.

Location sharing requires compatible radios to be programmed correctly and operating on the same communication channel.

BLUETOOTH APP PROGRAMMING

Connect the radio to a compatible smartphone application through Bluetooth to program frequencies, channels and radio settings without using a traditional programming cable.

1000 CHANNELS & 10 ZONES

Store up to 1000 communication channels and organize them into 10 zones. Ideal for users who need to manage multiple teams, locations or frequency groups.

2.0-INCH TFT COLOR DISPLAY

The large color screen clearly displays:

• Channel and frequency information

• Signal strength

• Battery status

• GPS information

• CTCSS/DCS settings

• Active operating mode

• Menu and system settings

ONE-KEY FREQUENCY COPY

Detect the frequency and CTCSS/DCS information of a nearby compatible analog radio. The detected information can be saved directly to a memory channel for quick configuration.

DUAL WATCH & DUAL STANDBY

Monitor two displayed channels or frequencies and quickly switch between communication groups.

SELECTABLE OUTPUT POWER

High, Medium and Low power settings allow users to balance communication performance and battery operating time.

Actual output power depends on the selected regional hardware version, programmed frequency and local regulations.

WIDE-BAND RECEPTION

FM Broadcast Radio:

65-108MHz

AM Aviation Band:

108-136MHz, receive only

VHF1:

144-148MHz, transmit and receive according to the supplied manual version

VHF2:

220-260MHz, receive only

UHF2:

350-390MHz, receive only

UHF1:

430-440MHz, transmit and receive according to the supplied manual version

Frequency coverage and transmitting permissions may vary depending on the regional version.

MULTIPLE SCANNING FUNCTIONS

• Memory channel scanning

• VFO frequency-range scanning

• CTCSS/DCS scanning

• Automatic signaling search

• Scan and store function

2200mAh RECHARGEABLE BATTERY

Equipped with a 7.4V 2200mAh rechargeable lithium-ion battery for portable communication.

The battery supports:

• USB Type-C charging

• Desktop charging dock

• Battery level display

• Low-battery warning

MORE PRACTICAL FUNCTIONS

• VOX hands-free transmission

• DTMF encoding and decoding

• Selective calling

• Frequency hopping

• Repeater offset setting

• Repeater tone setting

• Busy channel lockout

• Emergency alarm

• FM radio

• Keypad lock

• Adjustable screen backlight

• Chinese and English voice prompts

• NOAA reception on supported USA/Canada versions

• PC programming

• Channel name editing

• Time-out timer

• Squelch level adjustment

TECHNICAL SPECIFICATIONS

Brand: BAOFENG

Model: UV-32 GPS Version

Radio Type: Analog handheld two-way radio

Channel Capacity: 1000 channels

Zone Capacity: 10 zones

Power Levels: High / Medium / Low

Positioning: GPS / BeiDou / GPS + BeiDou

Display: 2.0-inch TFT color screen

Programming: Bluetooth APP and PC programming

Battery Type: Rechargeable lithium-ion battery

Battery Voltage: 7.4V

Battery Capacity: 2200mAh

Charging Methods: USB Type-C and desktop charging dock

Audio Output: 1W

Accessory Connector: Kenwood-style 2-pin

Dimensions: Approximately 182 × 67 × 41mm, excluding antenna

Weight: Approximately 350g, including battery, antenna and belt clip

PACKAGE CONTENTS

• 1 × BAOFENG UV-32 GPS Handheld Radio

• 1 × 2200mAh Rechargeable Battery

• 1 × High-Sensitivity Antenna

• 1 × Desktop Charging Dock

• 1 × Power Adapter

• 1 × Belt Clip / Protective Case

• 1 × User Manual

Package contents and power adapter plug may vary according to the selected SKU and destination country.

SUITABLE FOR

• Amateur radio communication

• Hiking and camping

• Outdoor exploration

• Emergency preparedness

• Security and event teams

• Warehouse and property coordination

• Vehicle and field communication

IMPORTANT NOTICE

This product is a programmable amateur radio transceiver. A valid radio licence may be required for transmission in your country.

The wide receiving range does not mean that transmission is permitted on every displayed frequency. Aviation frequencies and the receive-only bands listed above cannot be used for transmission.

Frequency ranges, output power and available functions may vary according to the regional hardware version. Please select the correct version and follow all applicable local radio regulations.

Storage Channel: 1024 Frequency Range: 136 - 174 MHz Is_Display: Yes Battery Capacity(mAh): 2200 Waterproof / Water-Resistant: No Battery Included: Yes Maximum Range: 5km-10km Output Power(w): 5w-10w Brand Name: SHJ Origin: Mainland China Use: others Rechargeablebatteryincluded: Yes Model Number: DM-1702 High-concerned chemical: none
