18-48VDC Stepper Motor Driver 1.0-4.2A CNC Driver 2-Phase Controller For Nema 17 Motor

Label:Yes [Wide Compatibility] Compatible with stepper motors such as for NEMA 17, for NEMA 23, and for NEMA 34, including 2 phase hybrid stepper motors with outer diameters of 42 mm (1.65 in), 57 mm (2.24 in), and 86 mm (3.39 in).

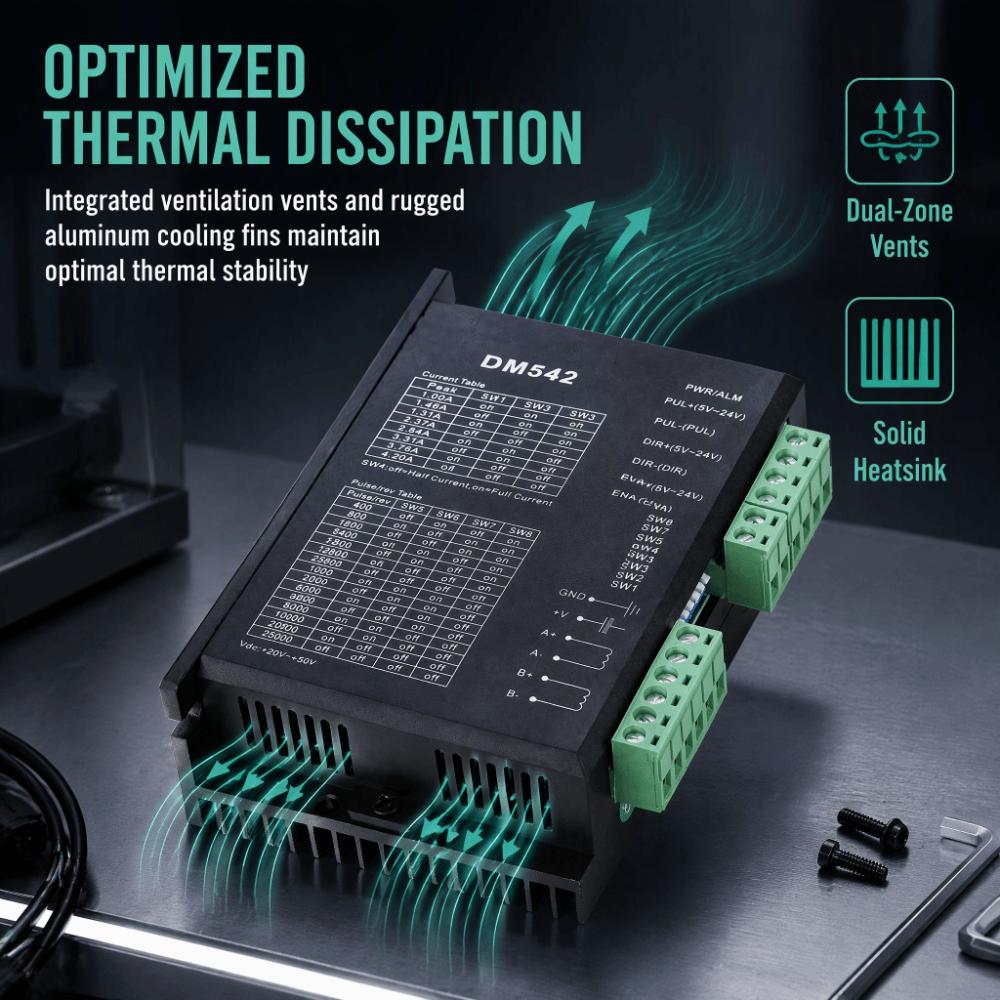

[Heat Dissipation Optimization Design] There are heat dissipation holes at the lower and upper sections, enabling the drive to maintain a normal heat range during use. [High Subdivision Driver] This high subdivision driver is suitable for high subdivision motors, providing control support for 42, 57, and 86 type motors.

[Applicable Industries] This stepper motor driver is suitable for 3D printers, CNC machine tools, cutting machines, engraving machines, automation equipment, electronic equipment, and more. [Motor Type Support] Suitable for stepper motors in 42, 57, and 86 types with 2 phase and 4 phase options, including 4 wire, 6 wire, and 8 wire configurations.

Specification: Model: DM542 Input voltage: 18-48VDC, 24V(Typical) Output current: 1.0-4.2A Pulse response frequency: 200kHz(Maximum) Insulation resistance:≥500Mohms Subdivision range: 400~25600ppr Material: metal Color: Black Size: Approx. 118 x 76mm(4.65 x 2.99in)

Package list: 1 x Steeper Motor Driver
