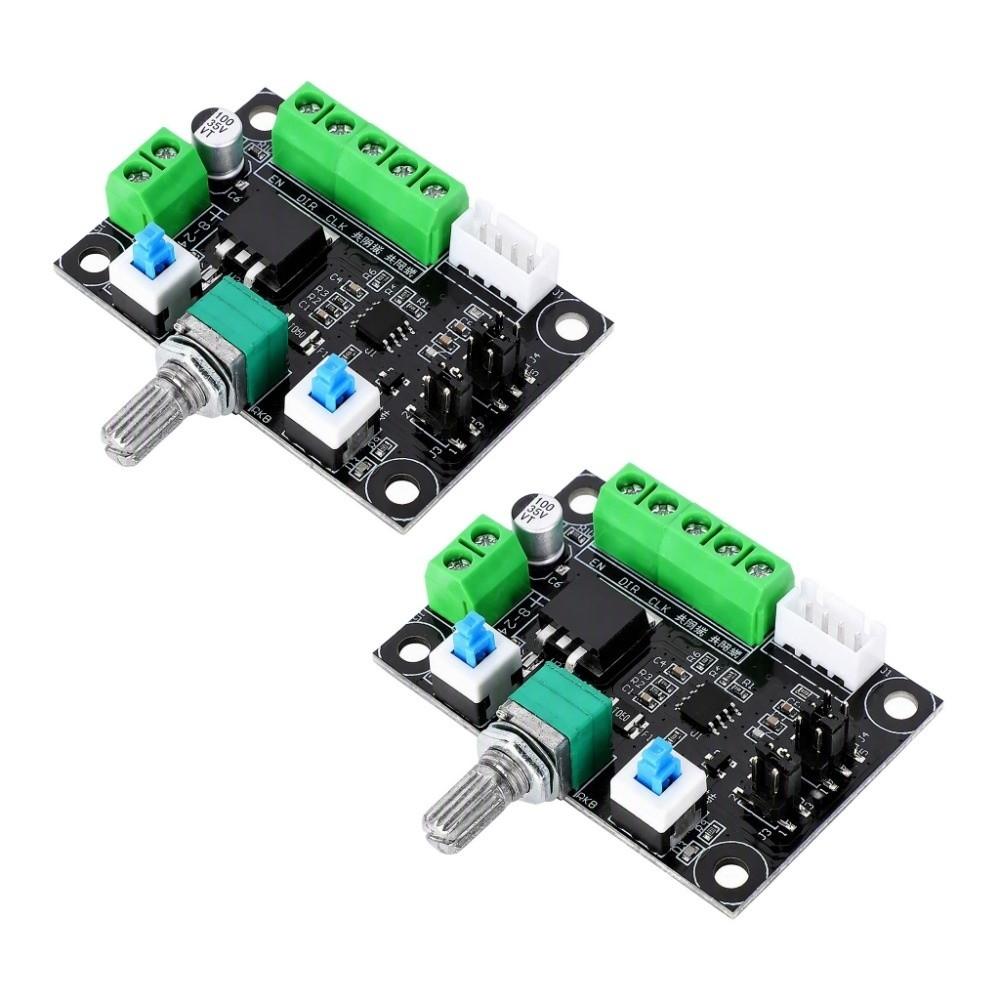

2pcs PWM Control Stepper Motor Driver DC 8V-24V Pulse Signal Generator For Robotics Projects

Label:Yes [Frequency Measurement] Frequency measurement is supported on both PUL and COYIN (or COYANG) ports, making it useful for signal monitoring. [Simple Control Platform] A simple controller, stepper driver, stepper motor, and DC supply can be combined to form a simple control platform for stepping motor projects.

[Multiple Frequency Signal Options] The controller offers three frequency signal options: high frequency 5.4 kHz to 160 kHz, mid frequency 16.6 kHz, and low frequency 80 Hz to 2.4 kHz. These can be selected by jumper. [Pulse and PWM Output] It can output both pulse signals and PWM signals, with jumper selection for different needs. [Pulse Output Module] This module outputs pulse signals to supply a stepper driver, which then controls the stepper motor. It must be matched with a compatible driver for proper use.

Specifications: Condition:Factory New Color: Multicolor Item Type: Stepper Motor Drive Controller Material: Metal Size: Approx. 58 x 38.6mm(2.28 x 1.52in)

Out of sync motor driver port tag is different but the same function EN = ENA = for FREE can make PUL = PULS = CLK pulse DIR = the CW = CWW direction

Yang connection (B) EN + PUL + DIR + together received a total of anode side. Meet EN EN - PUL - answer the CLK DIR - meet DIR

A total of Yin connection (B) EN - PUL - DIR - together received a total of cathode . EN + meet EN PUL + answer the CLK DIR + meet DIR

Package List: 2 x Stepper Motor Drive Controller
