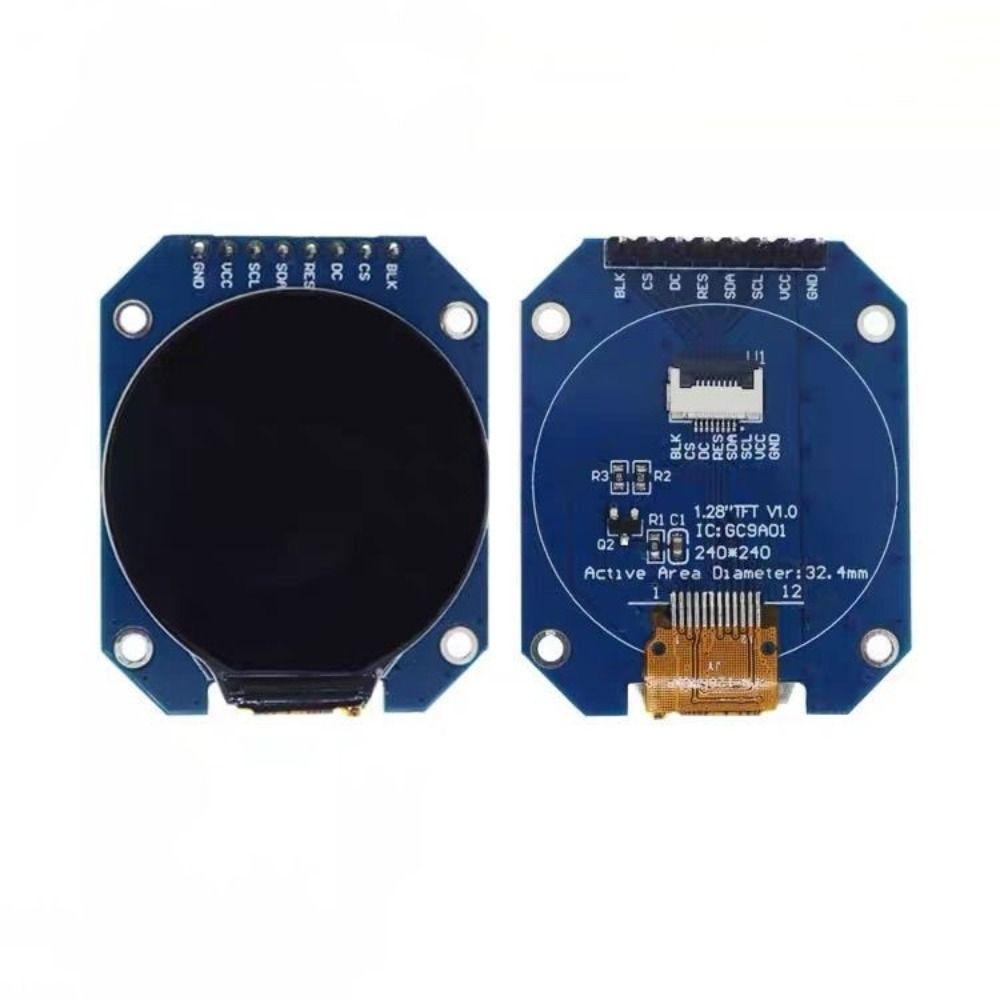

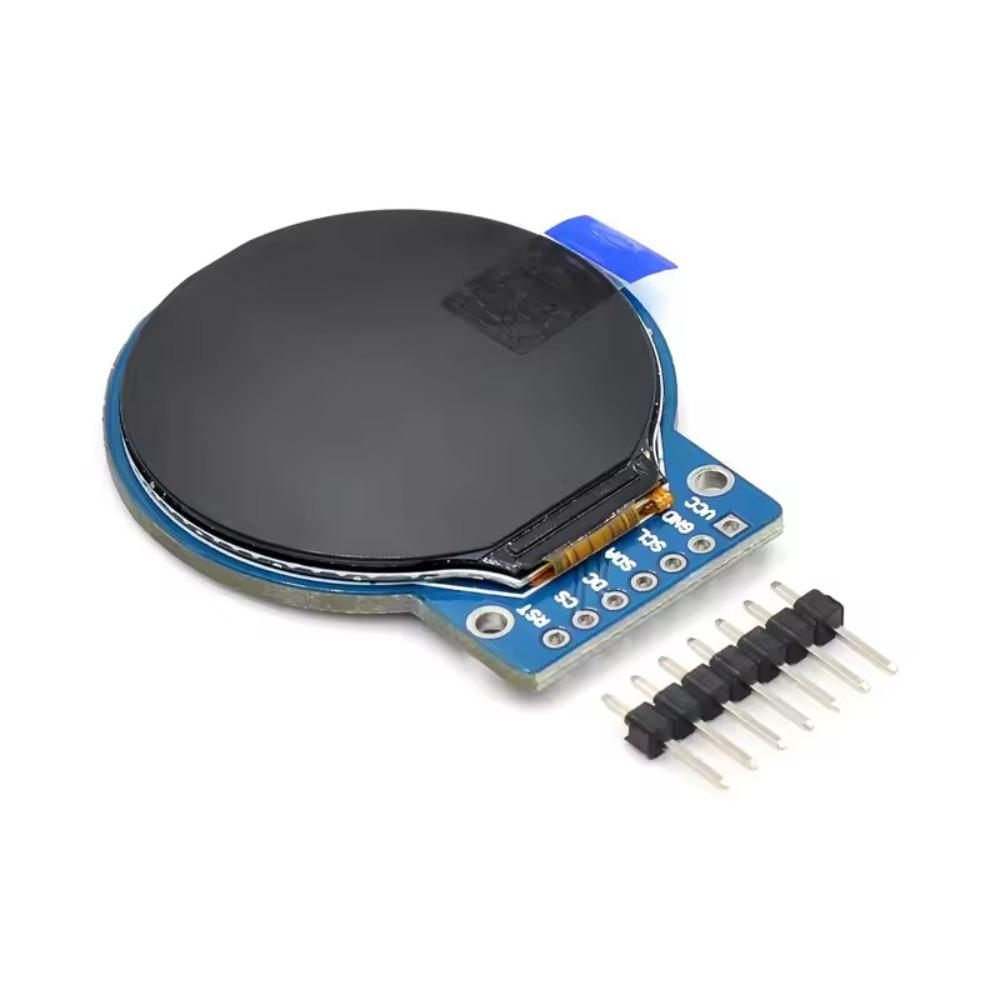

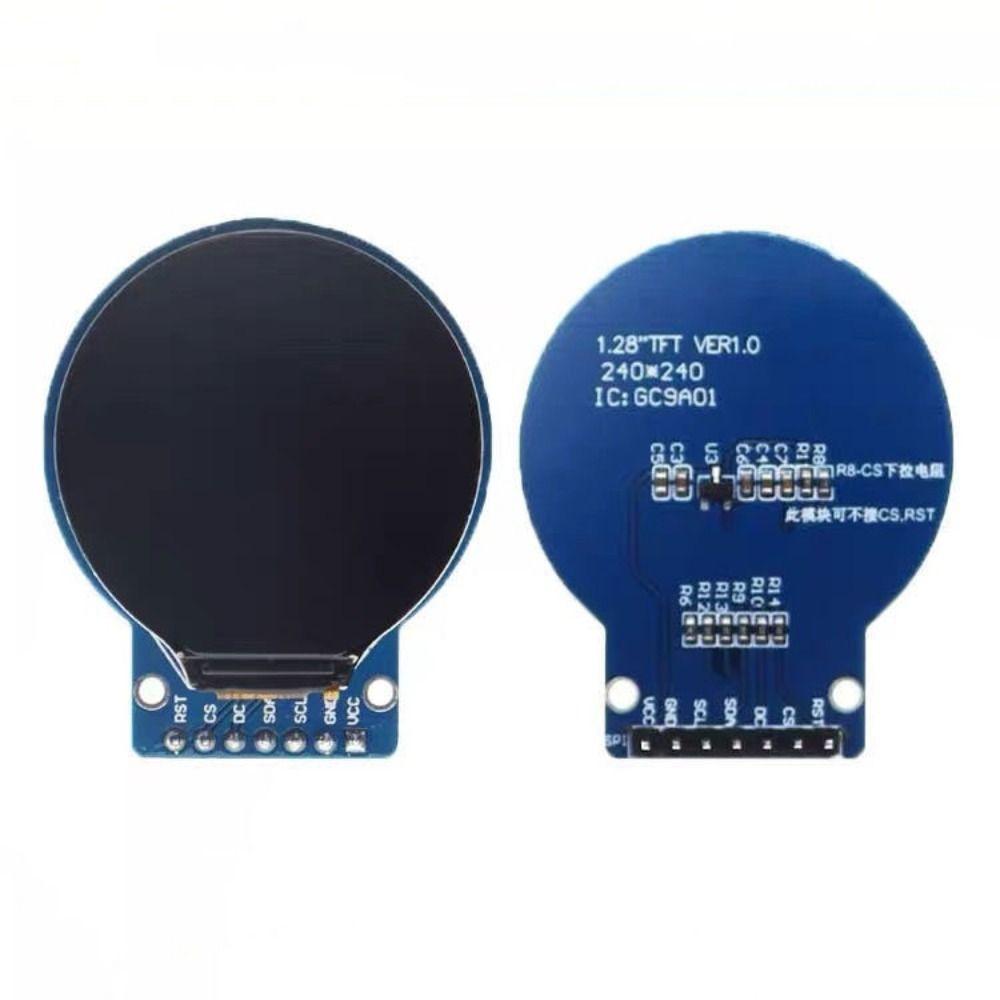

1.5 inch 1.28inch TFT IPS Screen 11Pin SPI Interface Color Display Module DIY Electronics

Label:Yes Item:TFT IPS Screen Resolution: 240×240 / 360×360 Size: 1.28 / 1.5 inch Condition: brand new and good quality Outline Dimensions: 38×45.5×3.2mm(1.50×1.79×0.13in) / 41.5×49.32×3.36mm(1.63×1.94×0.13in) Driving Voltage: 3~5V Display Area: 32.4×32.4mm(1.28×1.28in) / 38.156×38.156mm(1.50×1.50in) Display Color: Full-color RGB Interface: SPI / 11-pin QSPI Driver IC: GC9A01 / ST77916

Features: This 1.5 inch TFT LCD color round screen module features a 360x360 pixel resolution, delivering crisp, detailed images and clear text display for a wide range of embedded and DIY electronics projects.

Equipped with an IPS (In-Plane Switching) panel, this circular LCD ensures vivid colors and excellent contrast from multiple viewing angles, making it ideal for wearable devices, smart meters, and compact user interfaces where visibility is crucial.

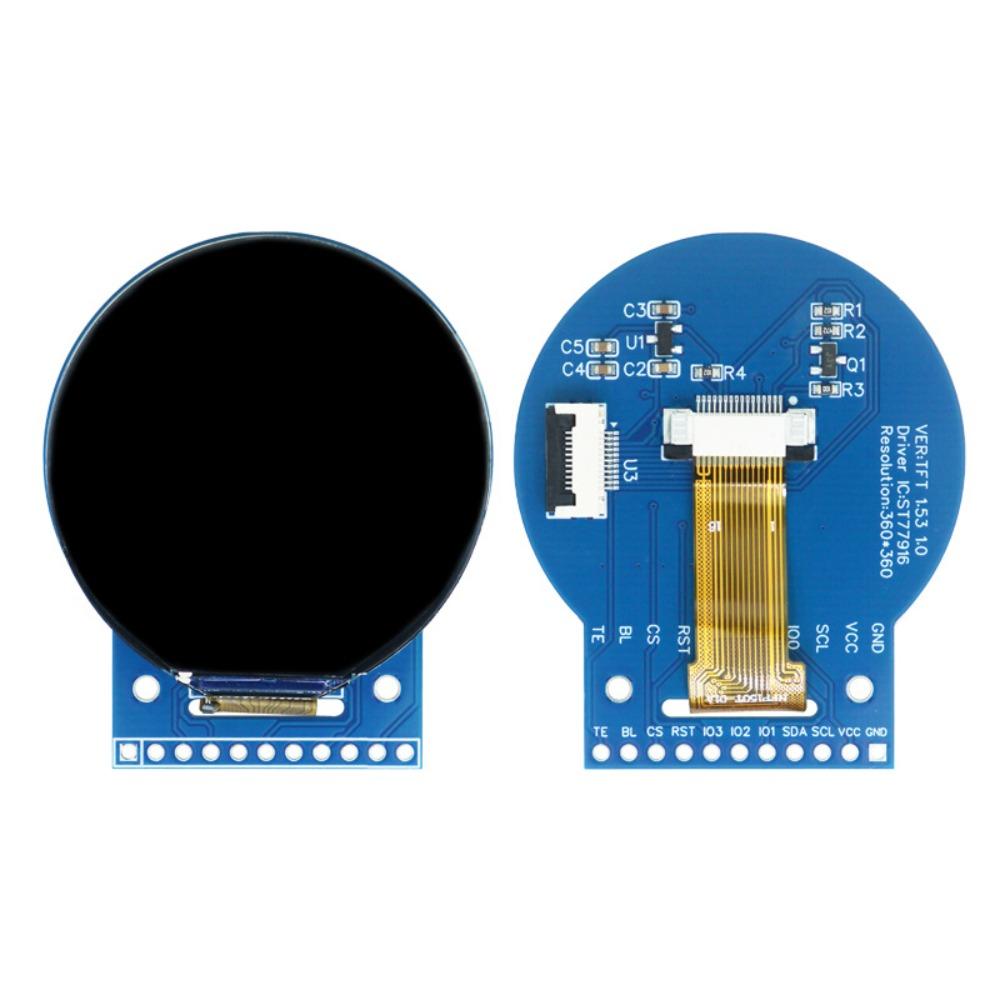

Built-in ST77916 display driver IC with QSPI (Quad SPI) interface supports fast data transfer and smooth screen refresh. The QSPI design reduces the number of I/O pins required and simplifies integration with microcontrollers and development boards.

The module adopts an 11-pin interface layout, offering a compact connection solution that is easy to route on PCBs and suitable for space-limited applications such as smart watches, control panels, and handheld instruments.

Supporting a working voltage range of 3V to 5V, this display module is compatible with popular development platforms and microcontrollers, including 3.3V and 5V logic systems, reducing the need for extra level shifting circuitry. Color: As Shown Material: PCB Package Contents:

Package Included: 1 x TFT IPS Screen
