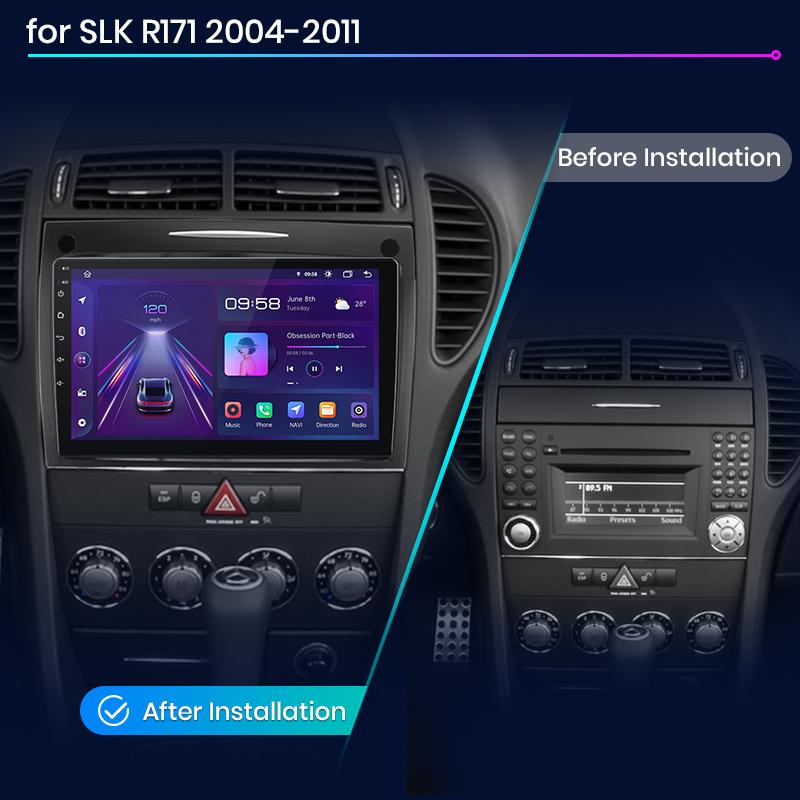

Junsun CarPlay Android Auto Car Radio For Mercedes Benz SLK Class R171 2004-2011 SLK 200 280 300 350 GPS Intelligent Systems

1. the original radio has the optical fiber interface in figure1. it needs an extension cable.

2. arabalar harman/kardon sistemine sahipse, fiber optik kutuya ihtiyaç duyar.

>> why choose junsun ? Fast delivery: the local european store of the platform, after verifying payment, will ship out within 24 hours from the eu local warehouse, which can be sent to the entire european region.

2. product quality assurance: all products have passed strict quality testing before shipment to ensure high quality.

3. after-sales service: if the product has a problem within 2 years after receipt confirmation, we will directly replace the machine with a new one for you, but please contact us first to communicate (24h customer service).

4. junsun brand introduction: platform top 10 brands, junsun has 2000k+ fans. over the past decade, we have served over 5 million users worldwide, popular among customers. our goal is to keep working hard to make innovative hardware & software of the car multimedia player radio to give you that personalized experience. we provide updates for firmware, software, ui, navigation maps for free.

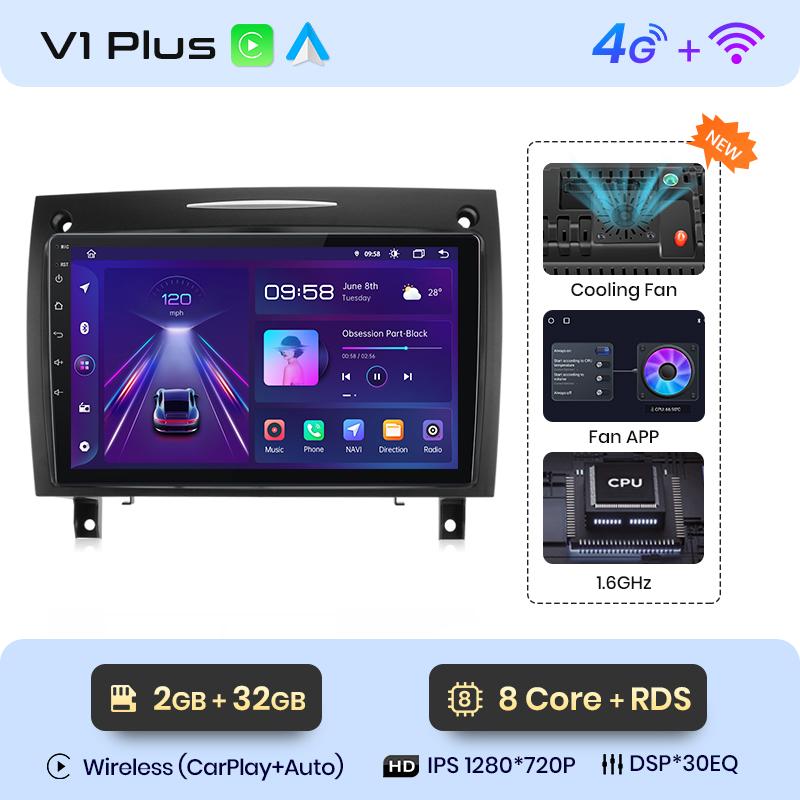

>> junsun v1 series radio for mercedes benz slk class r171 2004 2005 2006 2007 2008 2009 2010 2011 Basic functions: 1, android 12 + built-in wireless carplay/android auto; 2, ips hd 1280*720p screen, delivers a clearer and more vibrant picture; 3, octa core 1.6ghz + ddr3 (1gb/2gb/4gb/6gb) flash + (16gb/32gb/64gb/128gb) memory; 4, 4g network + steering wheel control + rds +built-in navigation offline maps + high-quality dsp chip makes the sound quality playback even better; 5, junsun radios' power cable is pin to pin, can be directly connected to the car power interface, easy to install.

> product's features: 1, personalized ui design, common functions are integrated into the desktop, and allowing you to switch, support day and night mode; 2, online radio: relies on the internet to search multiple channels (covers 20 countries' stations) 3, advanced voice control: control radio by voice, improve driving safety; 4, gps track: using the “junsun oline” app to view driving tracks, parking locations, and remote surveillance shooting (need buy dashcam);

Optional accessories: 1, ahd rear camera: higher video resolution and stable transmission; 2, adas & gps tracer dvr: you can check tracking information and parking location on your phone; 3, tire pressure monitoring: automatically update tire pressure and temperature to ensure your driving safety; 4, obd2: more accurate detection and repair of vehicle problems; 5, external microphone: support for connecting microphones with 3.5mm port; 6, dab+: using digital signal transmission, it can provide more stable and clear audio effect.

The radio will switch between day and night modes using car headlights to adjust the overall brightness of the screen to match the surrounding environment. common functions are integrated into the desktop, enabling you to switch between navigation, music, bluetooth calls, and other common features with just one click. junsun's personalized ui design enhances convenience and safety throughout your journey.

Ps: if you receive ui3.0, and want to update ui4.0, please contact online service for help

The junsun radio supports wireless carplay and android auto, allowing you to use smartphone functions and applications such as navigation, music, calls, and messaging during your journey. it provides a high-quality audio experience, enhancing the entertainment and convenience of your driving experience.

Ps:v1 c/v1 pro c/v1 plus version are supported.

Dsp is a powerful tool that optimizes sound quality and adapts to various environments. it fine-tunes audio parameters like equalization, bass filtering, and sound folding, ensuring optimal sound performance tailored to your car and speaker setup.

Experience the exclusive "junsun online" app designed by junsun, where you can effortlessly track your vehicle's real-time location, replay historical routes, and remotely monitor and capture with just one click (requires the purchase of a dashcam). this feature not only allows you to gain insights into your driving performance but also enhances overall driving safety and experience.

Gelişmiş sürücü destek sistemleri, 1080p hd çekim, gizli kurulum, geniş ekran gösterimi, güvenli sürüş sağlama.

With the real-time image display, you can clearly see the blind spots and obstacles behind your vehicle, greatly reducing the risk of reversing accidents.

Junsun car navigation system offers built-in offline maps and online map support, allowing you to find the right route at any time. regardless of the network conditions, we ensure that your navigation experience remains uninterrupted. and we provide free updates, ensuring that you always have the latest map data.

Enjoy superior multitasking, easy-to-navigate interface, enhanced visuals, adjustable settings and touch-sensitive controls. e.g. navigation for the main driver, playing video for the passenger, or one side listening to music and the other side turning on adas dvr functions etc.

Connect your car navigation system to an external display and enjoy a larger screen experience. the av-out feature allows you to project the content and functionality of your navigation system onto supported external display devices, delivering a clearer and more immersive audio-visual experience.

Faqs 1. how to connect the rear view camera? Red cable ② is connected to the backup light "+" 2) black cable ① is connected to the “gnd” 3) the reversing detection cable ④ (brown color) is connected to the red cable ③ which extending from the video input cable, please follow the picture below to connect.

If the screen displays abnormally after connecting v1 plus/v2 plus, please enter the factory settings to adjust the camera format. go to settings-car information-about device-8878-backcar setup and change the camtype/camformat to match the camera format.

2.how to set the steering wheel controls?

Before starting the setup, please confirm that the canbus box and 8pin serial cable are connected to the multimedia !!!

1) there is canbus in the product, if you buy v1/v1.c/v1 pro/v1 pro.c/v1 plus, please refer to the picture to set and choose oudi-your car model.

2) there is canbus in the product, if you buy v1 plus/v2 plus 3d, please refer to the picture to enter the canbus setting and select 211 / 32 and save.

3) if it is still not available after completing the settings, please refer to the following figure to complete the learning of the steering wheel buttons

3.how to connect wireless carplay and android auto? For the first connection, you need to turn on the phone's bluetooth to pair with the car's bluetooth. After the pairing is successful, the car radio will automatically jump to the zlink or autolink interface At this time, the phone pops up a message prompting "use carplay with zlink or autolink Then turn on the wifi of the mobile phone, and the carplay will be connected

4.how to connect wired carplay and android auto? Please use your original data cable to connect the phone to the 4 pin usb cable, then turn on the carplay/android auto function on your phone and the "autolink" or "zlink5" icon on the device to connect.

5.how to change the boot logo? Due to copyright issues, the logo cannot be displayed. if needed, please contact customer service for methods to modify the logo.

6.this is the cable location diagram for your reference

Processor Type: AMP7388 Origin: Mainland China Remote control car radio: By "Junsun Online" APP Digital Media Format: Mp3 Built-in CD player: no Special Features: Built-In Speaker/Microphone Preset Station: Set by yourself Built-in DVD Player: no GPS navigation map: Built-in offline map, free update Din: Double Din Warranty Worry-Free: 2 Years warranty AV-OUT: Need converter Mercedes-Benz Model: SLK300 Out Power: 4*45W Material: Composite Material Display Size: 9" Category: Combination product Built-in Screen: Yes For Vehicle Brands/Model: Mercedes-Benz Max External Memory: 256G RAM: 1g Item Size: 9.0 inch Supports Wireless Android Auto/CarPlay: Sync phone to Radio (Optional) Shipping Worry-Free: Within 48 business hours Brand Name: Junsun TF/Micro SD Slot: 2 Certification: CE Item Weight: 2.5 Online Radio: Search multiple channel (Optional) Voltage: 12 V Worry-Free Service: 24/7 customer support Processor Speed: 1.6GHz Resolution: 1280*720P IPS (Optional) SLK300-Year: 2009 Original radar displaying: Support for Mercades Benz SLK Class R171 2004-2011 SLK 200 280 300 Support for Netflix: Supports APK installation Is touch screen: Yes Operating System: Android 12 RDS: Support for Mercades Benz SLK Class R171 2004-2011 SLK 200 280 300 Interface: USB, RCA OSD Language: Chinese (Simplified) Chipset: MTK8259/8163 (Optional) ROM: 32G Accessory Type: Power Cable/USB cable/GPS model/Video input cable Supports AI voice control: Allow you to make phone calls, navigate, play music... (Optional) Tuner Type: 4745/MT6625N
