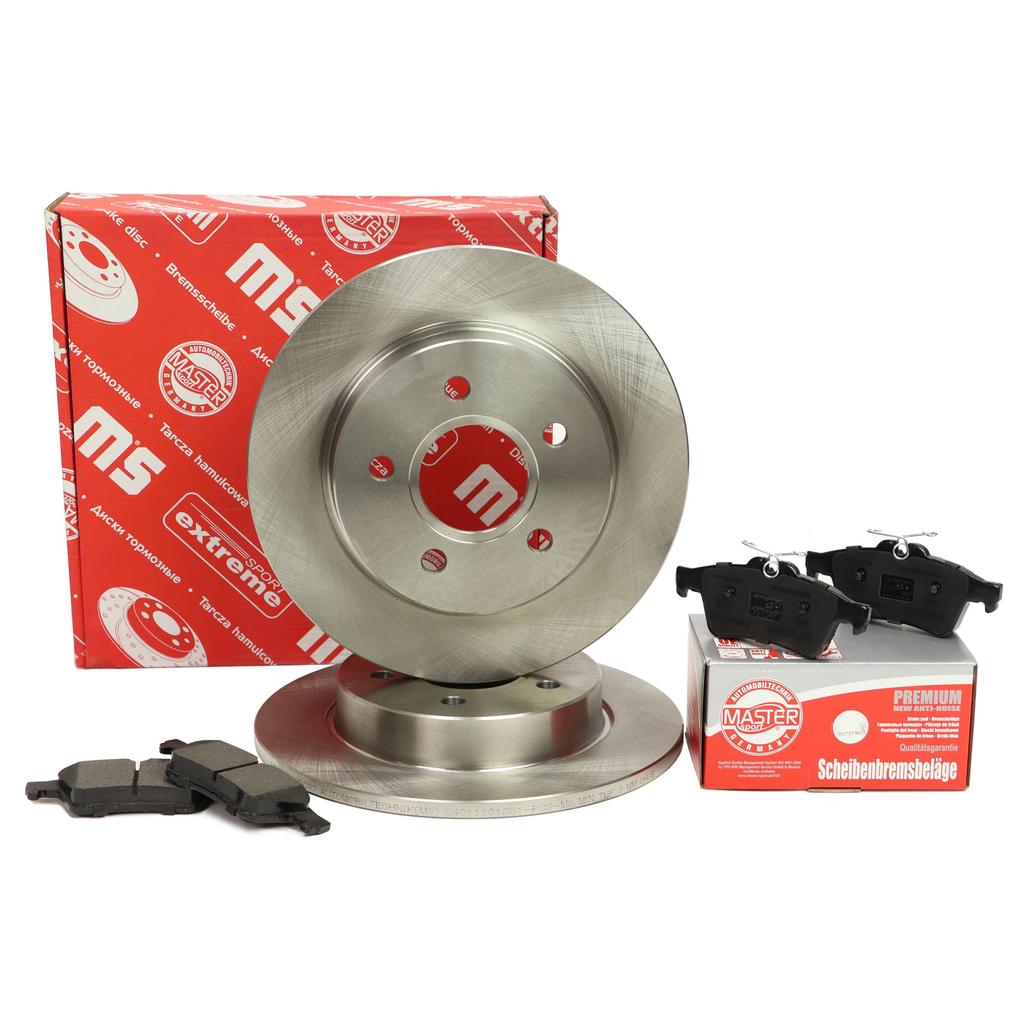

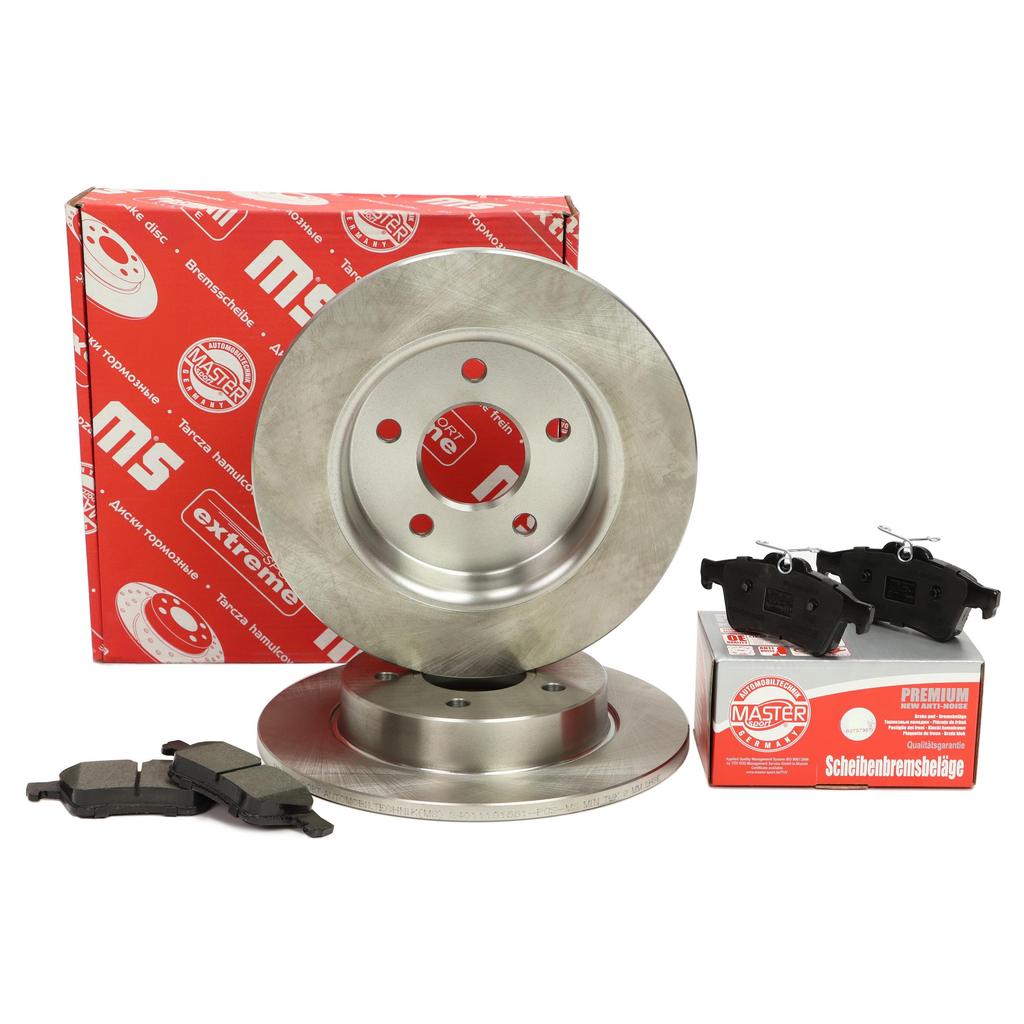

Rear Brake Discs + Pads Ford C-Max (Dm2), Focus C-Max (Dm2), Focus Ii

Product code: 201101550

TECHNICAL DATA:

• Mounting side: Rear axle • Quantity unit: Set

• Disc type Brake disc: full • Outer diameter [mm]: 265 [mm] • Brake disc thickness [mm]: 11.0 [mm] • Height [mm]: 40.8 [mm] • Bore Ø [mm]: 13.7 [mm] • Minimum thickness [mm]: 9.0 [mm] • Inner diameter [mm]: 152.0 [mm] • Number of holes: 5 • Centring hole diameter [mm]: 63.5 [mm] • Hole spacing Ø [mm]: 108.0 [mm]

• Width [mm]: 123 [mm] • Thickness [mm]: 15.8 [mm] • Height [mm]: 52 [mm] • Wear warning contact: not prepared for wear indicator • Wear warning contact: without wear contact • Braking system: ATE • Additional information: with damping pad

The best quality at a surprising price from Master-Sport Germany!

Master-Sport brake systems are characterized by excellent parameters:

• Optimal selection of the material mixture with They are made of • They absorb vibrations thanks to the use of the Anti-Noise • They dissipate heat very well thanks to the appropriate selection of the pad base alloy • Increased corrosion resistance thanks to the protective coating • The non-flammable mixture ensures vibration and squeal dampening • High-quality cast iron used for disc production • Discs balanced at the end of the production process • Discs ground on both sides

--- ATTENTION! ---

In one car model, there may be different variants of parts.

Prepare the necessary information about your car and then compare it with the offer.:

• brand • model • capacity • power • year of production • full chassis number - VIN (17 characters)

If you are unsure about the correct selection of parts, it is recommended to verify them after purchase using the VIN number.

​​

Applications:

FORD

• C-MAX (DM2) 1.8 MPV | 1,798ccm 90 KW / 122 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.6 TDCi MPV | 1,560ccm 74 KW / 101 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.6 MPV | 1,596ccm 74 KW / 100 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.8 MPV | 1,798ccm 92 KW / 125 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.8 Flexifuel MPV | 1,798ccm 92 KW / 125 HP | 2007.02 - 2010.09 • C-MAX (DM2) 2.0 MPV | 1,999ccm 107 KW / 145 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.6 TDCi MPV | 1,560ccm 66 KW / 90 HP | 2007.02 - 2010.09 • C-MAX (DM2) 1.6 TDCi MPV | 1,560ccm 80 KW / 109 HP | 2007.02 - 2010.09 • C-MAX (DM2) 2.0 TDCi MPV | 1,997ccm 100 KW / 136 HP | 2007.02 - 2010.09 • C-MAX (DM2) 2.0 TDCi MPV | 1,997ccm 81 KW / 110 HP | 2008.02 - 2010.09 • C-MAX (DM2) 1.8 TDCi MPV | 1,753ccm 85 KW / 115 HP | 2007.02 - 2010.09 • FOCUS C-MAX (DM2) 1.8 MPV | 1,798ccm 88 KW / 120 HP | 2003.10 - 2007.03 • FOCUS C-MAX (DM2) 1.6 TDCi MPV | 1,560ccm 80 KW / 109 HP | 2003.10 - 2007.03 • FOCUS C-MAX (DM2) 2.0 TDCi MPV | 1,997ccm 100 KW / 136 HP | 2003.10 - 2007.03 • FOCUS C-MAX (DM2) 1.6 MPV | 1,596ccm 74 KW / 100 HP | 2003.10 - 2007.03 • FOCUS C-MAX (DM2) 2.0 MPV | 1,999ccm 107 KW / 145 HP | 2004.03 - 2007.03 • FOCUS C-MAX (DM2) 1.8 MPV | 1,798ccm 92 KW / 125 HP | 2004.04 - 2007.03 • FOCUS C-MAX (DM2) 1.6 Ti MPV | 1,596ccm 85 KW / 115 HP | 2004.08 - 2007.03 • FOCUS C-MAX (DM2) 1.6 TDCi MPV | 1,560ccm 66 KW / 90 HP | 2005.02 - 2007.03 • FOCUS C-MAX (DM2) 1.8 TDCi MPV | 1,753ccm 85 KW / 115 HP | 2005.01 - 2007.03 • FOCUS C-MAX (DM2) 1.8 Flexifuel MPV | 1,798ccm 92 KW / 125 HP | 2006.01 - 2007.03 • FOCUS II (DA_, HCP, DP) 1.6 TDCi liftback | 1,560ccm 74 KW / 100 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.6 liftback | 1,596ccm 74 KW / 100 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.6 Ti liftback | 1,596ccm 85 KW / 115 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 2.0 liftback | 1,999ccm 107 KW / 145 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.4 liftback | 1,388ccm 59 KW / 80 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.6 TDCi liftback | 1,560ccm 80 KW / 109 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 2.0 TDCi liftback | 1,997ccm 100 KW / 136 HP | 2004.07 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.6 TDCi liftback | 1,560ccm 66 KW / 90 HP | 2005.01 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.8 TDCi liftback | 1,753ccm 85 KW / 115 HP | 2005.01 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.8 Flexifuel liftback | 1,798ccm 92 KW / 125 HP | 2006.01 - 2012.09 • FOCUS II (DA_, HCP, DP) 2.0 TDCi liftback | 1,997ccm 81 KW / 110 HP | 2008.02 - 2011.07 • FOCUS II (DA_, HCP, DP) 1.8 liftback | 1,798ccm 92 KW / 125 HP | 2006.03 - 2012.09 • FOCUS II (DA_, HCP, DP) 1.6 LPG liftback | 1,596ccm 85 KW / 115 HP | 2009.10 - 2011.07 • FOCUS II cabriolet 1.6 cabriolet | 1,596ccm 74 KW / 100 HP | 2006.10 - 2010.09 • FOCUS II cabriolet 2.0 cabriolet | 1,999ccm 107 KW / 145 HP | 2006.10 - 2010.09 • FOCUS II cabriolet 2.0 TDCi cabriolet | 1,997ccm 100 KW / 136 HP | 2006.10 - 2010.09 • FOCUS II sedan (DB_, FCH, DH) 1.6 TDCi sedan | 1,560ccm 74 KW / 100 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.4 sedan | 1,388ccm 59 KW / 80 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.6 sedan | 1,596ccm 74 KW / 100 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.6 Ti sedan | 1,596ccm 85 KW / 115 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 2.0 sedan | 1,999ccm 107 KW / 145 HP | 2005.04 - 2011.07 • FOCUS II sedan (DB_, FCH, DH) 1.6 TDCi sedan | 1,560ccm 66 KW / 90 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.6 TDCi sedan | 1,560ccm 80 KW / 109 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.8 TDCi sedan | 1,753ccm 85 KW / 115 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 2.0 TDCi sedan | 1,997ccm 100 KW / 136 HP | 2005.04 - 2012.09 • FOCUS II sedan (DB_, FCH, DH) 1.8 Flexifuel sedan | 1,798ccm 92 KW / 125 HP | 2006.06 - 2011.07 • FOCUS II sedan (DB_, FCH, DH) 2.0 TDCi sedan | 1,997ccm 81 KW / 110 HP | 2008.02 - 2011.07 • FOCUS II sedan (DB_, FCH, DH) 1.8 sedan | 1,798ccm 92 KW / 125 HP | 2006.03 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.6 TDCi Kombi | Station Wagon | Turnier | 1,560ccm 74 KW / 100 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.4 Kombi | Station Wagon | Turnier | 1,388ccm 59 KW / 80 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.6 Kombi | Station Wagon | Turnier | 1,596ccm 74 KW / 100 HP | 2004.07 - 2011.07 • FOCUS II Turnier (DA_, FFS, DS) 1.6 Ti Kombi | Station Wagon | Turnier | 1,596ccm 85 KW / 115 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 2.0 Kombi | Station Wagon | Turnier | 1,999ccm 107 KW / 145 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.6 TDCi Kombi | Station Wagon | Turnier | 1,560ccm 80 KW / 109 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 2.0 TDCi Kombi | Station Wagon | Turnier | 1,997ccm 100 KW / 136 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.6 TDCi Kombi | Station Wagon | Turnier | 1,560ccm 66 KW / 90 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.8 TDCi Kombi | Station Wagon | Turnier | 1,753ccm 85 KW / 115 HP | 2004.07 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.8 Flexifuel Kombi | Station Wagon | Turnier | 1,798ccm 92 KW / 125 HP | 2006.01 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 2.0 TDCi Kombi | Station Wagon | Turnier | 1,997ccm 81 KW / 110 HP | 2008.02 - 2011.07 • FOCUS II Turnier (DA_, FFS, DS) 1.8 Kombi | Station Wagon | Turnier | 1,798ccm 92 KW / 125 HP | 2006.03 - 2012.09 • FOCUS II Turnier (DA_, FFS, DS) 1.6 LPG Kombi | Station Wagon | Turnier | 1,596ccm 85 KW / 115 HP | 2009.10 - 2012.09
