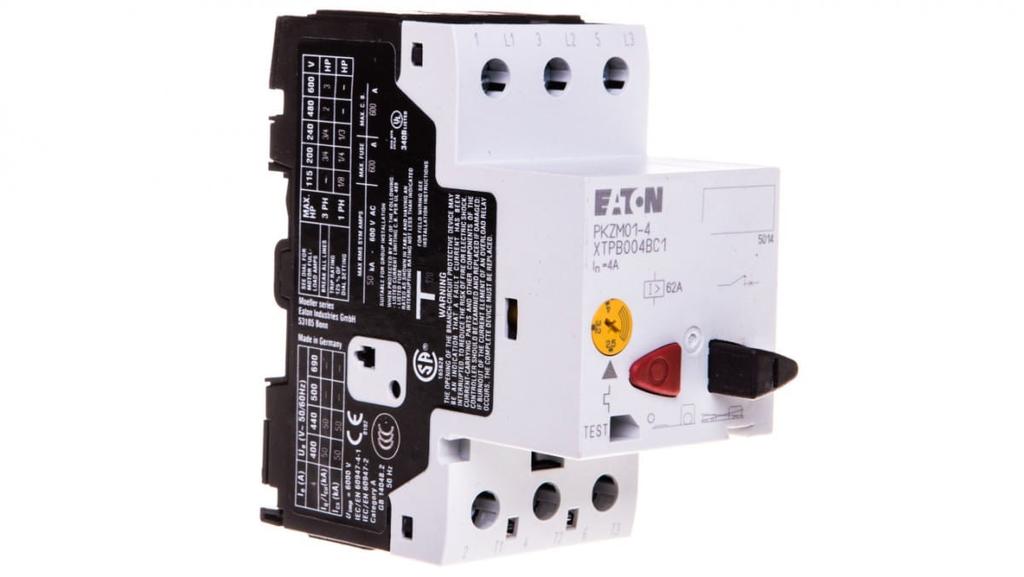

Motor Circuit Breaker Pkzm01-4 3P 1.5Kw 2.5-4A 278482

series: PKZ

Protection degree (IP): IP20

Setting range of the instantaneous short-circuit release [A] to: 56

Setting range of the instantaneous short-circuit release [A] from: 56

Setting range of the overload release [A] to: 4

Setting range of the overload release [A] from: 2.5

Rated operating power at AC-3, 230 V [kW]: 0.7500

Rated operating power at AC-3, 400 V [kW]: 1.5000

Rated short-circuit breaking capacity Icu at 400 V, AC: 50

Rated continuous current Iu [A]: 4

CN: 85362010 Phase loss sensitivity: Yes Length: 99 EAN: 4015082784829 Manufacturer index: 278482 Number of poles: 3 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Trigger method: Thermomagnetic Width: 95 Weight: 0.3200 Height: 50 With integrated auxiliary contact: No With integrated undervoltage release: No
