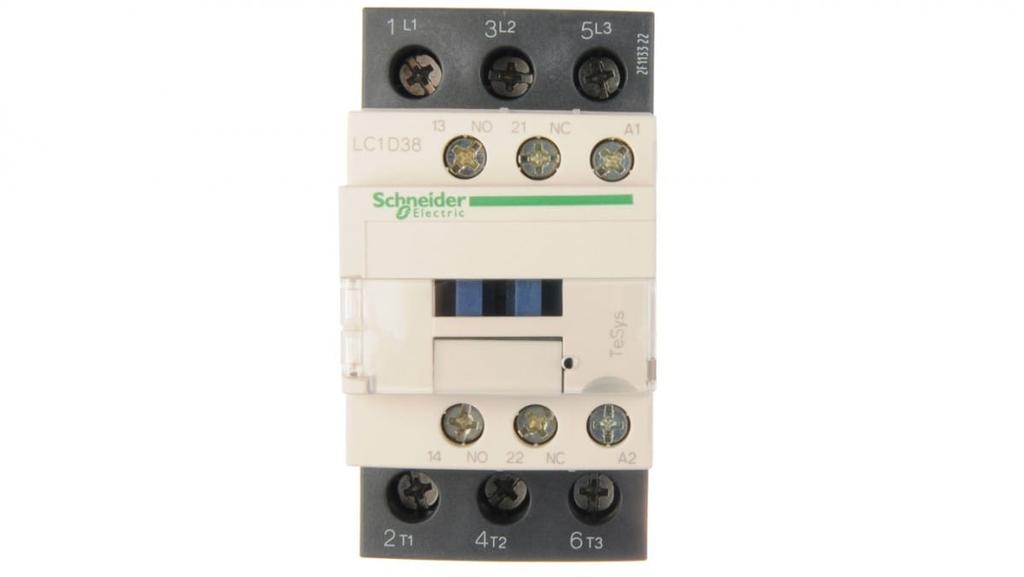

Tesys Deca Power Contactor 38A 3P 230V Ac 1NO 1NC Lc1D38P7

Manufacturer's index: LC1D38P7

series: TeSys Deca

Rated operating power at AC-3, 400 V [kW]: 18.5000

Rated control voltage Us for AC 50 Hz [V] up to: 230

Rated control voltage Us for AC 50 Hz [V] from: 230

Rated control voltage Us for AC 60 Hz [V] up to: 230

Rated control voltage Us for AC 60 Hz [V] from: 230

Rated operational current Ie for AC-1, 400 V [A]: 50

Rated operational current Ie at AC-3, 400 V [A]: 38

CN: 85364900 Length: 115 EAN: 3389110352610 Number of main break contacts: 0 Number of main make contacts: 3 Number of auxiliary break contacts: 1 Number of auxiliary make contacts: 1 PKWiU: 27.12.24.0 Type of control voltage: AC Type of main circuit connection: Connection screw Width: 95 Weight: 0.4200 Modular version: No Height: 50
