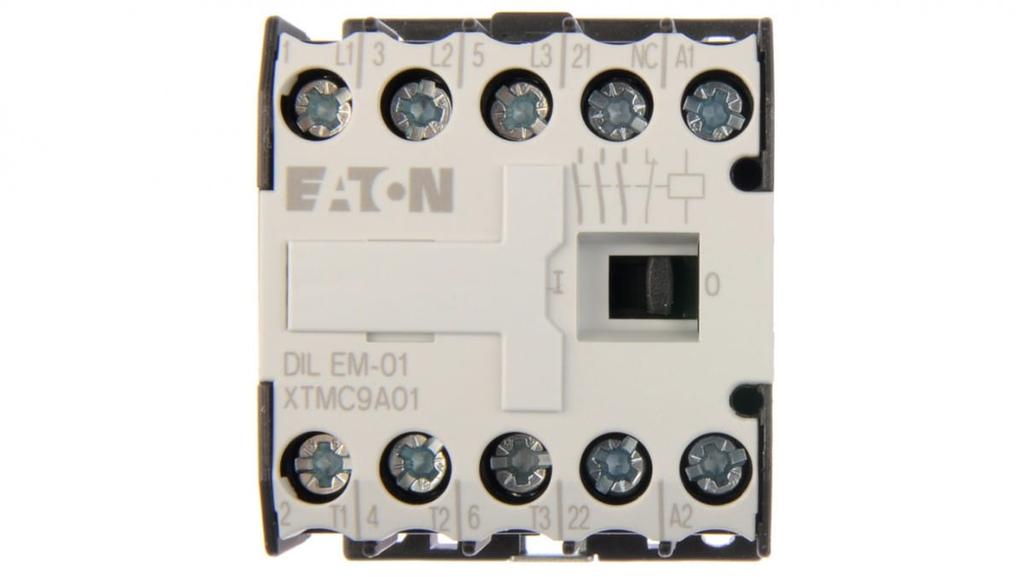

Power Contactor 9A 3P 24V Ac 0Z 1R Dilem-01(24V50/60Hz) 020402

Manufacturer's index: 020402

series: DILE

Rated operating power at AC-3, 400 V [kW]: 4

Rated control voltage Us for AC 50 Hz [V] up to: 24

Rated control voltage Us for AC 50 Hz [V] from: 24

Rated control voltage Us for AC 60 Hz [V] up to: 24

Rated control voltage Us for AC 60 Hz [V] from: 24

Rated operational current Ie for AC-1, 400 V [A]: 22

Rated operational current Ie at AC-3, 400 V [A]: 9

CN: 85364900 Length: 60 EAN: 4015080204022 Number of main break contacts: 0 Number of main make contacts: 3 Number of auxiliary break contacts: 1 Number of auxiliary make contacts: 0 PKWiU: 27.12.24.0 Type of control voltage: AC Type of main circuit connection: Connection screw Width: 50 Weight: 0.1800 Modular version: No Height: 50
