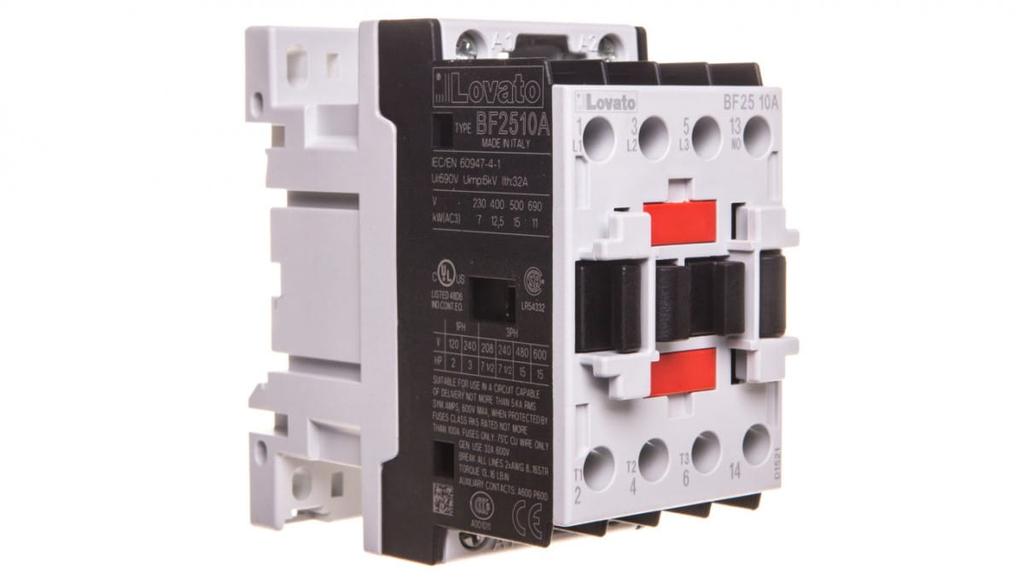

Power Contactor 3P 25A 12.5Kw At 400Vac Ac3, Coil 230Vac 50/60Hz, 1NO 0CR Bf2510A230

Manufacturer's index: BF2510A230

Rated operational power at AC-3, 400 V [kW]: 12.5000

Rated control voltage Us for AC 50 Hz [V]: 230

Rated control voltage Us for AC 50 Hz [V] to: -3

Rated control voltage Us for AC 60 Hz [V]: 230

Rated operational current Ie for AC-1, 400 V [A]: 32

Rated operating current Ie at AC-3, 400 V [A]: 25

CN: 8536508000 Length: 90 EAN: 8013975160763 Number of main NC contacts: 0 Number of main NO contacts: 3 Number of auxiliary NC contacts: 4 Number of auxiliary NO contacts: 1 PKWiU: 27.33.11.0 Type of control voltage: AC Type of main circuit connection: Connection Screw Series: BF Contactors Width: 85 Weight: 0.3600 Modular version: No Height: 45
