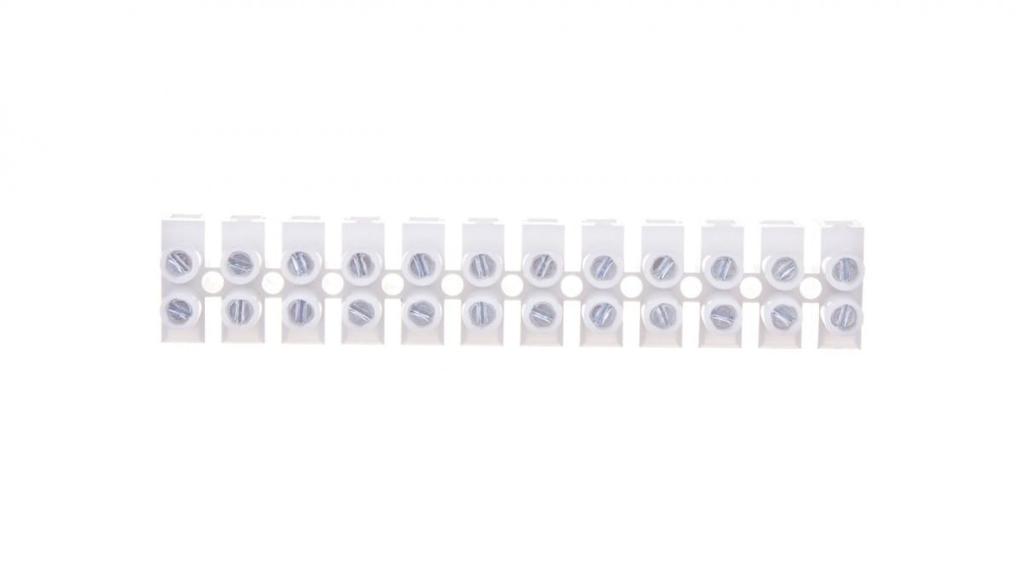

Threaded Terminal Block 1.5mm2 12-Track Polyamide Pa66 With White Washer Lpa12-1.5 89091110

Length [mm]: 96.2

Manufacturer's index: 89091110

Rated voltage [V]: 450

Distance between hole axes [mm]: 8

Rated current In [A]: 17.5000

Connectable cross-section of solid conductor [mm2] up to: 1.5

Connectable cross-section of solid conductor [mm2] from: 1.5

Connectable cross-section of stranded conductor without ferrule: 1.5

Type of electrical connection 1: Screw connection

Type of electrical connection 2: Screw connection

series: LPA

Width / grid size [mm]: 17

Explosion-proof version "EEx e": No

Explosion-proof version Ex-e - confirmed: No

Height at lowest mounting position [mm]: 14.5000

CN: 85369010 Length: 100 EAN: 8595055702334 Color: White Number of poles: 12 Number of terminals per pole: 2 PKWiU: 27.33.13.0 Connection position: Side / side Transparent: No Type of insulating material: Other Width: 20 Weight: 0.0300 Closing plate required: No Height: 20
