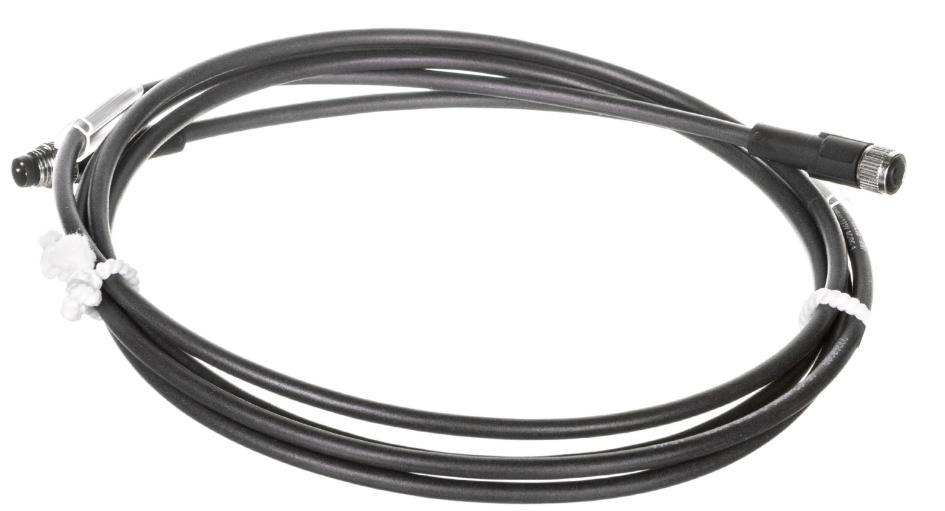

Connection Cable 2M /M8 Plug - M8 Socket/ Fieldbus Ab-C3-M8Ms-2,0Pur-M8Fs 22260209

Halogen-free: Yes

Permissible cable temperature for mobile connections [°C] d: 80

Permissible cable temperature for mobile connections [°C] o: -40

Permissible temperature of permanently installed cable [°C] up to: 80

Permissible temperature of permanently installed cable [°C] from: -25

Cable length [m]: 2

Manufacturer's index: 22260209

Rated voltage [V]: 60

Rated current In [A]: 3

Type of plug connection, external side: Male (plug)

Type of electrical connection, external side: M8

Type of electrical connection, in housing: M8

Type of plug, in housing: Female (socket)

series: UNITRONIC FIELDBUS

Cable routing, external side: Straight

Cable routing, housing: Straight

Radiation cross-linked: No

CN: 85444290 Length: 180 EAN: 4044774460901 Shielded: No Number of poles: 3 Body material: CuSn Contact coating material: Ni/Au Type of cable sheath material: PUR (polyurethane) Type of cable: Multi-core Width: 180 Weight: 0.2000 Height: 40 With LED indicator: No Size: 2m
