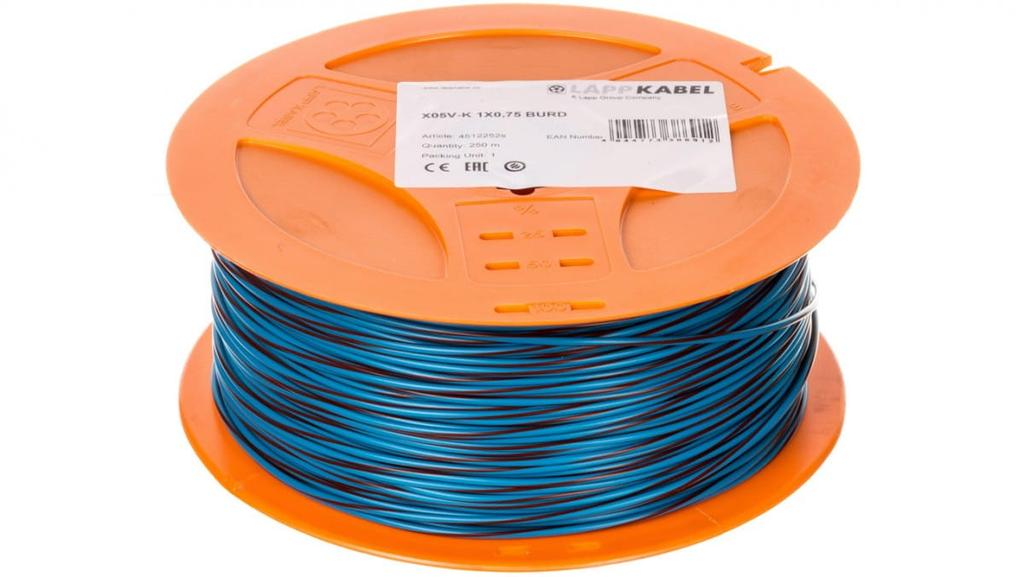

Installation Cable X05V-K 0.75 Blue/Red 4512252S /250M/

Halogen-free EN 50267-2-2: No

Permissible cable temperature for flexible connections [°C] d: 70

Permissible cable temperature for flexible connections [°C] o: 5

Permissible cable temperature for fixed installation [°C] up to: 80

Permissible cable temperature for fixed installation [°C] from: -30

Manufacturer's index: 4512252S

Rated voltage U [V]: 500

Rated voltage U0 [V]: 300

Low smoke emission (according to EN 61034-2): No

Low temperature resistance (according to EN 60811-1-4): No

Oil resistant (according to EN 60811-2-1): No

Approximate outer diameter [mm]: 2.7000

Nominal core cross-section [mm2]: 0.7500

CN: 85444995 Length: 205 EAN: 4044773386912 Screen: No Core insulation: PVC Core class: Class 5 = flexible Insulation color: Several Flame retardant: According to EN 60332-1-2 Series: X05V-K Width: 205 Weight: 3.4800 Height: 90 Size: 250m
