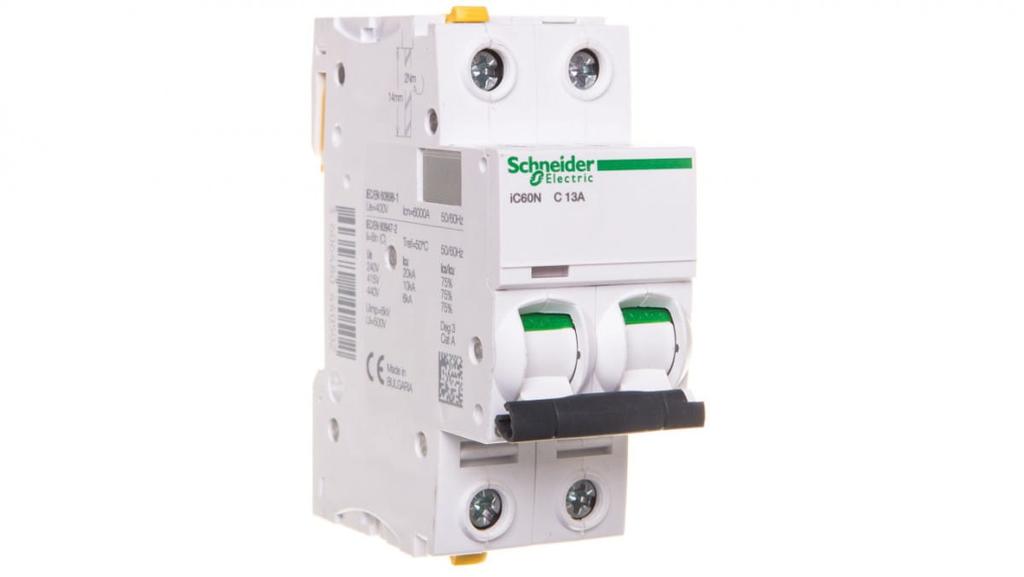

Circuit Breaker 2P C 13A 6Ka Ac Ic60N-C13-2 Acti9 A9F04213

Frequency [Hz]: 50

Installation depth [mm]: 78.5000

Manufacturer's index: A9F04213

Number of poles (total): 2

Rated voltage [V]: 400

Rated current [A]: 13

series: Acti9

Protection degree (IP): IP20

Rated short-circuit breaking capacity according to EN 60898 [kA]: 6

Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 10

Tripping characteristic: C CN: 85362010 Length: 90 EAN: 3606480440502 Simultaneously disconnected N pole: No Overvoltage category: 4 Energy limitation class: 3 Possibility of additional equipment: Yes PKWiU: 27.12.22.0 Voltage type: AC Pollution degree: 3 Width: 70 Width expressed in number of modules: 4 Weight: 0.1000 Height: 35
