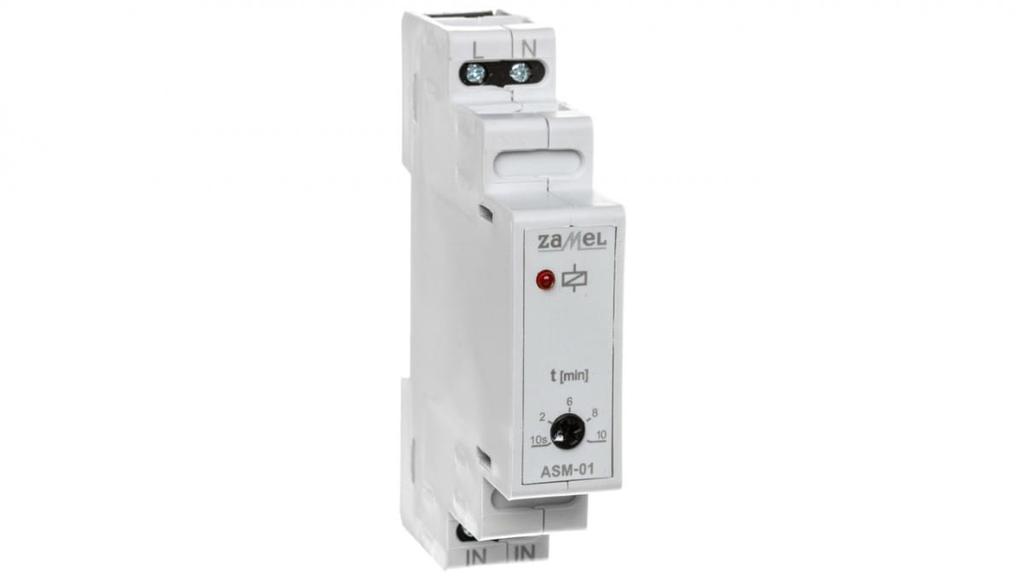

Staircase timer 16A 230V Ac 4000Va 1Z 10 Up to 10 Min Asm-01 Ext10000004

Control voltage frequency 1 [Hz]: 50

Control voltage frequency 1 [Hz] to: 60

Control voltage frequency 1 [Hz] from: 50

Installation depth [mm]: 66

Manufacturer's index: EXT10000004

Maximum switching capacity for fluorescent lamps (compensation): 750

Maximum switching capacity for fluorescent lamps (with compensation): 1000

Maximum switching capacity for fluorescent lamps [VA]: 500

Maximum switching capacity for incandescent lamps [W]: 2000

Maximum inrush current (cos ? = 0.6) [A]: 10

Control voltage 1 [V]: 230

Control voltage 1 [V] to: 230

Control voltage 1 [V] from: 230

Trigger delay [min]: 0.2

Trigger delay [min] to: 10

Trigger delay [min] from: 0.17

Type of control voltage 1: AC

series: EXTA

Supply voltage range from/to [V]: 230

Supply voltage range [V] to: 253

Supply voltage range [V] from: 195.5

Rated inrush current [A]: 16

CN: 8536490099 Duty cycle: Repeatable Length: 95 EAN: 5903669121121 Function: Electronic Current pulse switching function: Yes Number of changeover contacts: 0 Number of break contacts: 0 Number of make contacts: 1 Trigger warning: None PKWiU: 27.12.40.0 Type of supply voltage: AC Mounting method: DIN rail Width: 85 Width expressed in number of modules: 1 Connection system: 3 and 4 wires Weight: 0.0600 Height: 22 Size: S
