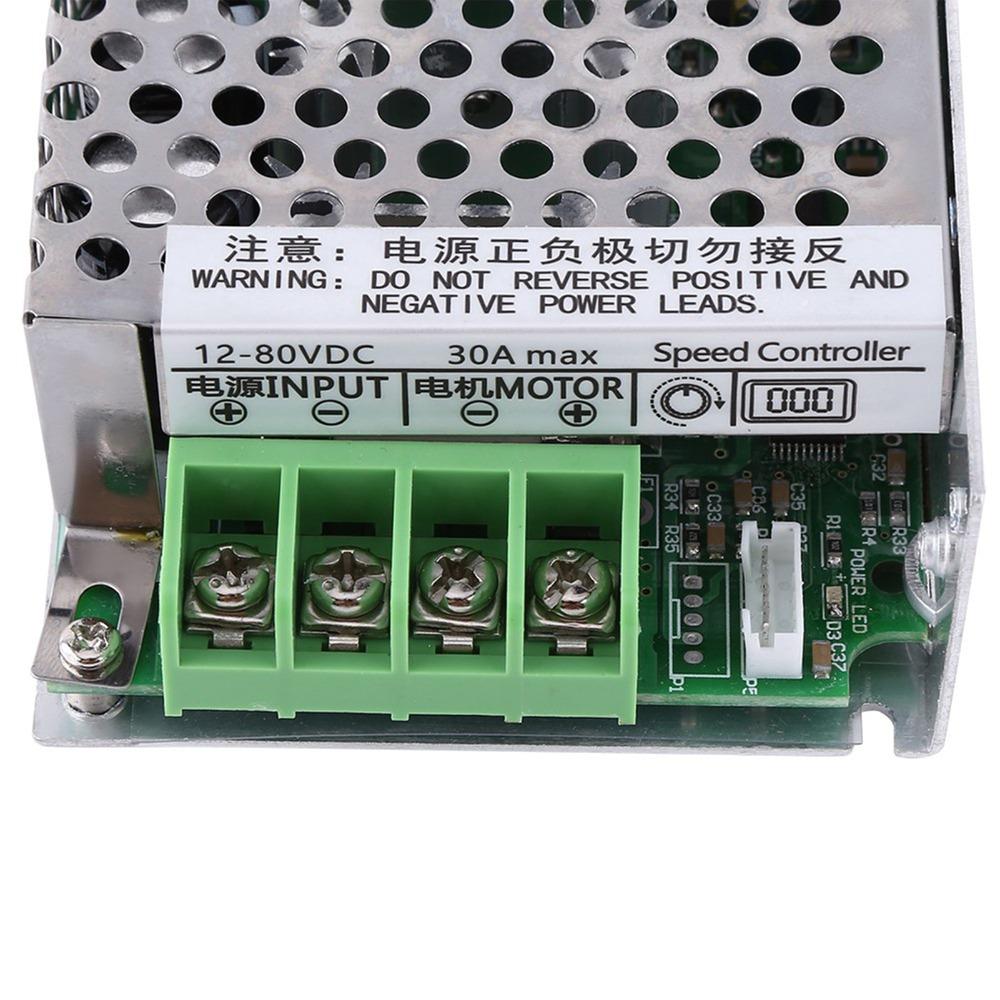

30A High Power PWM Motor Controller 12V-80V DC Speed Regulator Governor Industrial Equipment

Label:Yes [Technical Details] Input voltage: DC 12 V to 80 V. Output voltage: same as input voltage. Upper current: 30 A. PWM frequency: 21 kHz. Speed range: wide stepless adjustment. Make sure the positive and negative polarity is connected correctly, otherwise the controller may be damaged.

[Working Principle] 12 to 80 V PWM 30 A DC motor speed controller governor with digital display. Button switch variable stepless speed control regulator with slow start and slow stop. The input voltage can be DC 12 V to 80 V, and the output voltage matches the input voltage.

[Simple Use with Soft Start and Stop] This speed controller supports soft start and soft stop, which is convenient to set and helps reduce mechanical stress on the motor and shaft. Designed with a digital display panel for easy reading and convenient speed adjustment. [Wide Compatibility] Suitable for 12 V motors with output under 50 W, 24 V motors with output under 350 W, and 48 V motors with output under 500 W. The DC motor controller input connects to direct current only. Do not connect to alternating current, or the controller may be damaged.

[Compact and Long Lasting] This is a simple and easy to use DC motor speed controller with a small size and elegant appearance. Made with a circuit board that helps ensure a longer service life.

Specifications: Input Voltage: DC 12V-80V Output Voltage: 0-100% of the input voltage Maximum Current: 30A Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less Speed range: 0~100% PWM frequency: 21kHz Material: PCB ,Alloy Color: Multicolor Controller Size: 110 x 77 x 36mm / 4.37 x 3.03 x 1.41" Panel Size: 92 x 69x x13mm / 3.62 x 2.71 x 0.51"

Instruction:

Set 1: "000"-"100",Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. Set 2: "000"-"100",Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. Set 3: "000"-"080",The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value, the default is 0. Set 4: "000"-"100",The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025",The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%each time you press the up or down button.

Package Includes: 1 x Speed Controller
