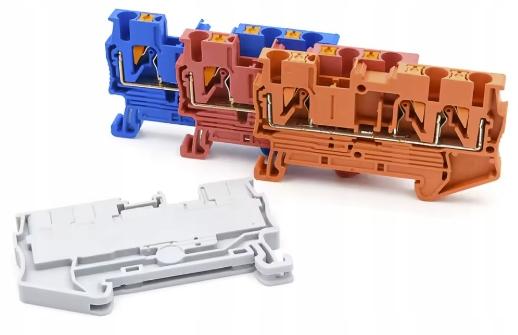

Zug St 1.5 Rail Connector Blue

✅ZUG ST 1.5 blue rail connector for DIN rail

62488-ST1.5blue / blue

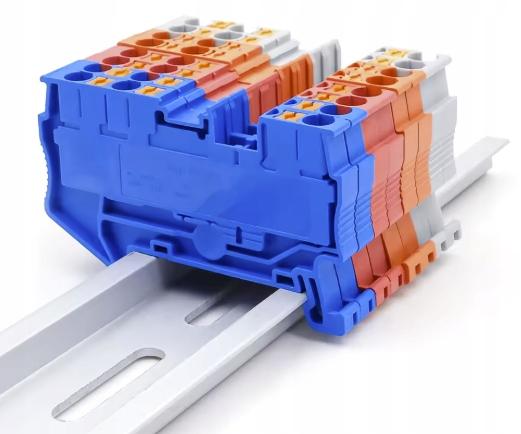

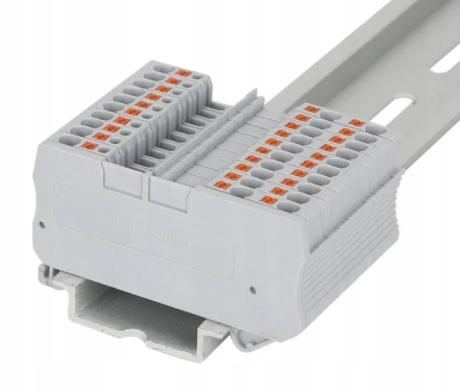

? Rail connectors, also known as strip or clamp connectors, commonly known as ZUG "zugs" are used to connect wires in distribution boards. They are most often mounted on a DIN / Euro / TS-35 rail individually or in rows.

?1 pc. - 1-level rail terminal block.

• 2 spring terminals

• Number of potentials: 1

• Recommended closing plate (plug): Yes

• Permissible cross-section of the connecting cable: from 0.2-1.5mm2, solid or stranded sleeve

• Rated current: 500v / 24A

• Mounting method: 35 mm DIN mounting rail

• Cable connection position: from above

• Type of insulating material: thermoplastic

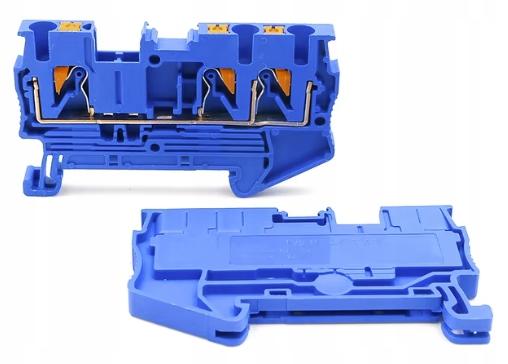

? The connector is characterized by a very strong and stable wire connection via a spring clamp.

• ✅The connector accepts both solid and stranded wires.

• ?It is recommended to use crimping ferrules for stranded wires.

? Accessories available for this type of connectors below?

? For the above connector, a cap symbol:

✅ We recommend capping only the last connector in the row.

• ? Caps are not used for each connector if they are mounted next to each other.

• ? Connectors mounted next to each other cap each other.

? For the above connector numerical markers:

ZB-3.5 or ZBFM-3.5

✅ The entire numbering range from 1-100 is available

? The markers fit WAGO, PHOENIX, ADELID, POKÓJ, SIMET... connectors (we recommend consulting the spacing and connector width)

The markers are made of plastic.

The tape is cut, which allows for tearing off individual markers.

✅Smaller markers can also be used for larger connectors

• ? Connection position:Push-in from the top or side.

• ? Material type: PVC

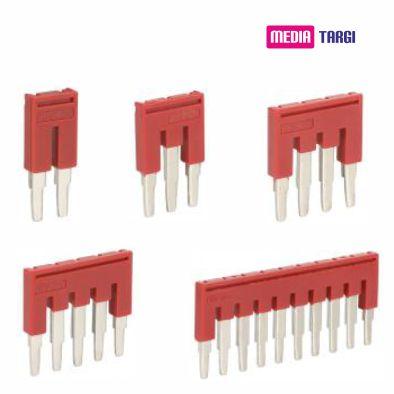

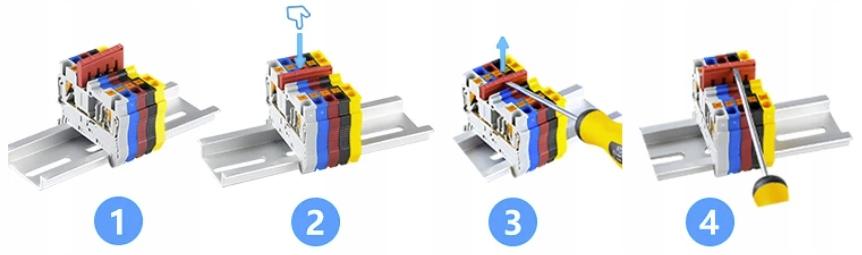

? For the above connector, bridge symbol:

• ✅ For 1.5mm connectors - FBS-3.5

• ✅ For 2.5mm connectors - FBS-5

• ✅ For 4mm connectors - FBS-6

• ✅ For 6mm connectors - FBS-8

• ✅ For 10mm connectors - FBS-10

• ✅ For 16mm connectors - FBS-12

• ✅ For connectors 35mm - FBS-16
