Hydraulic Cylinder Piston Seal 63x47x31mm (Compact/Combined)

Hydraulic cylinder piston seal 63 x 47 x 31.1 mm

Compact piston seal for hydraulic cylinders with dimensions 63 x 47 x 31.1 mm. Used, among others, in car lifts and other hydraulically powered workshop equipment.

Dimensions (ØD × Ød × H):

• 63 mm – outer diameter (cylinder diameter)

• 47 mm – inner diameter (piston rod diameter)

• 31.1 mm – seal installation height

Product type | Hydraulic cylinder piston seal

Dimensions | 63 × 47 × 31.1 mm

Outer Diameter | 63 mm

Inner Diameter | 47 mm

Height | 31.1 mm

Material | NBR rubber + PU rings + POM guide

Pressure resistance | up to 35 MPa / 5076 PSI

Working pressure | 25 MPa

Operating temperature range | from -30°C to +110°C

Working speed | 0.5 m/s

Color | orange / blue / black

Application | hydraulic cylinders, industrial machines, excavators, injection molding machines

Condition | new

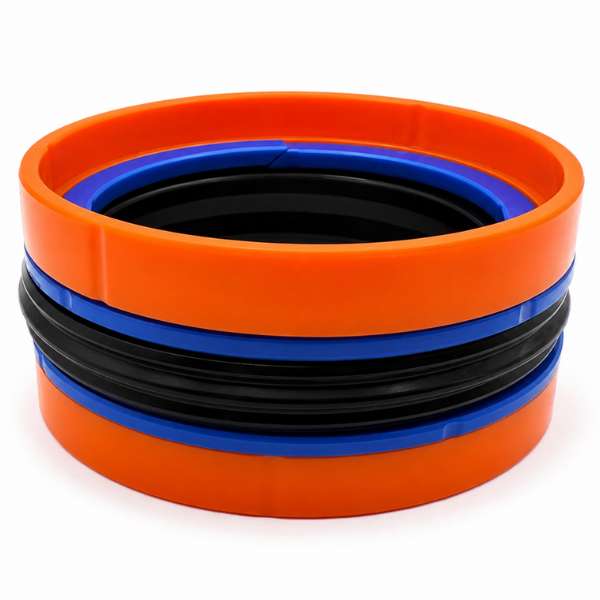

Piston seal construction Cylinder

This is a compact seal that combines several functions in one unit. The outer polyurethane rings act as guides and supports, while the central rubber element is responsible for proper dynamic sealing. This solution ensures stable piston operation under load and resistance to abrasion and high operating pressure.

When to replace the piston seal

A worn cylinder piston seal is manifested by the lifter falling spontaneously, a decrease in lifting force, or oil leaks inside the cylinder. Regular replacement restores full tightness of the system and operational safety of the device.

Do you have questions about selecting a piston seal?

Not sure if this size fits your cylinder? Call us – we'll help you choose the right seal based on the catalog number or dimensions. Tel. 534 920 100.

Service tip: When replacing the piston seal, always drain and refill the hydraulic oil and check the condition of the piston rod. A clean system and the correct oil extend the life of the new seal.
