Excursion Shx-6.3C Db - 3-Way Speaker Set

Excursion SHX-6.3C dB – 3-way speaker set with 4 165 mm woofers

Excursion SHX-6.3C dB is a 3-way car speaker set from the SHX Street High Power eXcursion series. The set has been prepared for users who expect powerful bass, high efficiency, and a more extensive soundstage than in classic 2-way sets.

The dB version, i.e. double Bass, includes as many as 4 SHX-6M woofers with a diameter of 165 mm, a SX-SAT mid-high frequency set, 6 passive crossovers, and MDF mounting panels. This configuration allows for greater efficiency, a stronger bass foundation, and better frequency separation in the car.

Double Bass in a 3-Way System

The Excursion SHX-6.3C dB combines the advantages of a 3-way system with an additional pair of woofers. This allows the bass section to work with a larger diaphragm surface, allowing the system to offer more dynamic, powerful, and more perceptible bass.

When two woofers are connected in parallel in one channel, a total impedance of 1.5 ohms is achieved. This configuration allows for more efficient use of the amplifier and higher power output. The set works well with Excursion amplifiers stable up to 2 Ohms.

The most important advantages of the Excursion SHX-6.3C dB

• 3-way car separate speaker set,

• SHX Street High Power eXcursion series,

• dB version with four 165 mm woofers,

• SX-SAT mid-high range set,

• 25 mm tweeters made of natural silk,

• 70 mm mid-range speakers,

• MDF mounting panels for SX-SAT installation,

• RMS power 180 W,

• maximum power 400 W,

• resulting impedance 1.5 Ohm when connected in parallel,

• efficiency 95 dB,

• frequency response 40–20,000 Hz,

• 6 passive crossovers included,

• strong sound character with a pronounced bass impact.

SHX Series – greater dynamics and higher efficiency

Excursion SHX sets were created as a more advanced alternative to entry-level speaker systems. Compared to the lower-end SX series, they offer a more mature, dynamic sound character and higher efficiency.

SHX woofers have an impedance of 3 Ohms. This allows them to more effectively utilize the amplifier's power. In the dB version, two woofers can be connected in parallel in one channel, achieving very powerful and dynamic bass reproduction.

SHX-6M Woofers – Four 165 mm Drivers

The set includes four SHX-6M woofers with a diameter of 165 mm. Their diaphragms are made of a 2-layer composite of paper, natural wool, and glass fiber. This construction is light, stiff, and well-damped.

The lower mass of the diaphragm improves the speaker's response. This results in more detailed midrange tones, and a better bass foundation. After a break-in period, the set can reveal an even fuller and more dynamic character.

The woofers have an LXPD dust cap in the style of a phase plug. This improves sound resolution at a wider listening angle, which is especially important for low-mounted door speakers.

EFF Magnet System and Effective Cooling

SHX-6M woofers utilize the EFF (Efficient Flux Field) magnet system. It is more powerful than standard solutions in this class and features a central hole that aids voice coil cooling and lowers the resonance frequency.

The extended voice coil gap allows for greater linear excursion of the diaphragm. This allows the woofers to offer higher efficiency, especially in the low frequency range. Aluminum voice coil formers and additional ventilation holes improve resistance to intense operation.

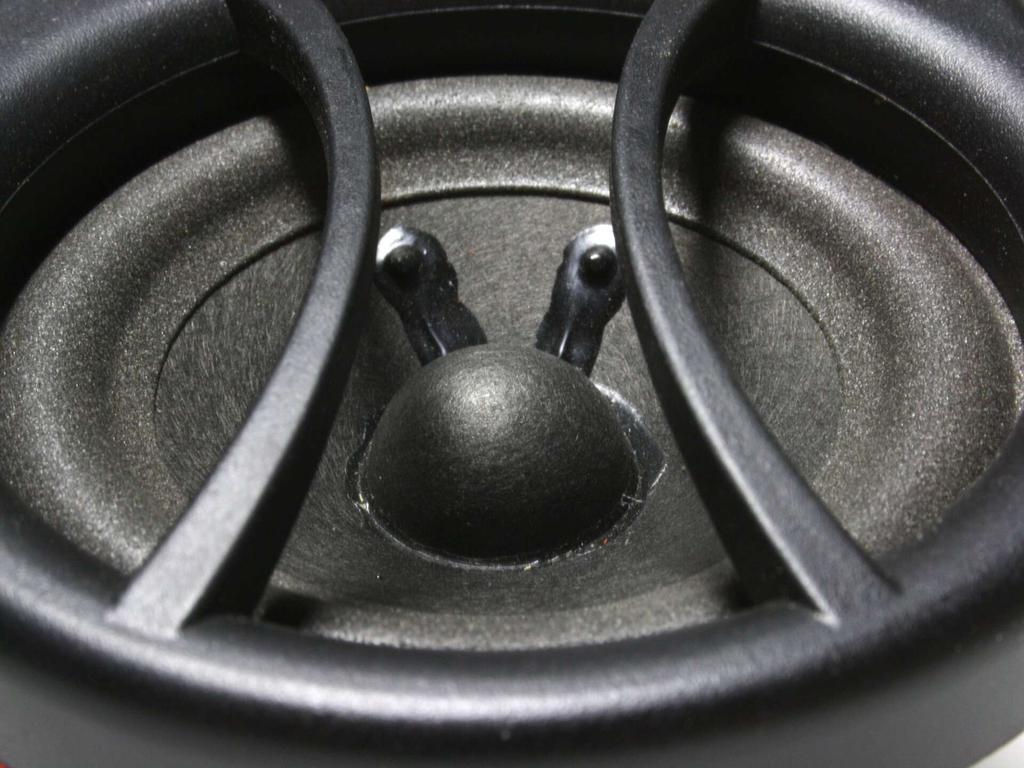

SX-SAT – Mid-Tweeter Section

The integrated SX-SAT system is responsible for the midrange and treble frequencies. It consists of 70 mm midrange drivers and 25 mm tweeters. The close proximity of the two drivers facilitates mid-high frequency alignment and improves soundstage coherence.

The midrange drivers utilize lightweight cones made from two layers of pressed, thin paper with an ADC coating. This allows them to reproduce vocals, instruments, and the upper midrange well.

The tweeters have natural silk domes. They provide clean, detailed, and pleasant highs. A neodymium magnetic system and ferrofluid cooling support the stable operation of the tweeters.

MDF panels for permanent installation

The set includes MDF mounting panels designed for permanent installation of the SX-SAT set. They can be used, for example, for installation in the A-pillars of a car.

This solution offers greater possibilities for adjusting the midrange and treble than traditional factory mounting. It allows for better directing the sound towards the listener and improving the stereo image.

6 dB/oct. passive crossovers.

The Excursion SHX-6.3C dB includes 6 passive crossovers. The set includes 2 SX-2WX crossovers for the midrange and tweeters and 4 SHX-2WX crossovers for the woofers.

The crossovers operate with a slope of 6 dB/oct. They use MKP audio capacitors and coils made of thick copper wire. Small dimensions and low weight make installation in a car easy.

The crossovers are designed to work with optional Excursion XLR resistive attenuators, which allow you to lower the volume level of the midrange or tweeter section.

• Manufacturer: Excursion

• Model: SHX-6.3C dB

• Series: SHX Street High Power eXcursion

• Type: car speaker set separated

• Design: 3-way

• Number of woofers: 4 pieces

• Speaker diameter: tweeter 25 mm / midrange 70 mm / woofer 165 mm

• RMS power: 180 W

• Maximum power: 400 W

• Impedance: 1.5 Ohm with parallel connection of two woofers in one channel

• Frequency response: 40–20,000 Hz

• Efficiency: 95 dB / 1W / 1m

• Woofer magnets: 12.5 oz ferrite

• Woofer mounting depth: 60 mm

• Mid-high frequency set mounting depth: 30 mm

• Polish importer warranty: 24 months

SX-SAT tweeter construction

• 25 mm natural silk dome,

• Activ Damping Coating anti-resonance coating,

• OFC copper wire voice coil,

• ferrofluid cooling,

• neodymium magnetic system,

• OFC wires with Plug&Play connectors,

• polarity reversal option.

SX-SAT midrange driver construction

• 70 mm diameter,

• ADC diaphragm made of two pressed layers of thin paper,

• natural and detailed midrange sound,

• double-pressed foam surround,

• surround surround protected against UV radiation,

• steel basket with large ventilation holes,

• EFF magnet system,

• pure copper voice coil on an aluminum former,

• OFC wires with Plug&Play connectors.

SHX-6M woofer construction

• 165 mm diameter,

• 2-layer ADC cone made of paper, natural wool and glass fiber,

• a cone about 10% lighter than a classic paper cone,

• LXPD dust cap in the style of a phase plug,

• double-pressed foam surround,

• UV protection for the surround,

• steel basket with additional ventilation holes,

• EFF magnet system with a central hole,

• extended voice coil gap,

• 3 Ohm voice coil made of copper wire,

• aluminum former with cooling holes,

• rubber magnet protection cap,

• optional XGR6 grilles, sold separately.

Possible Connection Methods

In a set with four woofers, two connection options are available. In the first option, a pair of woofers connected in parallel is powered by a common LPF filter from a single SHX-2WX crossover. The second pair operates in the same manner.

In the second option, each woofer is powered independently by a separate LPF filter from four SHX-2WX crossovers. This option is more neutral sonically because the 3 Ohm impedance of each woofer connected to a separate crossover does not change the LPF crossover point.

In both variants, the SX-SAT mid-range/tweeter system should be powered by two separate SX-2WX crossovers.

Important Installation Information

Crossovers are essential for the proper operation of the midrange and tweeters. They protect them from signals that are too low in frequency. Connecting these speakers without crossovers can permanently damage the voice coils. Such damage is not covered by the warranty.

Depending on the mounting location, speaker orientation, and distance from the listener, changing the polarity of the midrange or tweeters may help improve response alignment around the crossover point.

Optional Excursion XLR resistive attenuators can be used to reduce the signal level of the midrange or tweeters by 2 to 10 dB. For a 1.5 Ohm configuration, use an appropriate amplifier.

• 2 sets of SX-SAT mid-high frequency speakers,

• 4 165 mm SHX-6M woofers,

• 2 SX-2WX passive crossovers for mid-range and tweeters,

• 4 SHX-2WX passive crossovers for woofers,

• 2 MDF mounting panels for permanent installation of the SX-SAT set,

• cables and mounting screws,

• user manual,

• Excursion logo sticker.

Why choose the Excursion SHX-6.3C dB?

The Excursion SHX-6.3C dB is a set for people who want combine the advantages of a 3-way system with the powerful bass of the double bass version. Four 165mm woofers deliver a distinct punch, while the SX-SAT section enhances the soundstage, vocals, and treble detail.

This is a solution for more powerful car audio installations where dynamics, efficiency, space, and a strong bass foundation are key.
