Press and Puller for Bearing Bushings and Control Arms - Set

21 PARTIAL UNIVERSAL PULLER FOR PINS, BUSHINGS, CONTROL ARM JOINTS, BEARINGS IN KNUCKLES

Professional puller for pressing out suspension pins and bushings without having to dismantle the component.

Packed in a functional and aesthetic suitcase.

Designed for quick and easy replacement of control arm joint bushings. Eliminates the need to remove the rear or front control arm beam.

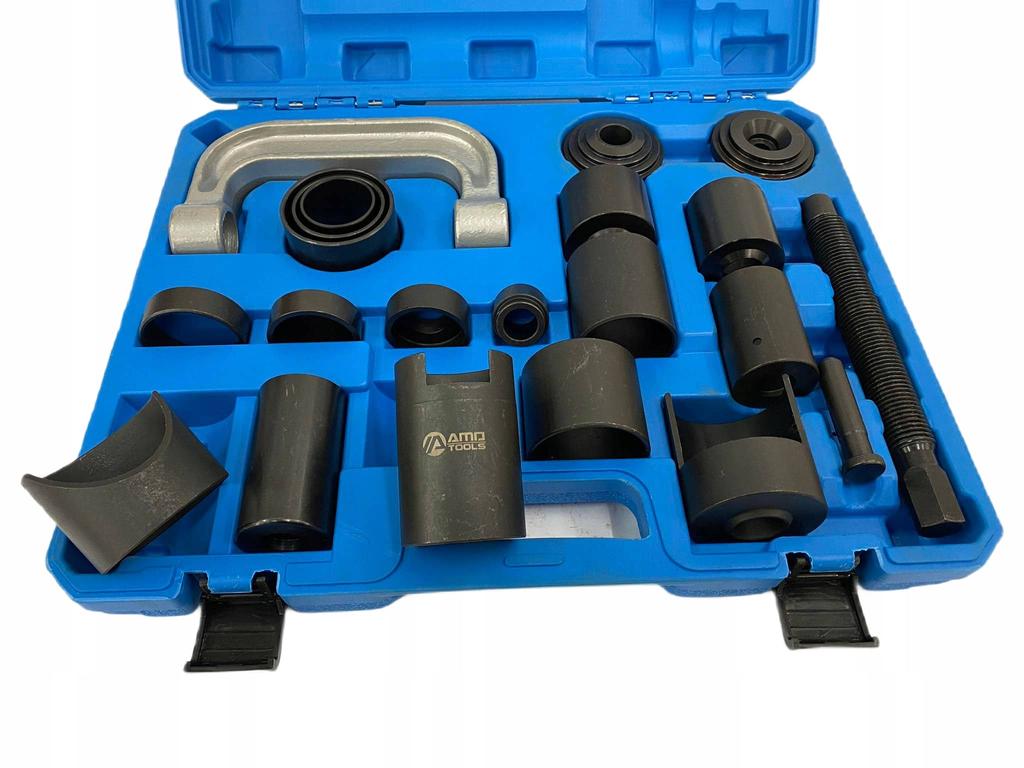

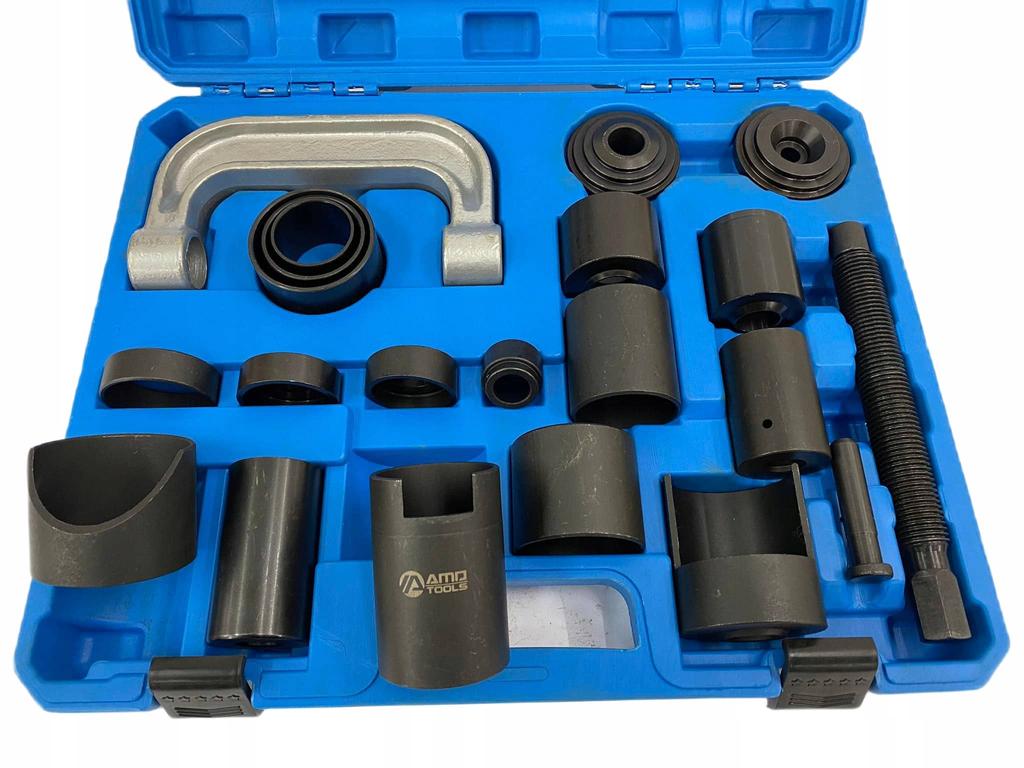

⬇️ The set includes:

✅ 1 x Screw press - screw with a diameter of 28mm, wrench 22

✅ 2 x discs for mounting bushings

⬇️ Bushings with dimensions:

✅ Inner diameter 23.0mm / outer diameter 37.0mm / height 23.0mm

✅ Inner diameter 45.0mm / outer diameter 51.0mm / height 45.0mm

✅ Inner diameter 45.0mm / outer diameter 51mm / height 94mm

✅ Inner diameter 46.0mm / outer diameter 50mm / height 74mm

✅ Inner diameter 46.0mm / outer diameter 54.0mm / height 25mm

✅ Inner diameter 48.0mm / outer diameter 57.0mm / height 21.0mm

✅ Inner diameter 51.0mm / outer diameter 57.0mm / height 60mm

✅ Inner diameter 55.0mm / outer diameter 63.0mm / height 92mm - with a 75.0mm cutout

✅ Inner diameter 56.0mm / outer diameter 64.0mm / height 70mm

✅ Inner diameter 57.0mm / outer diameter 63.0mm / height 20.0mm - with a cutout

✅ Inner diameter 57.0mm / outer diameter 63.0mm / height 45.0mm

✅ Inner diameter 57.0mm / outer diameter 63.0mm / height 48.0mm - with cutout

✅ Inner diameter 62.0mm / outer diameter 70.0mm / height 58.0mm - with cutout

✅ Inner diameter 68.0mm / outer diameter 73.0mm - undercut height 30.0mm / total height 83.0mm

✅ Inner diameter 69.0mm / outer diameter 76.0mm - undercut height 31.0mm / total height 58.0mm

✅ Inner diameter 69.0mm / outer diameter 76.0mm / height 55.0mm

✅ Pin with a diameter of 16mm and a length of 75mm

✅1 x Solid case

✔ Lubricate the thread with grease

✔ The puller is placed in a solid case that protects the tool against mechanical damage.

⭐ PRODUCT WORTH RECOMMENDING ⭐

Do not use electric wrenches, impact wrenches or pneumatic wrenches.

New sleeve, the pin must be correctly positioned in all directions

Make sure that the socket in the swing arm is free from corrosion and dirt.

of the tool.

Make sure the set screw is clean and lubricated.

MAXIMUM RECOMMENDED TORQUE UP TO 180NM

I invite you to purchase.

I issue invoices on request.

AMD TOOLS - Is a manufacturer of automotive tools, automotive is our passion, we support and actively participate in car racing.

The AMD TOOLS brand meets expectations professionals.
