REAR REVERSE PARKING SENSORS SET 4x SENSOR LCD DISPLAY

The innovative parking assist system is based on advanced ultrasonic technology, designed specifically for cars. Its main task is monitoring the space behind the vehicle during a reversing maneuver and giving audible warnings if an obstacle is detected.

Although the system effectively assists the driver when reversing , it does not relieve the driver of the need to exercise particular caution and full attention.

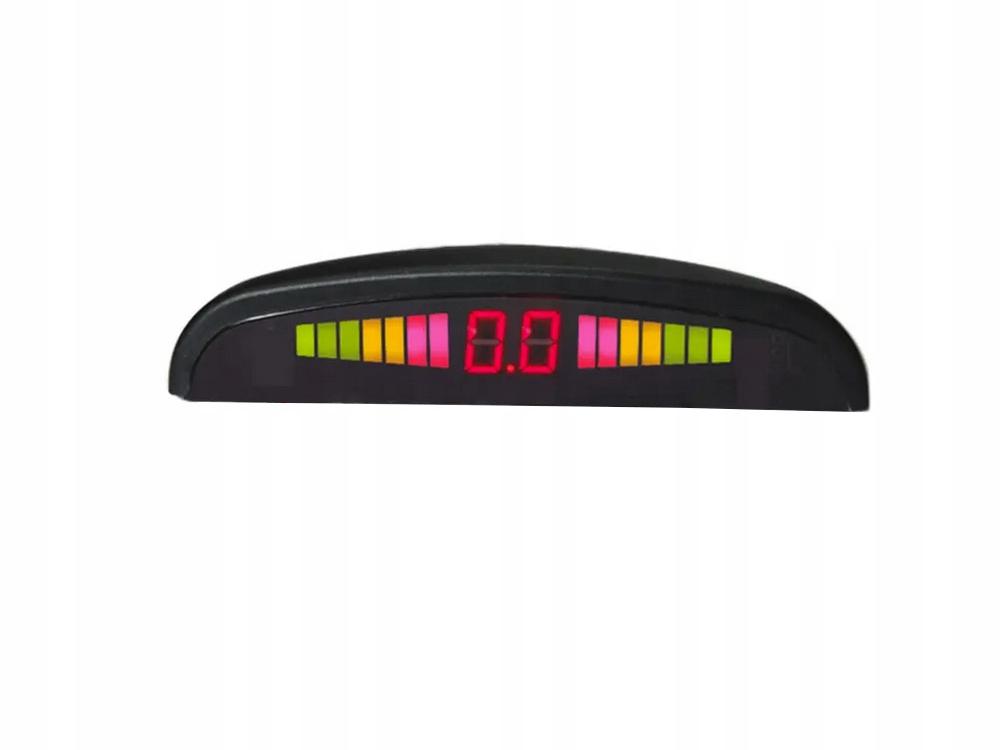

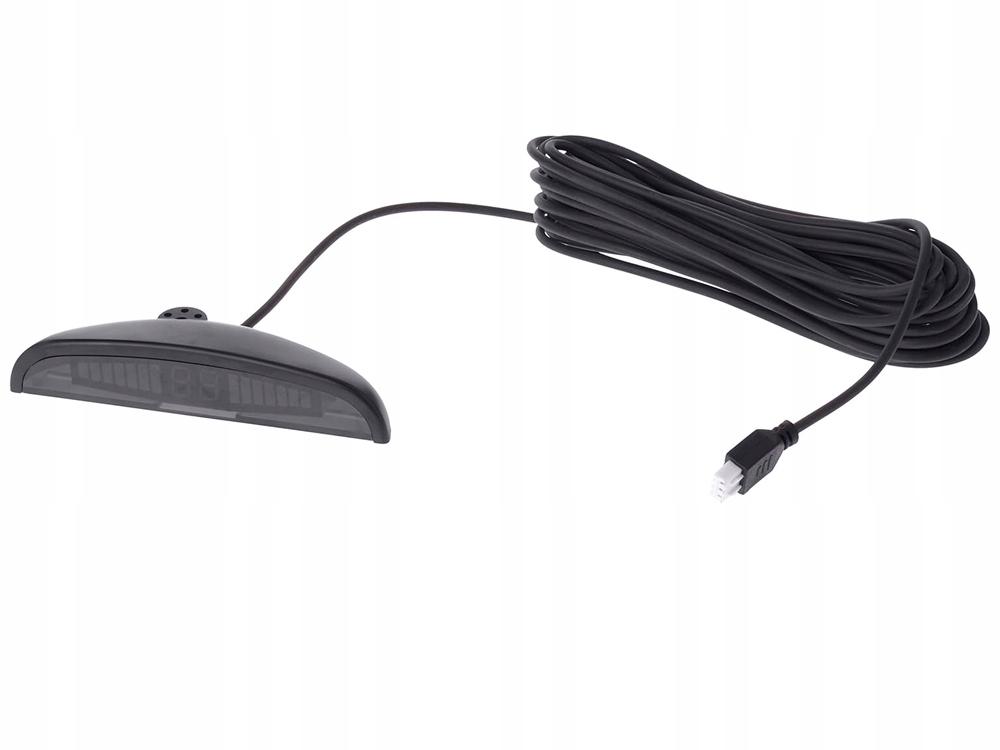

The LED panel provides the driver with data regarding the obstacle , including both the distance and the specific location. Distance information is presented numerically on the display, which covers a range from 0.0 meters to 2.5 meters .

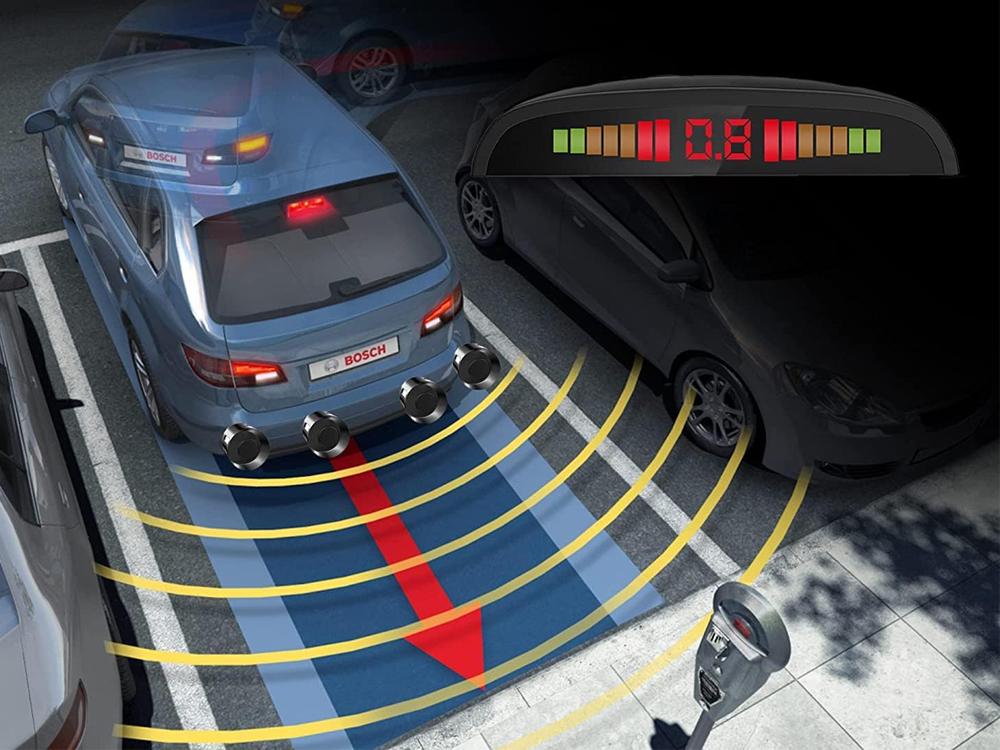

The system automatically activates when engaging reverse gear simultaneously with the reversing lights coming on. As the vehicle approaches an obstacle, the driver is immediately informed of its location (whether it is on the right or left side of the vehicle) via colored indicators on the panel.

Additionally, an audible signal is activated, which is emitted from a piezoelectric transducer, offering four different frequencies depending on the distance. The set includes a

special drill , which allows you to make perfect holes in your car without fear of damaging it. The sensors have been configured to precisely

detect even small obstacles, such as parking bollards, city barriers, or high curbs. MEASUREMENT ZONE:

1st zone: >250cm ✅

2nd zone: 160-250cm ✅

3rd zone: 100-150cm ✅

4th zone: 70-90cm ✅

5th zone: 40-60cm ✅

6th zone: 0.3-0.0 m TECHNICAL SPECIFICATIONS:

✅ Product code:

High quality workmanship ✅

Sound obstacle signaling ✅ Simple assembly

✅ Rated voltage: DC 12 V

✅ Operating voltage: DC 10.5 - 16 V

✅ Supply current: 40-300mA

✅ Obstacle detection distance: 0.3 - 2.5 m

✅ Ultrasonic frequency: 40 Khz

✅ Device operating temperature: -40°C~+80°C

✅ Display operating temperature: from 0°C to +60°C

✅ Number of sensors: 4pcs

✅ Drill with hole saw for drilling holes

✅ Color: black ✅ The product is

10cm x 2.5cm x 2cm

✅ Power supply dimensions: 7cm x 5cm x 1.7cm

✅ Sensor cable length: approx. 2.3 m

✅ LED display cable length: approx. 4.9cm

✅ Power cable length: approx. 75 cm

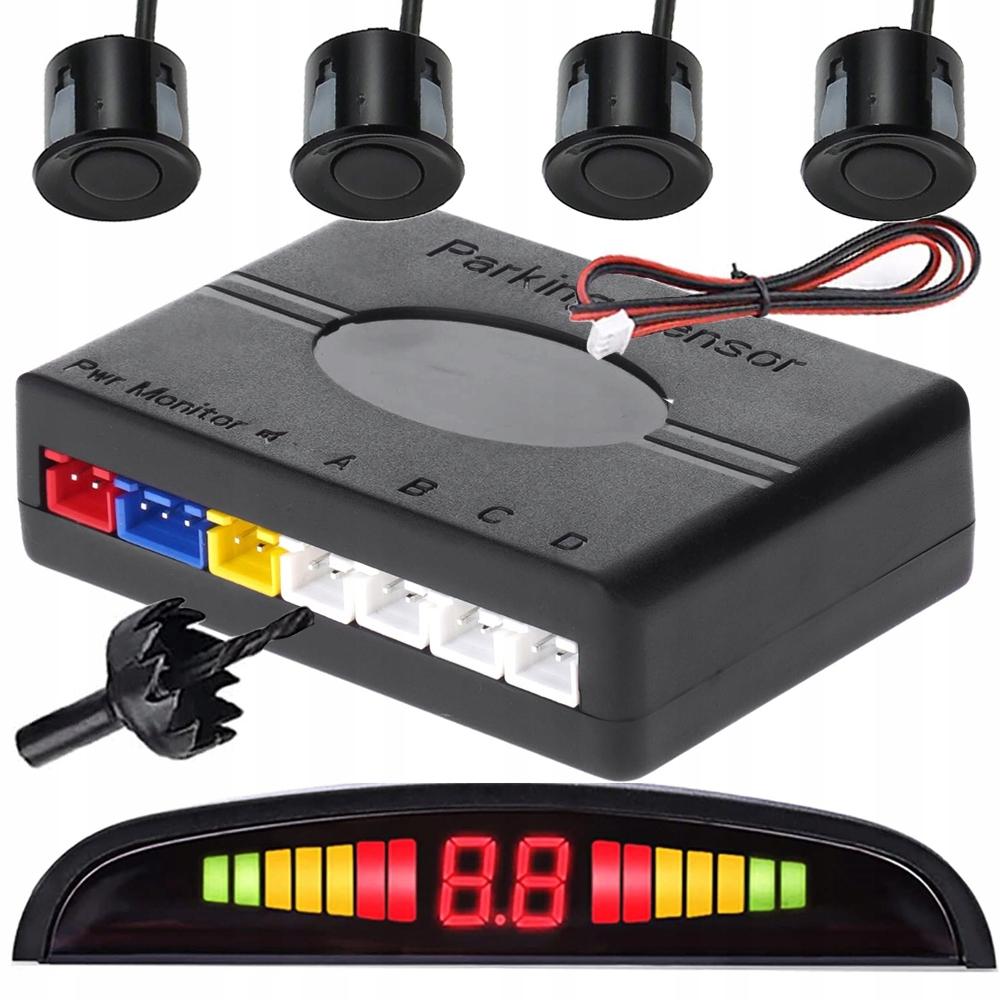

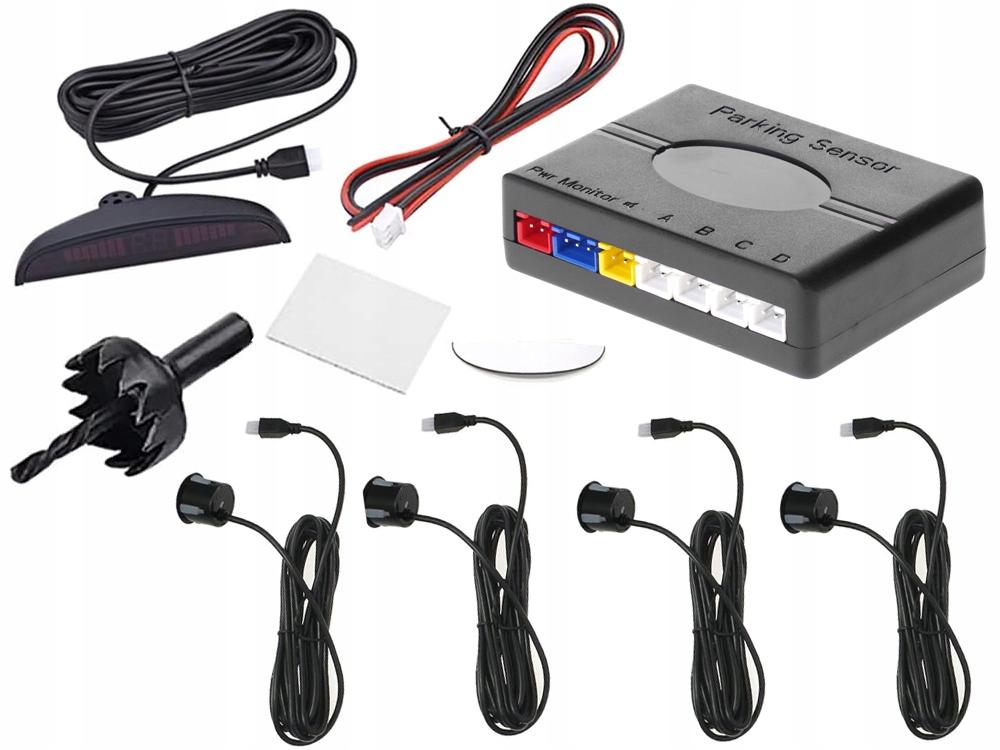

☑️ Sensors 4 pcs

☑️ LED display

☑️ Control unit

☑️ Drill with hole saw

☑️ Power cable

☑️ Self-adhesive elements 2 pcs

☑️ Original packaging

DIMENSIONS: ✅ Display dimensions: THE KIT INCLUDES: ☑️ Brand new parking sensor set
