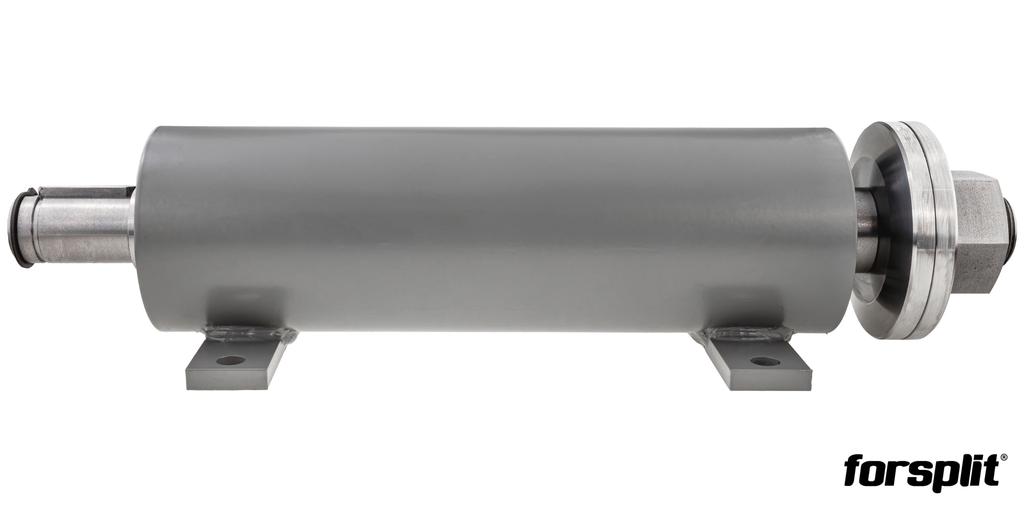

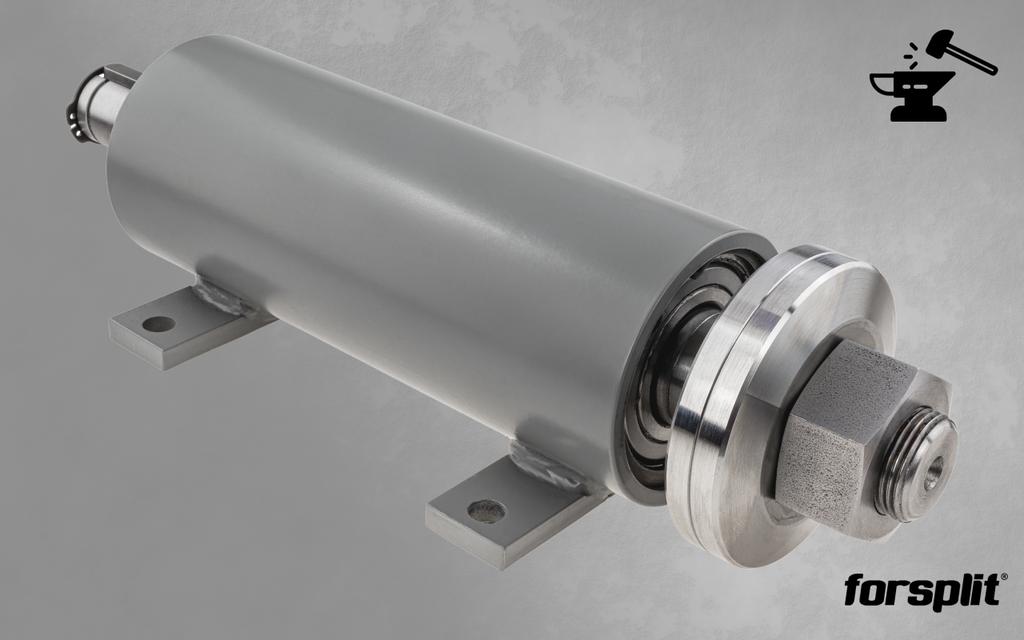

Circular Saw Shaft (Circular Saws / Cutting Blades) on a Steel Hub
The sale is for a circular saw kit based on a thick-walled steel hub and 6207ZZ bearings. Shaft with a length of [o_param|Length], output for a circular saw [o_param|Diameter for the saw] secured with a nut M30x2 ([o_param|Thread direction] thread) and two saw clamps with a diameter of 90mm.
Output for a pulley with a diameter of [o_param|Diameter for the pulley] / key 8mm - fits pulleys 2x13mm or 2x17mm, secured with a seeger!
The presented set was developed on the basis of experience and manufactured entirely in our company from certified materials, which ensures failure-free operation for many years.
✅ The hub structure is made of a thick-walled tube, based on SOLID proven bearings,
✅ You buy directly from a POLISH MANUFACTURER, without intermediaries!
✅ All elements are turned and milled are made in our company, by POLISH employees under strict quality control - by purchasing our set you support the Polish economy,
✅ Very good value for money.
➡️ Technical Data
Set [[o_param|Model]]:
✔️ Total length: [o_param|Length]
✔️ Diameter for circular saw: fi [o_param|Diameter for saw]
✔️ Diameter for pulley: fi [o_param|Diameter for pulley]
✔️ Diameter of clamps: fi 90mm
✔️ Clamp nut: M30x2 / [o_param|Thread direction] thread
✔️ Spacing of mounting holes: [o_param|Spacing of mounting holes]
Shaft [WP-350-30-L]:
✔️ Material grade: Experimentally selected high-strength CHROME STEEL ⭐⭐⭐⭐⭐
✔️ Shaft length: [o_param|Length] (we offer shafts with lengths: 250, 300, 350, 400, 450, 500 )
✔️ Diameter for circular saw: fi [o_param|Diameter for saw]
✔️ Diameter for pulley: fi [o_param|Diameter for pulley]
✔️ Diameter for bearings: fi 35mm
✔️ Thread: M30x2 [o_param|Thread direction]
• Housing length: [o_param|Housing length] with two built-in solid 6207ZZ bearings,
• Housing diameter: fi 82mm
• Housing height: 88mm
Customers usually choose a 2x17mm pulley with a diameter of 90mm [2X17-090-28].
To search for the right wheel - Click "All seller's items" and enter e.g. "2X17-090-28" in the search engine (where: 2X17 means two 17mm strips, 090 means the wheel diameter, 28 means the diameter of the shaft).
➡️ Why Our Country is the Most Popular
⭐ Directly from the manufacturer ⭐
✅ Well-known Polish Product: We help our clients in wood processing from 2008❗ Statistics show that within a 10km radius of any point on the map there are at least 5 of our woodworking machines operating! See the map below >
✅ An investment for years: A set designed and made in Poland, from the highest quality materials, by experts you can trust.
✅ You support the Polish economy: Our products are entirely turned and milled in a Polish company from European materials.
⭐ High quality workmanship ⭐
✅ Modern production: Our company uses the latest technologies and machines. We operate in accordance with the ISO 9001 Quality Policy, so you receive the highest quality product.
✅ Durable materials: Expertly selected high-strength chrome steel makes our product extremely efficient and durable.
✅ Complete satisfaction: We are confident in our products, that's why we guarantee 100% satisfaction or your money back!
⭐ Solid construction ⭐
✅ Steel hub: Bearings embedded in a thick-walled steel hub, providing reliability and many years of trouble-free operation.
✅ Reliable durability: Properly selected chrome steel withstands intensive use, providing a longer tool life.
⭐ Profitability ⭐
✅ You save money: You buy without intermediaries at the best price on the market, our product is excellent investment.
✅ Low operating costs: In the event of damage, you only replace the component, which significantly reduces operating costs.
✅ Available parts: Spare parts are easily available, ensuring continuous operation without unnecessary downtime.
Join the ranks of our satisfied customers and enjoy efficient, reliable operation for many years.
We ship our goods worldwide!
➡️ Our Customers' Opinions
✴️ "Amazing. Solid, massive, replaceable auger tip. Guaranteed 100% satisfaction. Highly recommended."
✴️ "One of the most sensible expenses in my life. Proper technique and I split stumps with a diameter of 90 cm."
✴️ "A very solidly made log splitter that works very well ,can easily handle carps up to 40 cm in diameter, so I recommend buying it."
✴️ "Top-notch workmanship, I assembled the whole thing, tested it, and put the axe away in the corner."
✴️ "Super quality and workmanship. Very well packed and secured."
➡️ FAQ - Frequently Asked Questions
❓ 1. When to choose a shaft with a left-hand thread or a right-hand thread?
• Choose a left-hand thread if the circular saw is to rotate clockwise (when viewed from the nut side).
• Choose a right-hand thread if the circular saw is to rotate counterclockwise (when viewed from the (nut).
❓ 2. What should the linear speed of the circular saw be?
The recommended linear speed for circular saws for cutting wood depends on the type of wood (dry or green) and the specifications of the blade itself. Generally accepted values are as follows:
1. Cutting dry wood:Linear speed: from 50 m/s to 100 m/sHigher speeds (closer to 100 m/s) are preferred for larger diameter saws and more precise cuts. This makes it easier to obtain a smooth cut surface and increases work efficiency.
2. Cutting green (wet) wood:Linear speed: from 40 m/s to 70 m/sSpeeds are slightly lower because green wood is softer and stickier. Operating at a lower speed reduces the risk of jamming, heating, and clogging of the blade due to resin and moisture.
These speeds may vary depending on the type of machine, blade material, number of teeth, and tooth shape. It is also important to follow the recommendations of the circular saw and machine manufacturer to ensure safe and efficient cutting.
❓ 3. How to choose pulleys for a saw blade?
Depending on the diameter of the circular saw (including the recommended RPM) and the speed of the electric motor, the pulley configuration may vary. Below are some of the most popular configurations for an average linear speed of 55m/s:
Motor 1440 rpm:
• Saw 200mm 5250 rpm / Recommended pulleys (Cutter/Motor): 90/330 mm or 80/300 mm
• Saw 300mm 3500 rpm / Recommended pulleys (Cutter/Motor): 90/220 mm or 80/200 mm
• Saw 400mm 2630 rpm / Recommended pulleys (Cutter/Motor): 90/160 mm or 80/150 mm
• Saw 500mm2100rpm / Recommended pulleys (Cutter/Motor): 90/130 mm or 80/120 mm
• Saw 600mm1750rpm / Recommended pulleys (Cutter/Motor): 90/110 mm or 80/100 mm
• Saw 700mm1500rpm / Recommended pulleys (Cutter/Motor): 90/90 mm or 80/80 mm
Engine 2880 rpm:
• Saw 200mm 5000 rpm / Recommended pulleys (Cutter/Engine): 80/150 mm or 90/160 mm
• Saw 300 mm3300 rpm / Recommended pulleys (Cutter/Engine): 80/100 mm or 90/110 mm
• Saw 400 mm2500 rpm / Recommended pulleys (Cutter/Engine): 90/80 mm or 100/90 mm
• Saw 500 mm2000 rpm / Recommended pulleys (Cutter/Engine): 110/80 mm or 120/90 mm
• Saw 600mm1700rpm / Recommended pulleys (Krajzega/Motor): 130/80 mm or 150/90 mm
• Saw 700mm1400rpm / Recommended pulleys (Krajzega/Motor): 150/80 mm or 170/90 mm
To search for the right pulley in our offer - Click "All seller's items" and enter e.g. "2X17-090-28" in the search engine (where: 2X17 means two 17mm belts, 090 means the diameter of the pulley, 28 means the diameter for the shaft).
Our offer includes pulleys: 2x13mm or 2x17mm with a diameter of 60-200mm.
If you're not sure - we'll be happy to help you choose the right set.
➡️ Additional Information
We constantly have all the parts for building a circular saw / kerf saw for sale, i.e.:
• Shafts: 250 / 300 / 350 / 400 / 450 / 500
• Pulleys: 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 / 160 / 170 / 180 / 190 / 200 / 250 mm
• Circular saw blades
❗WE PROVIDE CONSTANT ACCESS TO SPARE PARTS❗
Brand: forsplit®
Model: [o_param|Model]
Our offer includes pulleys: 2x13mm or 2x17mm with a diameter of 60-250mm.
