Spin 235 Rotary Laser IP54 Auto Leveling RED 500m RC600MM

Spin 235 Rotary Laser IP54 Auto Leveling RED 500m RC600MM

• ➡️ Spin 235 Laser

• ⭐ Receiver with staff holder RC600MM

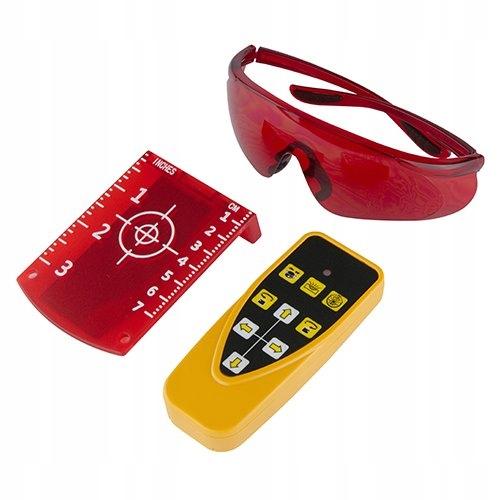

• ⭐ Radio Remote Control with LCD Screen

• ⭐ Target

• ⭐ Safety glasses

• ⭐ Charger

• ⭐ Multifunctional wall mount

• ⭐ Additional battery

• ⭐ Transport case

• ⭐ Instructions in Polish

☑️ Spin 235 rotation laser – precision and reliability for professionals

• ⭐ Beam color Laser: red

➡️ Spin 235 is a flagship rotation laser that will meet the expectations of the most demanding users.

☑️ Precision and accuracy

➡️ Thanks to the electronic compensator and advanced technology, the Spin 235 guarantees high measurement precision.

• ⭐ Accuracy:±0.75mm/10m

• ⭐ Slope determination: up to ±10% in one axis, up to ±16% in both axes

• ⭐ Automatic axis position correction

• ⭐ TILT function – detection of knocks

☑️ Functionality and ease of use

➡️ Spin 235 has been designed with intuitive operation and comfort of use in mind.

• ⭐ Backlit LCD screen for better visibility

• ⭐ Radio remote control with a range of up to 150 m

• ⭐ Possibility of cooperation with seven lasers simultaneously

• ⭐ Keyboard operation and Remote control

• ⭐ Adjustable head speed (0, 60, 120, 300, 600 rpm)

☑️ Durability and reliability

➡️ The solid construction allows for work in demanding construction conditions.

• ⭐ IP54 protection class - resistance to dust and splashes

• ⭐ Working range: up to 500 m with detector

• ⭐ Compensator range: 5°

• ⭐ Operating temperature: from -20°C to +50°C

☑️ Technical data

• ⭐ Horizontal and vertical accuracy: ±0.75mm/10m

• ⭐ Slope determination: up to 10% in a single axis, in total no more than 18% in both axes

• ⭐ Laser:Red

• ⭐ Compensator working range: 5o

• ⭐ Working range: up to 500m with detector

• ⭐ Head rotation: 0, 60, 120, 300, 600 rpm

• ⭐ Scanning angle: 0o, 10o, 45o, 90o, 180o

• ⭐ Laser diode: Visible light, 635nm

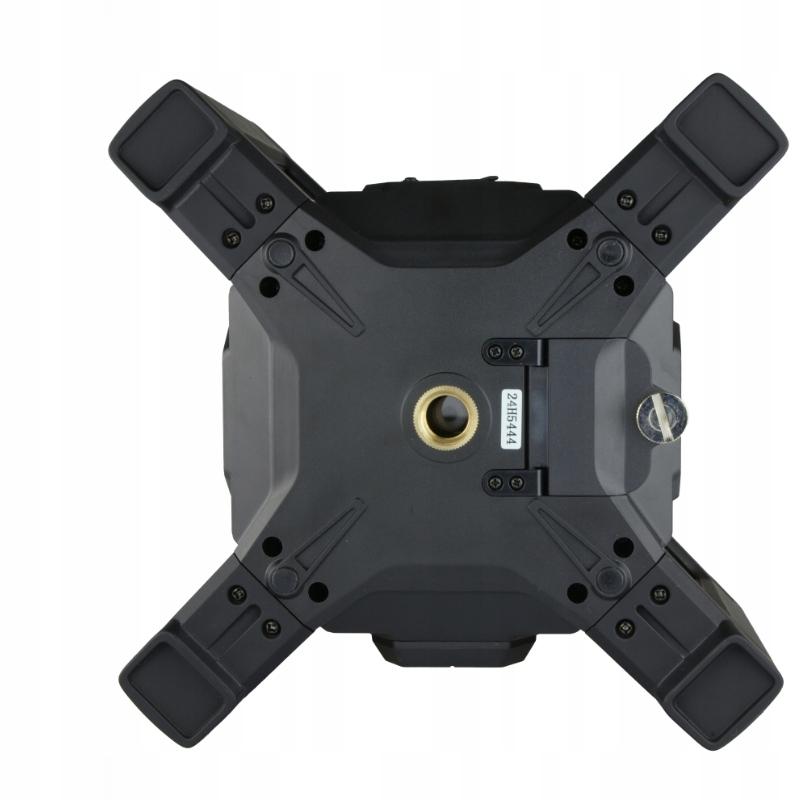

• ⭐ Tripod socket: 5/8"

• ⭐ Remote control range: about 150m

• ⭐ Operating temperature: -20oC-- +50oC

• ⭐ Power supply: Lithium-ion battery

• ⭐ Working time between charges: about 40 hours

• ⭐ Ingress protection class: IP 54

• ⭐ Dimensions: 160×160×190mm

• ⭐ Weight: 2.1kg

☑️ Applications of the Spin 235

➡️ The laser is perfect for various construction and installation works.

• ⭐ Earthworks: excavations, embankments, ground leveling

• ⭐ Surfaces: parking lots, roads, stadiums

• ⭐ Structure assembly: halls, suspended ceilings, partition walls

• ⭐ Installations: electrical, hydraulic, ventilation

• ⭐ Leveling: floors, screeds, height control

• ⭐ Landscape and garden: gazebos, lawns, paving stones

☑️ Features of the Lamigo Spin 235 Rotary Laser

• ⭐ Digitally adjustable dual slopes

• ⭐ Digital plumb line and horizontal line

• ⭐ Continuous monitoring and automatic correction of the axis position to the values ​​set on the screen

• ⭐ TILT function (detection of knocks).

• ⭐ Continuously displayed 90o angle and plumb line

• ⭐ Backlit screen

• ⭐ Operation via a radio remote control equipped with a screen LCD, with the ability to work simultaneously with seven lasers

• ⭐ Operation from the keyboard

• ⭐ Four-stage oscillation (scanning) function

• ⭐ Rechargeable and battery

• ⭐ Adjustable head rotation speed

• ⭐ Built-in laser plummet

• ⭐ Possibility of marking slopes

• ⭐ Designed for indoor and outdoor work buildings

RC 600MM with staff holder

➡️ Makes it easier to locate the laser beam, replacing the human eye. Designed for use with rotation lasers that emit red light, regardless of the manufacturer.

Equipped with a backlit display that shows deviation from the level in millimeters or inches, as well as an audible signal and a bubble level to help position the receiver correctly in the vertical position.

• ⭐ Laser sensor window height: 125mm

• ⭐ Accuracy: Precision mode: ±1.5mm; Coarse mode: ±2.5mm

• ⭐ Power supply: 9V battery (6F22)

• ⭐ Operating temperature: from -20℃ to +50℃

• ⭐ Dimensions: 165mm × 76mm × 35mm

• ⭐ Weight: 0.4kg (with battery)

W The set includes: ➡️ Laser Spin 235 ⭐ Receiver with staff holder ⭐ RC600MM ⭐ Radio remote control with LCD screen ⭐ Target plate ⭐ Protective glasses ⭐ Charger ⭐ Multifunctional wall mount ⭐ Additional battery ⭐ Carrying case ⭐ Instructions in Polish ...
