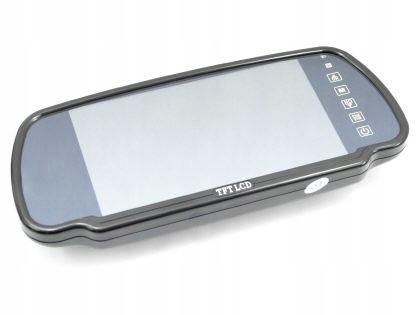

Car Monitor 7" 12-24V Ca 700 Ahd

Universal, 7-inch LCD monitor with support for high-resolution AHD cameras.

Installation of the monitor is completely non-invasive to the car's interior, as the device mounts to the factory rearview mirror. In addition to its basic function, the device also serves as a rearview mirror.

The monitor has two S-Video inputs, allowing you to connect two independent video devices, such as a reversing camera or other. When using the device as a reversing monitor, connect the trigger to the reversing light - this way, the monitor turns on automatically when reverse gear is engaged.

A major advantage of the monitor we offer is that when connecting our cameras to it, there is no need for additional power supply for the camera, as the camera is powered by the monitor via the S-Video cable.

• TV system: PAL / NTSC (auto)

• Supported camera standards: CVBS (analog cameras), AHD 720p/1080p (high definition cameras)

• Display size: 7"

• Resolution: 1024 x 800

• Aspect ratio: 4:3 / 16:9 (selectable)

• Contrast 500:1

• Brightness: 450 cd/m2

• Inputs: 2 x S-Video (SVHS)

• Operating temperature: -20 ~ +70

• Power supply: DC 12-24V

• Power consumption: approx. 6W

• Camera options: On-screen menu, Image rotation, Remote control, Brightness and contrast adjustment

• Dimensions: 248 x 106 x 28mm

• Operating temperature: -20 ~ +70
